Results tagged #Preamplifier in Circuits

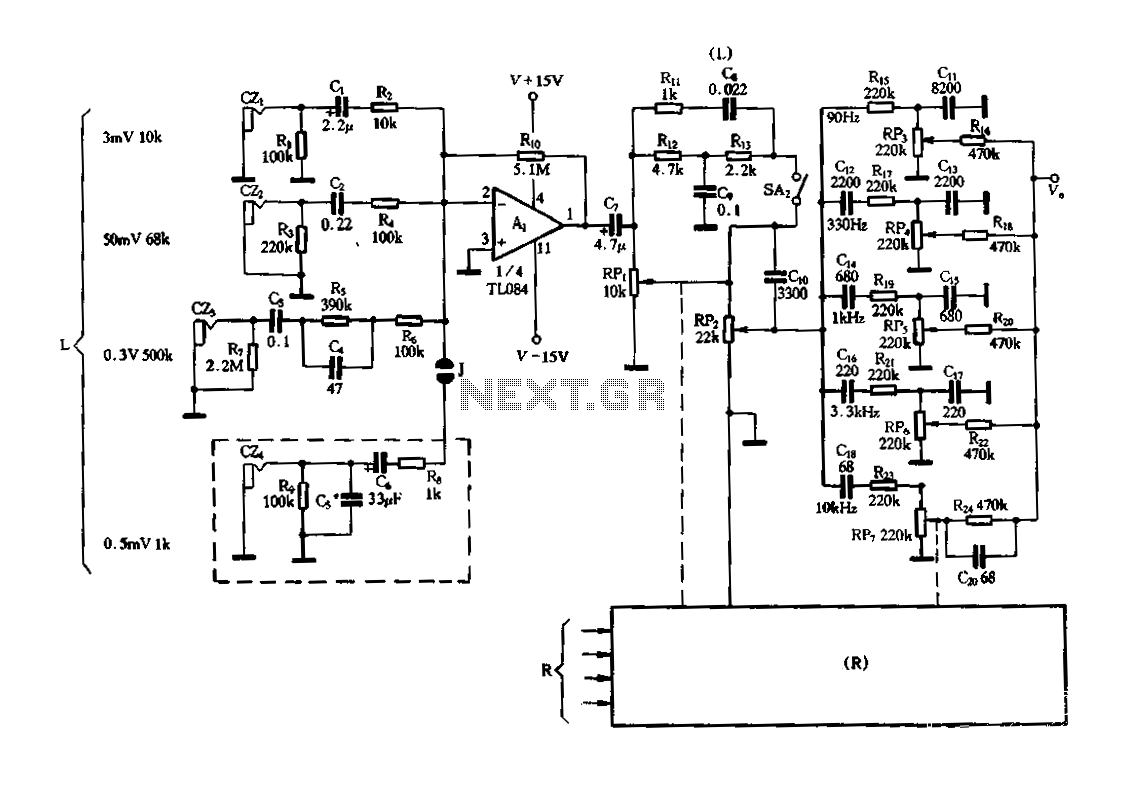

There are preamplifier with four inputs

Figure 3-25 is a hybrid having four input preamplifier, in the circuit, cZ1, cz, C23 and cz4 respectively, can enter the microphone, line, p...

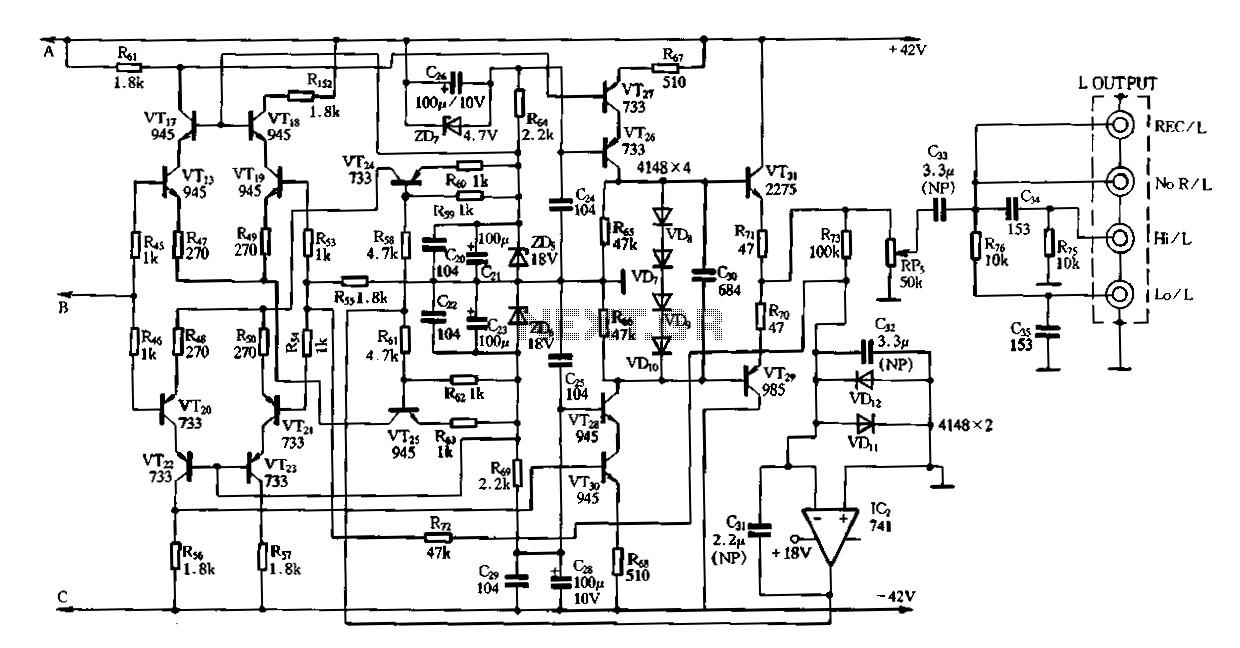

Vanda F-9500A preamplifier b

Figure 3-2 (b) is the second half of the circuit, VT17 ~ VT31 group into power amplifiers, pre-amplifiers, and it is a structure composed of...

Low-noise pre-equalizer circuit

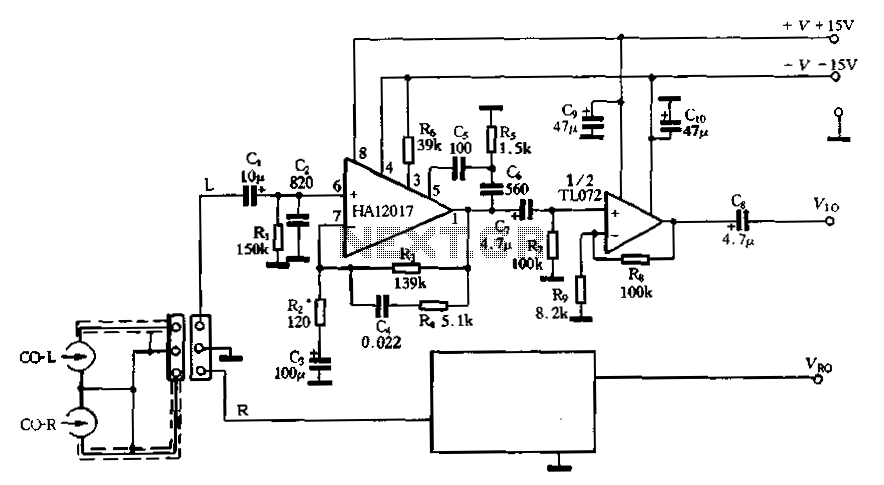

Figure 3-16 is a low-noise preamplifier equalizing HA12017 consisting playback circuit, the circuit R3, R4 and C4, in line with standard mag...

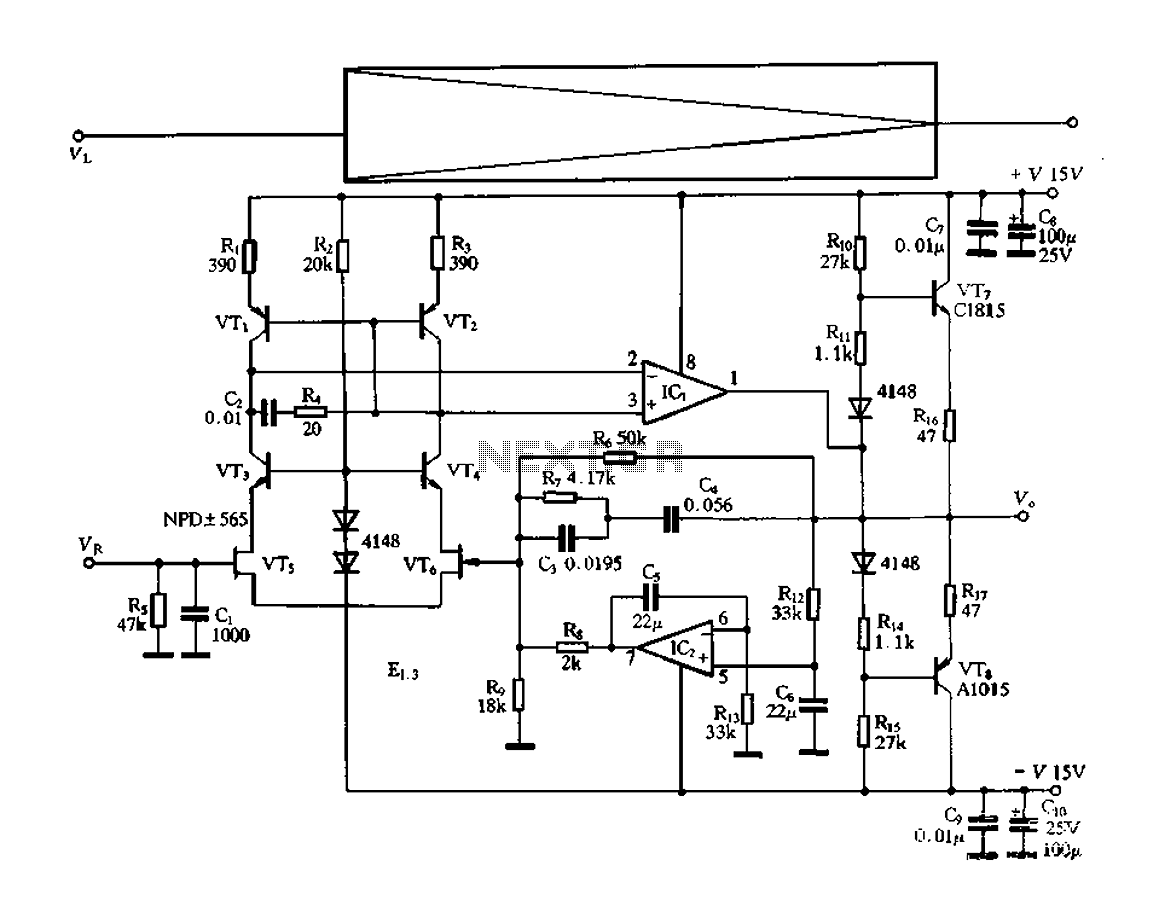

Electronic switching preamplifier

Electronic switch is a multifunctional preamplifier. It consists of five-way touch electronic switch, high-speed DC servo RIAA ultralow dist...

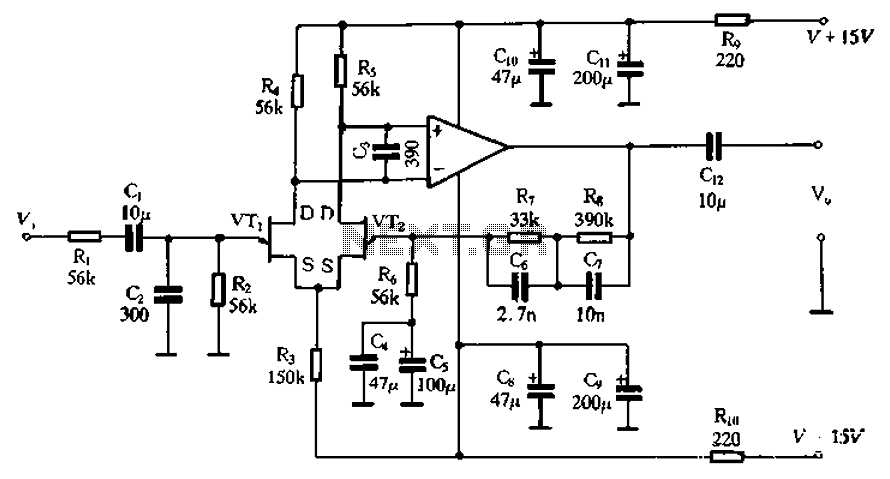

High-quality low-noise preamplifier

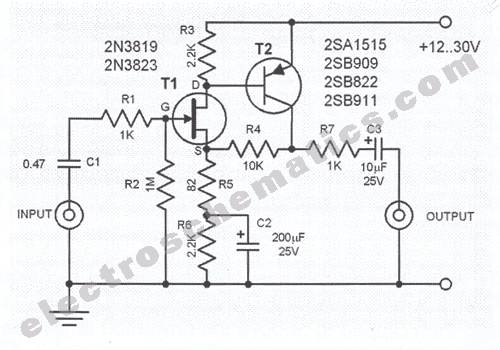

Circuit shown in Figure 3-8. Input signal through a low pass filter to the input of the differential amplifier FET former composition are e...

High-quality preamplifier

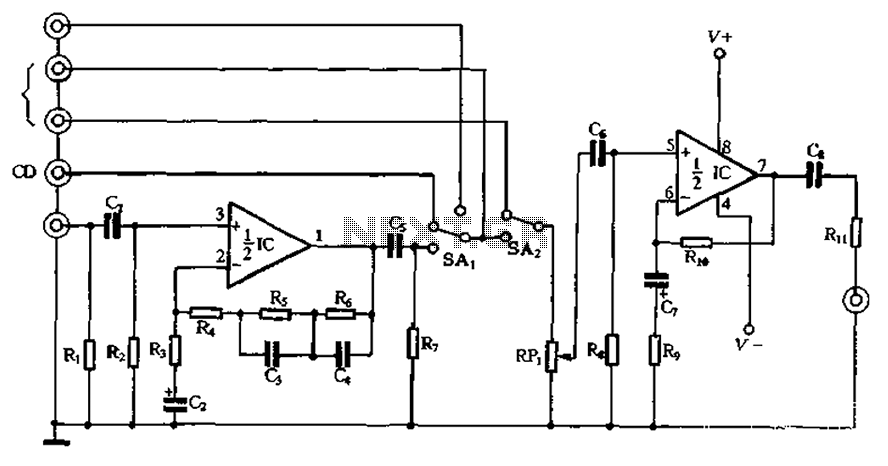

Circuit shown in Figure 3-10. This is a multi-function input with a preamplifier, including the tuner input, a magnetic tape playback input...

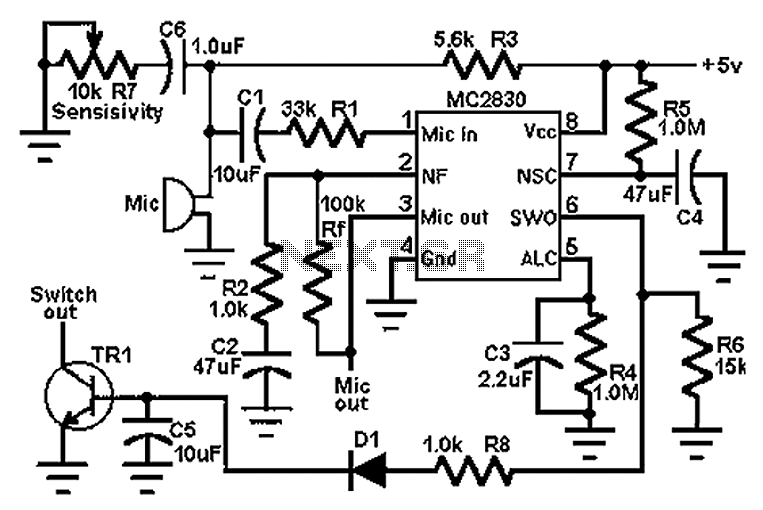

Low noise preamplifier circuit diagram of the speech

Circuit schematic as shown below, using the MC2830 voice circuit is formed. Traditional voice circuit can not distinguish between speech an...

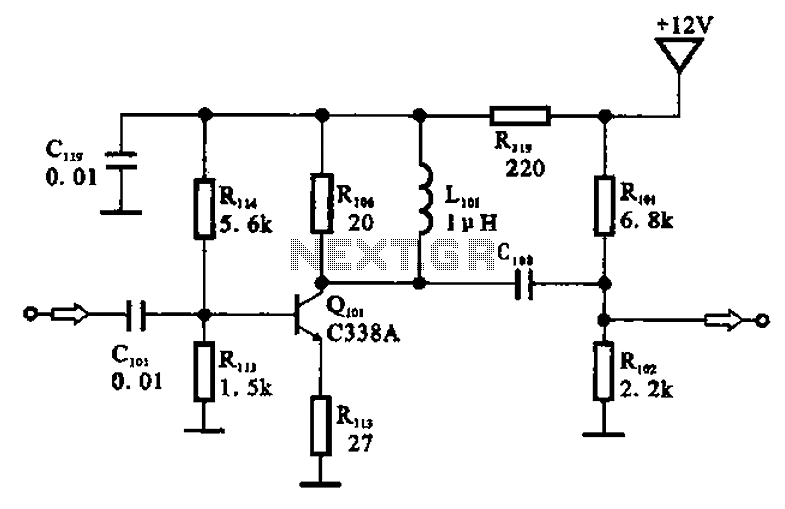

TV preamplifier circuit

Amp circuit as shown in the pre-television. The pre-amplifier circuit is Qioi and other parts of xlol. Q [ol and biasing element is configur...

Human biological signals consisting of a preamplifier circuit INA102

Shown for the human biological signals preamplifier circuit. In the medical equipment often need to measure the bodys biological signals suc...

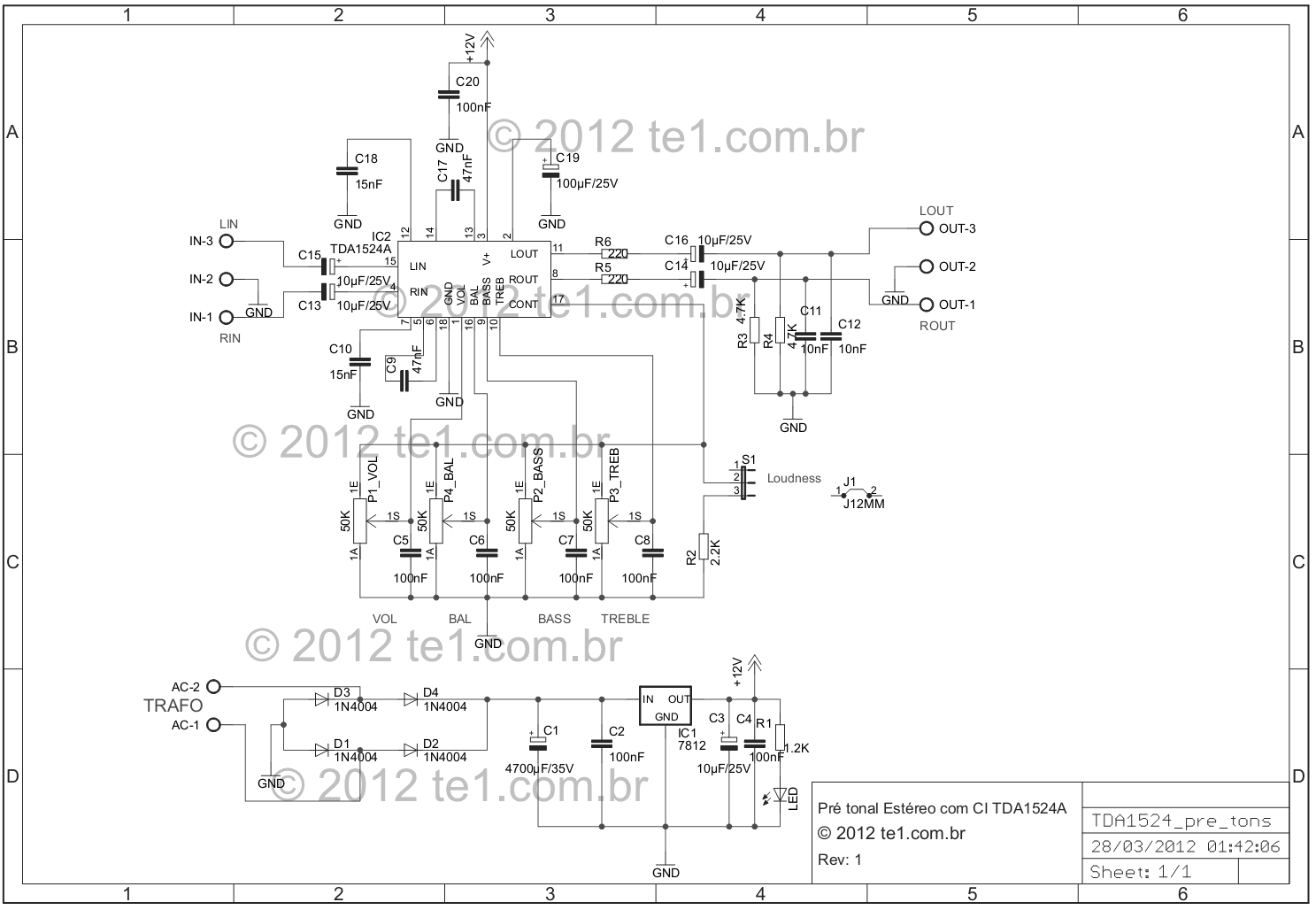

preamplifier stereo tda1524a bass treble schematic

...

Dynamic mic preamplifier circuit

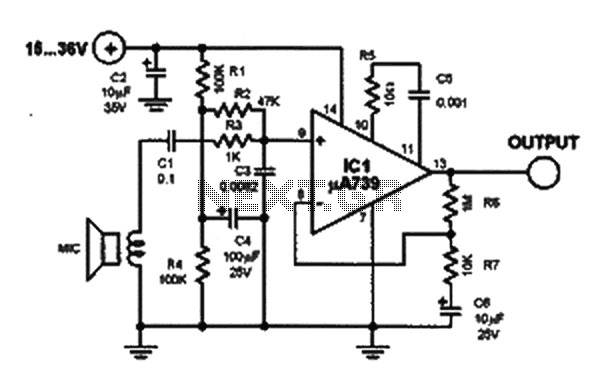

This mic preamp uses the low noise IC uA739. The circuit is an example of how a good preamplifier can be designed for dynamic microphones. T...

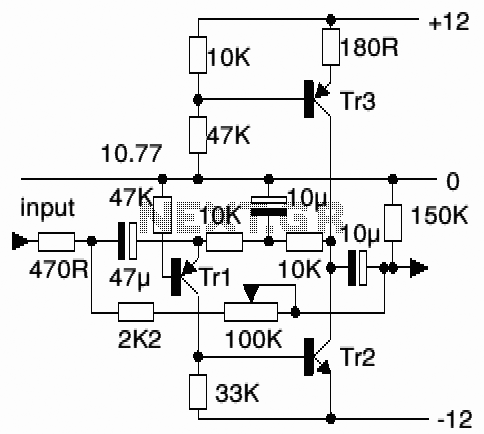

Audio preamplifier circuits

Electronics Circuits Reference Archive Audio preamplifier circuits There are thousands of pre-amplifier circuits. These are three which have...

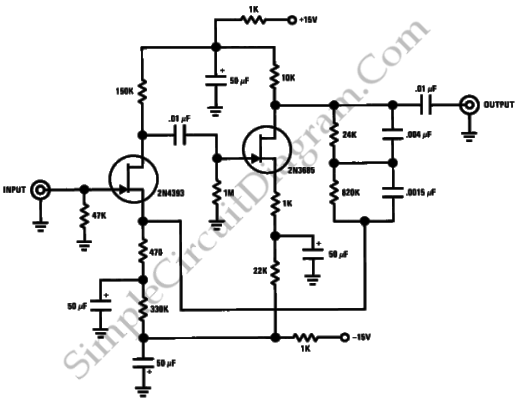

Magnetic-Pickup Phono Preamplifier

This is a simple circuit of magnetic pickup phono preamplifier. A proper loading to a reluctance is provided by this circuit. Here is the ci...

Magnetic-Pickup Phono Preamplifier

This is a simple circuit of magnetic pickup phono preamplifier. A proper loading to a reluctance is provided by this circuit. Here is the ci...

Modular Audio Preamplifier

...

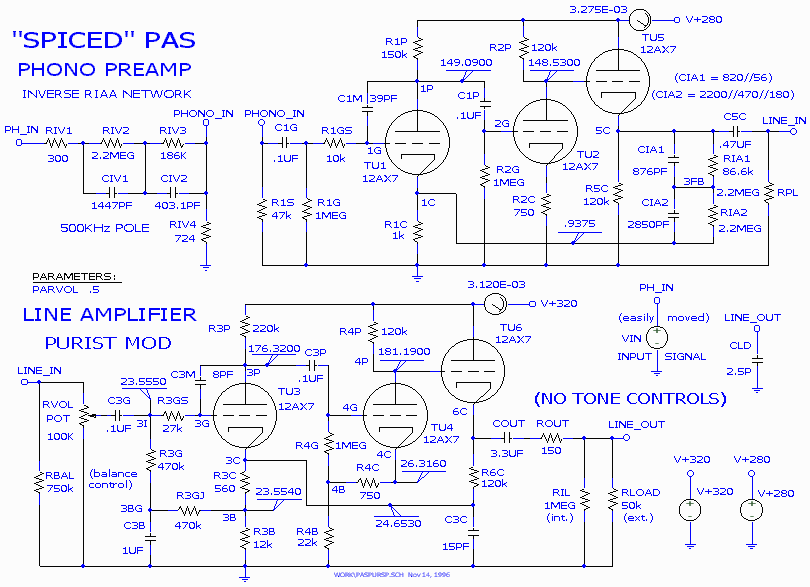

Spice and the art of preamplifier design

One of the principal choices in phono preamplifier design is between active (feedback) and passive equalization. The ideal feedforward pream...

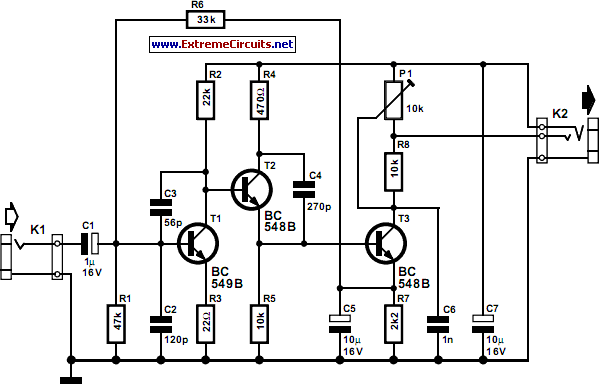

Preamplifier For Soundcard

This circuit can be used for inductive pick-up elements and dynamic microphones Most soundcards have a line` input and one for an electret (...

Moduler PreamplifierCircuit

To complement the 60 Watt MosFet Audio Amplifier a High Quality Preamplifier design was necessary. A discrete components topology, using + a...

Modular Preamplifier Switching Center

This module can be a necessary addition to the Modular Preamplifier Control Center when more than two sources need to be connected to the pr...

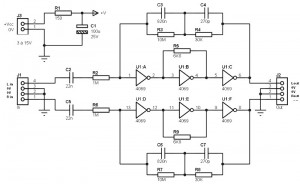

Simple RIAA Preamplifier using Logic IC CD4069

...

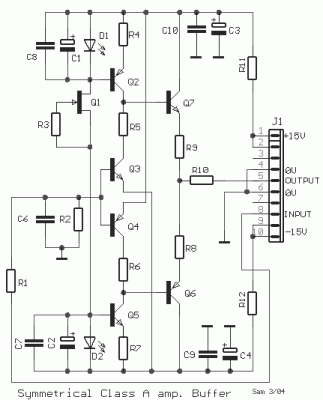

How to build Modular Class A Buffer preamplifier

A unit which is often very useful, if we need to isolate, in sound circuits, two stage between them. Then we can use this circuit which has ...

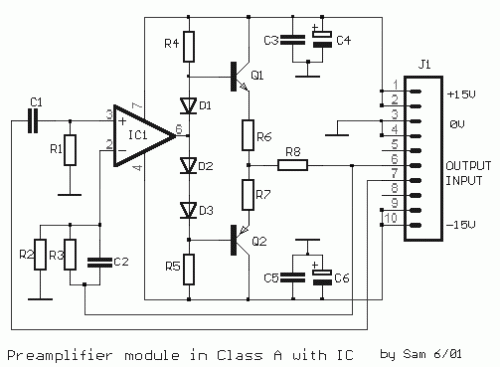

Class A Modular Preamplifier

...

Audio Preamplifier $2f Line Driver

...

Stereo Preamplifier with adjustment tone circuit

Many times we needed to use a simple circuit of preamplifier, with few components and facility of made. This circuit use a opamp. the Motoro...

Moduler Preamplifier Circuit

This Module employs an unusual topology, still maintaining the basic op-amp circuitry of the Main Module with a few changes in resistor valu...

Modular Class A Buffer preamplifier circuit

A unit which is often very useful, if we need to isolate, in sound circuits, two stage between them. Then we can use this circuit which has ...

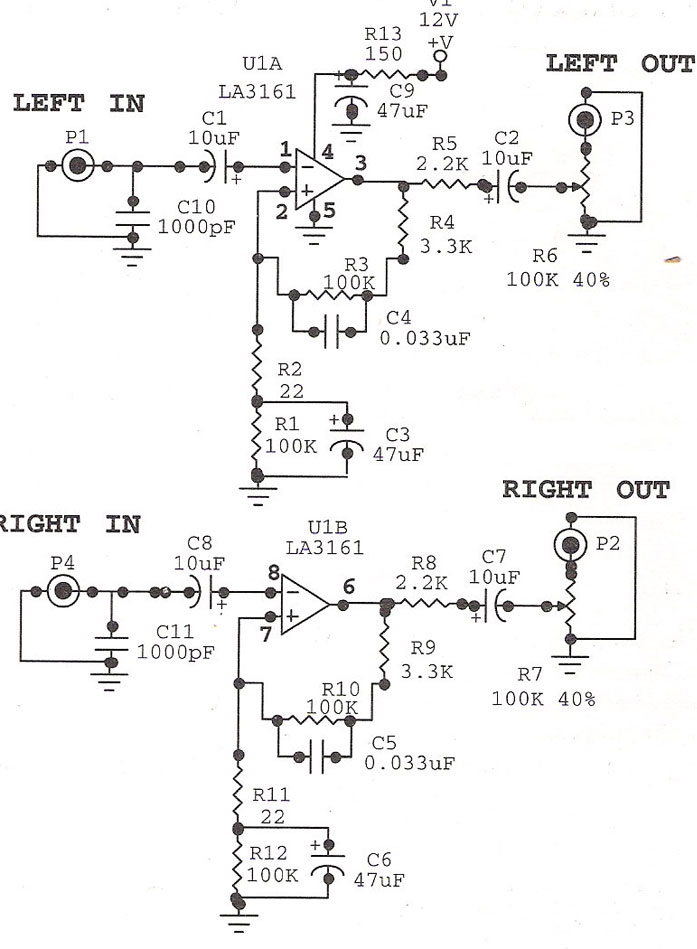

Preamplifier with LA3161

Preamplifier with LA3161 Preamplifiers are used to amplify low level signals such as those from mikes, tape heads before they are fed into p...

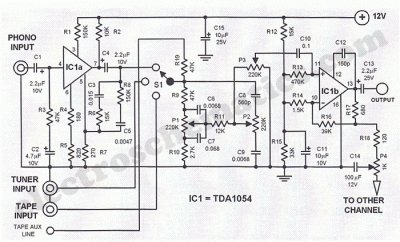

Audio Preamplifiers Projects and Circuit

This Hi Fi stereo preamplifier circuit is built with TDA1054 IC from SGS. TDA1054 is a 16-pin DIL package and integrates 2 separate preamp c...

Dynamic Mic Preamplifier Circuit

This mic preamp uses the low noise IC uA739. The circuit is an example of how a good preamplifier can be designed for dynamic microphones. T...

Class A Preamplifier Circuit

This class A preamplifier has been designed in a symmetrical structure. In the input differential stages we`ve used the dual transistors T1 ...

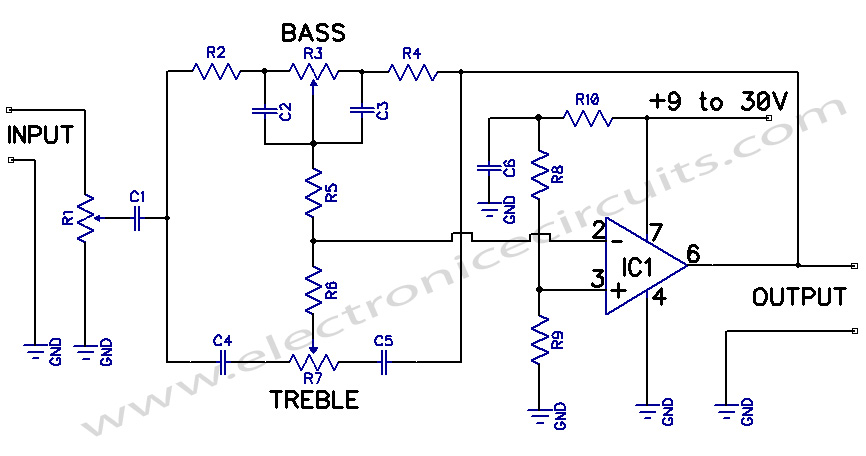

Tone Control

Bass Treble Tone Control Circuit A preamplifier circuit providing independent Bass and Treble tone controls is shown in this circuit. The.....

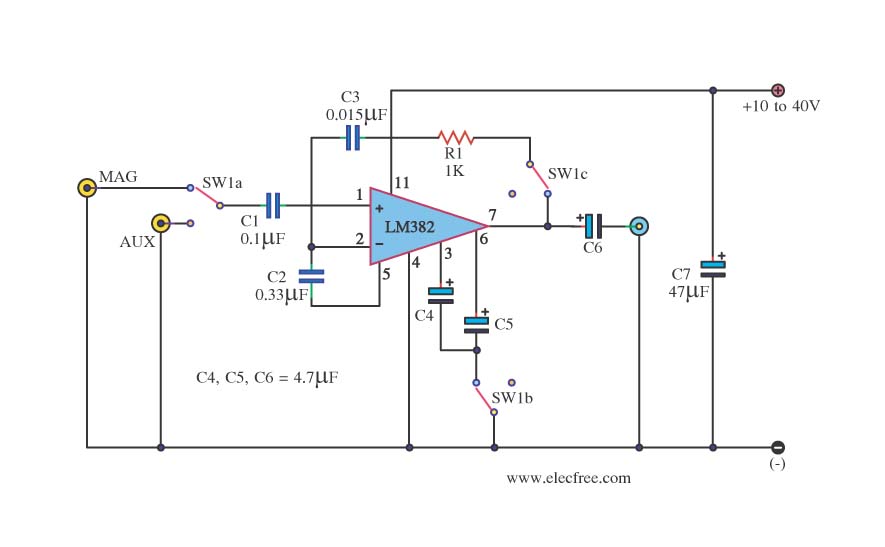

Simple Preamplifier by LM382

This be simple Preamp circuit. It can take sound general signal AUX and a signal from Microphone. For enlarge sound signal at the beginning....

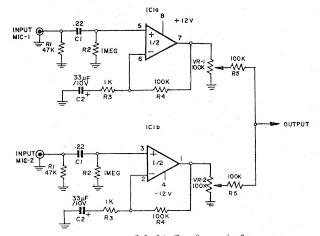

Pre MIC (microphone preamplifier) 2 CH by IC NE5532 or LF353

This be Pre Mic circuit or Microphone preamplifier circuit model 2 CH. By this circuit uses integrated number circuit NE5532 or LF353. It pe...

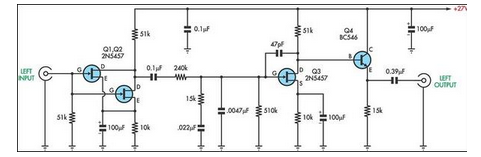

Passive RIAA Preamplifier

There are two types of preamplifiers for magnetic phono cartridges. An example of the most common type is the one described in the March 200...

Moduler PreamplifierCircuit

High Quality, Discrete Components Design, Input and Tone Control Modules To complement the 60 Watt MosFet Audio Amplifier a High Quality Pre...

Modular Preamplifier Switching Center

Four high level inputs, Double Bar switching This module can be a necessary addition to the Modular Preamplifier Control Center when more th...

Guitar Control

Stand-alone, 9V battery powered unit, Three-level input selector, three-band tone control This preamplifier was designed as a stand-alone po...

Balanced Microphone Preamplifier

The preamplifier is intended for use with dynamic (moving coilMC) microphones with an impedance up to 200 ? and balanced terminals. It is a ...

Hi-Fi Phono Preamplifier with RIAA Specification

The circuit was designed according to the RIAA implementation of Hi-Fi phono preamplifier for the purpose of reproducing an audio from a mov...

Class A-Designed Symmetrical Audio Preamplifier

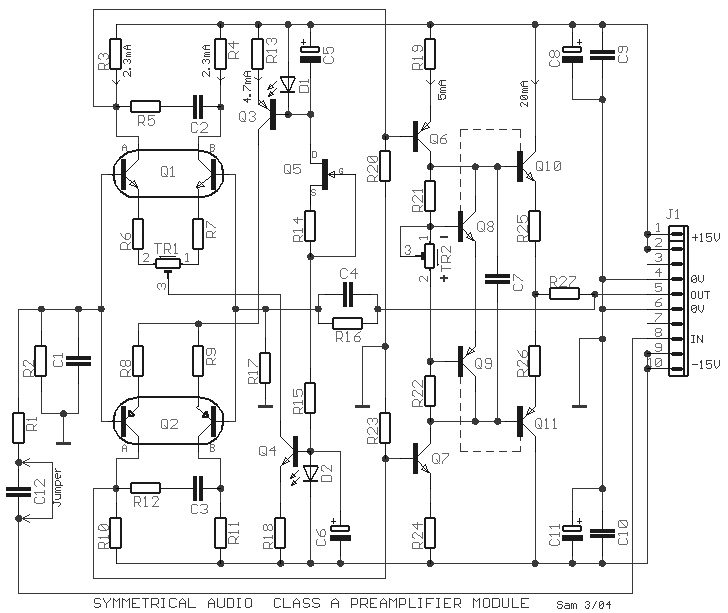

The circuit was designed to produce a preamplifier with symmetrical audio input while the output operates in Class A type. Preamplifier (pre...

amplifier circuit

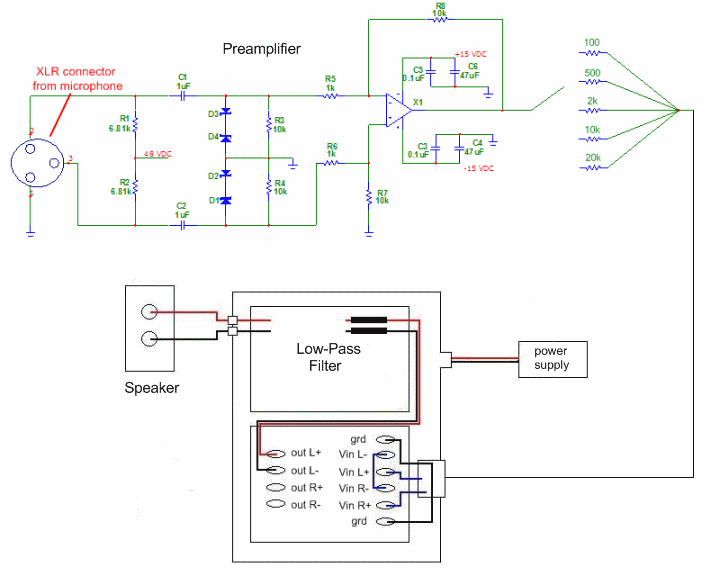

The XLR connector allows us to connect the microphone`s output to our preamplifier circuit. This preamplifier was designed and built by our ...

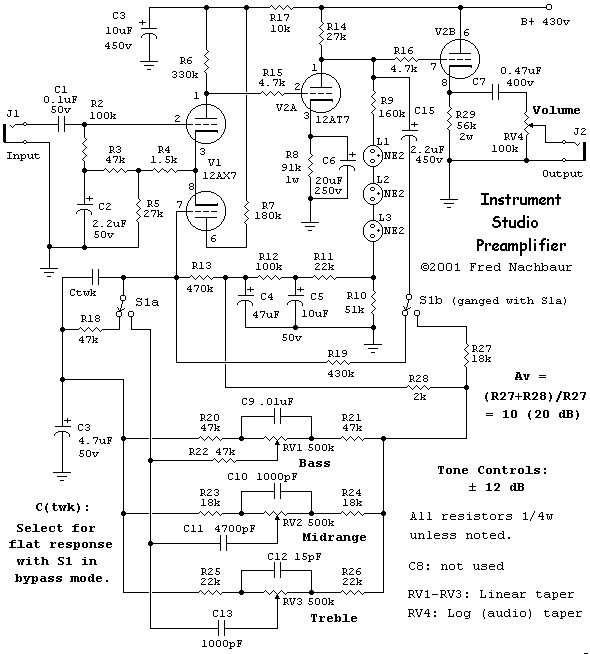

A Studio Preamplifier

The first was interested in a flexible preamp for use with a high-end acoustic guitar with piezo-electric bridge pickup, and the second want...

A receiving converter for 2320 MHz

The preamplifier is very simple. I used a Low Noise integrated circuit manufactured by Hewlett Packard. The device name is MGA86563. It has ...

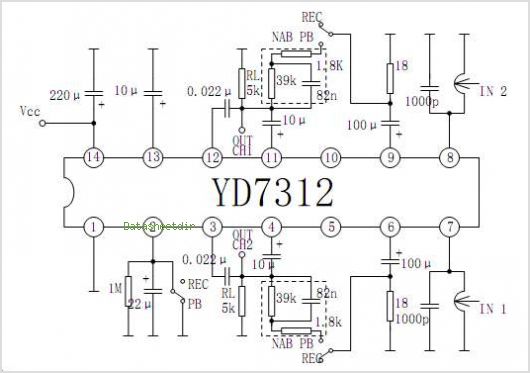

YD7312 DUAL RECORDING/PLAYBACK PREAMPLIFIER CIRCUIT WITH ALC

The YD9088 is a bipolar integrated circuit for use in mono portable and pocket Radios It is used when a minimum of peripheral components (of...

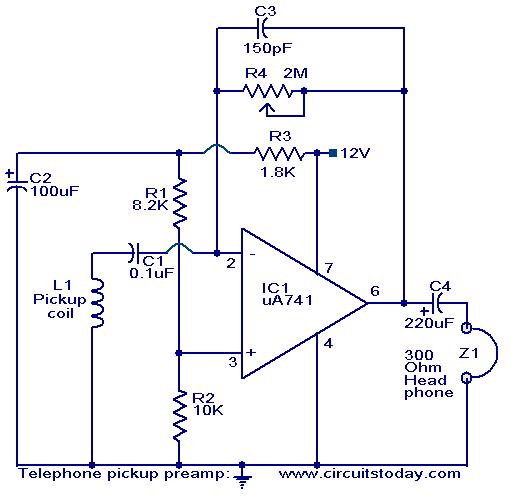

Telephone pickup preampliifer

Here is a simple circuit based on IC uA 741 that can be used to pickup voice from telephone lines without even contacting the line. If a hig...

Magnetic pickup pre-amplifier circuit

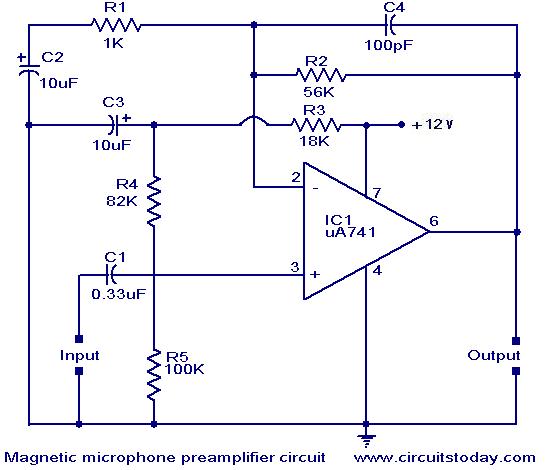

A preamplifier for magnetic pickups of record players is shown here. The uA 741 is used as an AC coupled non-inverting amplifier operating o...

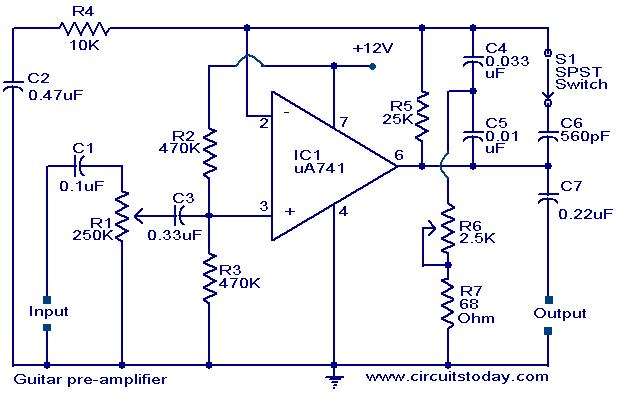

Guitar pre-amplifier using uA 741

A preamplifier circuit suitable for high impedance type electric guitar pickups is given here. The circuit is based on a uA 741 op-amp (IC1)...

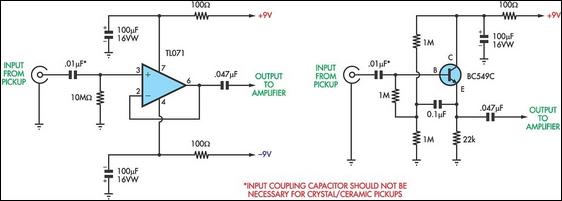

Crystal pickup pre-amplifier circuit

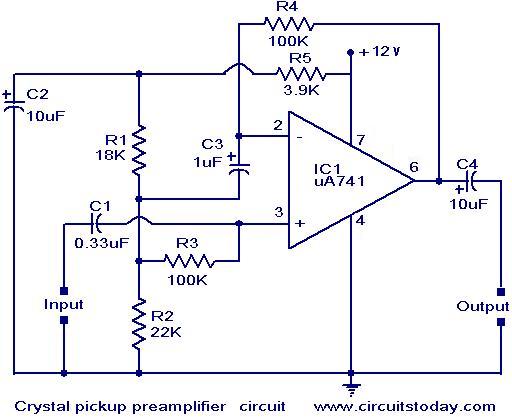

A preamplifier operating on a single supply and suitable for use with high impedance type crystal pickups is shown here. The circuit is basi...

preamplifier

This Hi Fi stereo preamplifier circuit is congenital with TDA1054 IC from SGS. TDA1054 is a 16-pin DIL amalgamation and integrates 2 abstrac...

Portable Phone Preamplifier

This assemblage was advised for amateurs owning an old accumulating of vinyl recordings and absent to accept it digitally remastered into a ...
