This preamp is very simple, and will work under tough conditions. The input impedance is pretty high, so it won't load down electric guitars. It will also amplify microphones. When there is a moment, there will be some additions that will optimize it for microphones, and also show how to power a condenser microphone. The power source is typically a 9-volt battery, but the circuit will tolerate 6 to 30 volts. Battery drain at idle is about 1 milliamp. The two red LEDs are important in the circuit - they act as a voltage reference to set the operating point of the opamp.
The preamp mentioned is a highly versatile and resilient device, designed to function effectively even in challenging environments. Its high input impedance ensures that it doesn't overload electric guitars, making it a suitable choice for musicians and sound engineers. The device is also capable of amplifying signals from microphones, showing its wide range of applications.
In the future, enhancements will be made to optimize this preamp for microphone usage. This will include instructions on how to power a condenser microphone, expanding its usability even further. The power source for this circuit is typically a 9-volt battery, demonstrating its low power consumption and portability. However, it can accommodate a range of 6 to 30 volts, indicating its flexibility and adaptability to different power sources.
The battery drain at idle is only about 1 milliamp, indicating that the device is energy efficient and can conserve battery life when not in active use. The inclusion of two red LEDs in the circuit is a critical design choice. These LEDs serve as a voltage reference, setting the operating point of the operational amplifier (opamp). This feature ensures that the opamp functions at an optimal point, maintaining the overall efficiency and effectiveness of the preamp.This preamp is very simple, and will work under tough conditions. The input impedance is pretty high, so it won`t load down electric guitars. It will also amplify microphones. When I have a moment, I`ll make some additions that will optimize it for microphones, and also show how to power a condenser microphone. The power source is typically a 9-volt battery, but the circuit will tolerate 6 to 30 volts. Battery drain at idle is about 1 milliamp. The two red LEDs are important in the circuit - they act as a voltage reference to set the operating point of the opamp.
This microphone preamplifier circuit enhances the acoustic signal of a moving coil microphone (MC) with a sensitivity of 150μV at line level. In this design, a specific technique is not employed because the noise produced does not significantly impact the...
When power is applied to the circuit, all Red LEDs will flash on and off simultaneously. The Yellow LEDs will also flash, but only every other Yellow LED will be illuminated at any given time. The Green LEDs will remain...
This application note describes the evaluation board for the AD7892-2, a 12-bit analog-to-digital (A/D) converter. The AD7892-2 is a high-speed, low-power device capable of 500 ksps sampling rate, operating from a single +5V supply. It features an on-chip track/hold amplifier,...
This circuit utilizes a CA5470 quad microprocessor BiMOS-E operational amplifier. Amplifiers A1 and A2 are configured as a cross-coupled differential input and differential output preamplifier stage, while A3 is responsible for input guard-banding. Additionally, amplifier A4 converts the differential outputs...

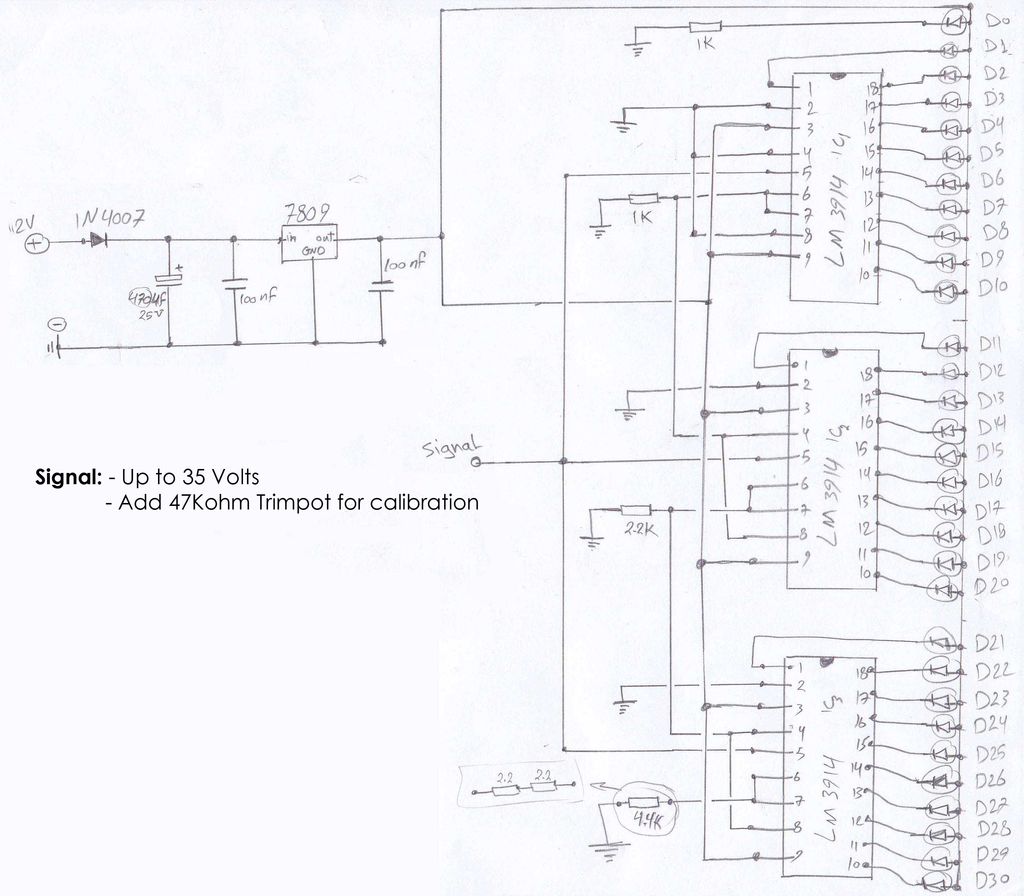

The circuit schematics operate at 12 Volts, sourced from a car battery. The ground connection is tied to the car chassis, while the signal is received from a sensor connected to a stepper motor. The No. 5 pin of the...

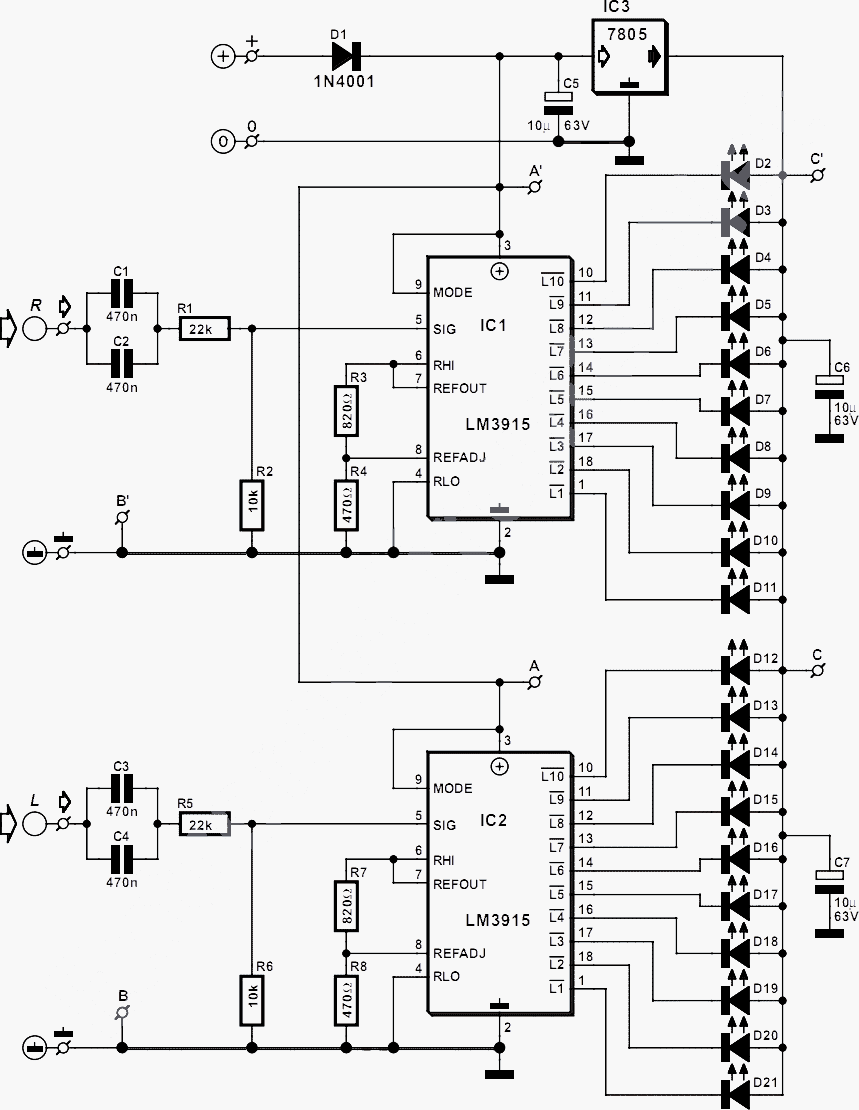

This circuit detects the AC audio voltage supplied to car radio loudspeakers and visually represents it as power using an LED bar graph, creating an appealing visual effect. It is designed to accommodate typical car radio output power ranges but...
This assembly is designed for amateurs who possess a collection of vinyl records and wish to convert them into a digital format on a personal computer. Alternatively, they may want to enjoy an old, cherished LP collection through their modern...

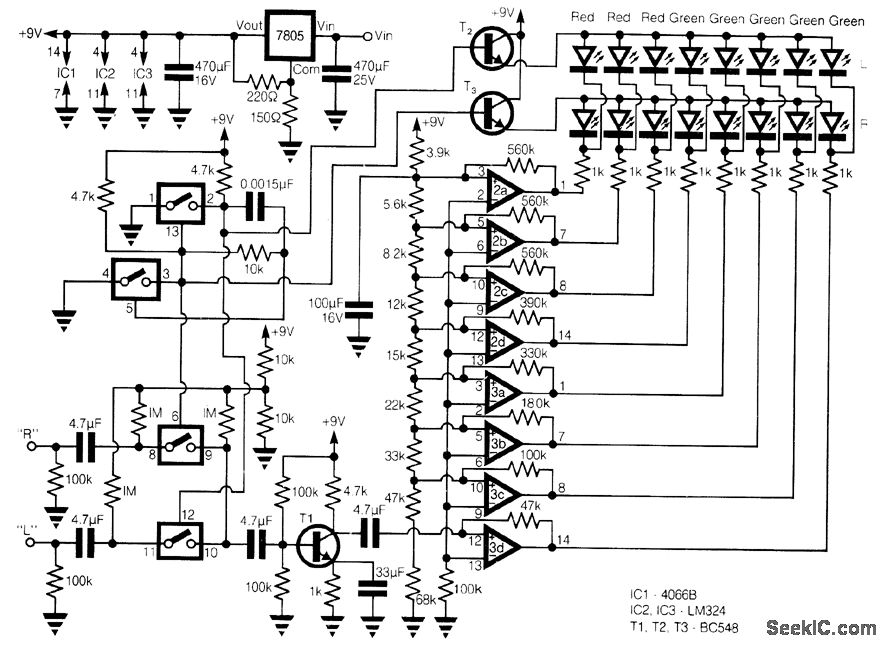

This circuit offers a cost-effective alternative to the LM3915 series LED displays. It utilizes a square-wave oscillator constructed with two CMOS analog switches, which alternately select the right and left channels for monitoring and display. The chosen signal is amplified...

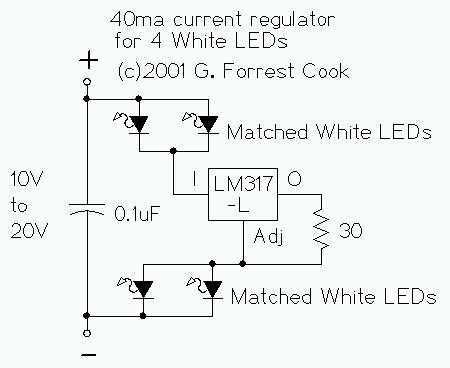

The LM317L and resistor act as a current regulator set to 40ma. Current flows from the battery through one pair of LEDs, through the regulator, through the other pair of LEDs, and back to the battery. The capacitor filters out...
