XTR101 bridge input voltage excitation circuit diagram
As shown, the circuit uses the LM129 regulator to generate 6.9V voltage reference, provided 1.0147mA current from 6.9V reference voltage to...
low cost buffered voltage reference
This is design circuit for a low-cost voltage reference circuit. Its main component is a general-purpose operational amplifier, the 741, con...

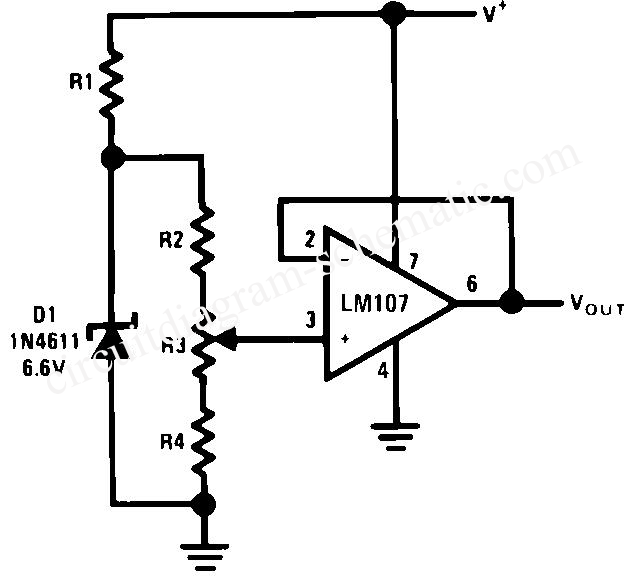

Positive Voltage Reference Circuit
The circuit are suited for high precision extended temperature service if V+ is reasonably constant since IZ is dependent on V+. R1, R2, R3,...

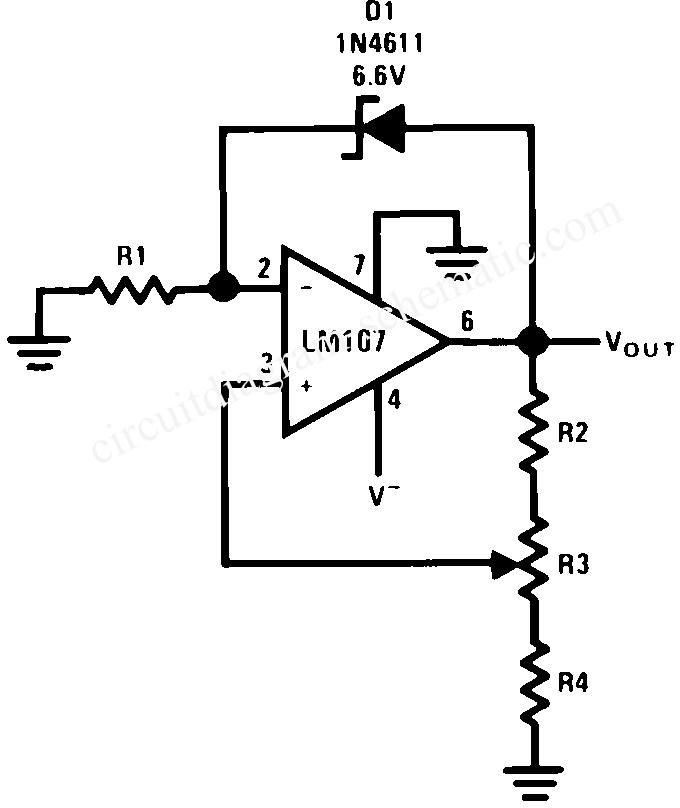

Negative Voltage Reference Circuit
This circuit is a Adjustable voltage reference circuits, a voltage source which provides a voltage greater than the reference diode. High pr...
Digitally-controlled-voltage-reference
This circuit shows a simple method of achieving a voltage reference which can be trimmed using an 8bit DAC with an on-chip voltage referenc...
Low Power Voltage Reference
The voltage reference circuit described below, is a special implementation of current source LM334. Characterized by a very small temperatur...
Voltage Reference LED indicator
A keyed power input connector, series rectifier and a shunt rectifier, both 1N4007, prevent reverse voltage from being applied to the power ...
