Description: This circuit is designed as a low-cost voltage reference. Its main component is a general-purpose operational amplifier, the 741, configured to output a buffered fixed reference voltage for use by other integrated circuits or circuits, such as an Analog-to-Digital Converter (ADC). The reference circuit is designed to output 5 volts and employs an AD589 as the reference for the 741. The AD589 is a low-cost, temperature-compensated bandgap voltage reference that provides a constant output of 1.23 V. Consequently, the voltage at both inputs of the 741 is 1.23 V, which is also the voltage at the junction of the 1K and 3K resistors connected to the inverting input. This configuration causes the 741 to output a steady voltage of approximately 5V (1.23V x 4K/1K = 4.92V).
The voltage reference circuit utilizes the operational amplifier 741 in a non-inverting configuration to amplify the reference voltage provided by the AD589. The operational amplifier is powered by a dual supply, typically ±15V, ensuring adequate headroom for the output voltage swing. The AD589, being a bandgap reference, is chosen for its stability over temperature variations and low output drift, making it suitable for precision applications.
In the circuit, the resistors connected to the inverting input of the operational amplifier are configured to set the gain. The resistor values of 1KΩ and 3KΩ create a voltage divider that determines the gain of the operational amplifier. The gain can be calculated using the formula:
\[ \text{Gain} = 1 + \frac{R_f}{R_{in}} \]
where \( R_f \) is the feedback resistor (3KΩ) and \( R_{in} \) is the resistor connected to the inverting input (1KΩ). This results in a gain of approximately 4, which amplifies the 1.23V reference voltage to approximately 4.92V.
The output voltage of the operational amplifier is further buffered to provide a stable 5V reference voltage, suitable for powering other components such as ADCs. The circuit design ensures low output impedance, enhancing the ability to drive loads without significant voltage drop. Additionally, bypass capacitors may be included at the power supply pins of the operational amplifier to filter out noise and improve stability.
Overall, this low-cost voltage reference circuit is effective for applications requiring a stable reference voltage, providing a practical solution for various electronic designs.This is design circuit for a low-cost voltage reference circuit. Its main component is a general-purpose operational amplifier, the 741, configured to output a buffered fixed reference voltage for use by other IC`s or circuits, such as an Analog-to-Digital Converter (ADC). This is the figure of the circuit; The reference circuit above is designed t o output 5 volts, and employs an AD589 as the 741`s own reference. The AD589 is a low-cost, temperature-compensated bandgap voltage reference that provides a constant output of 1. 23 V. Thus, the voltage at both inputs of the 741 is 1. 23 V, which is also the voltage at the junction of the 1K and 3K resistors connected to the inverting input.
This forces the 741 to output a steady voltage of approximately 5V (1. 23V x 4K/1K = 4. 92V).
An audio signal applied to the input VI is passed through the operational amplifier 741, designated as U2. After amplification, the output signal V2 is sampled and sent to a negative voltage doubler/rectifier circuit composed of diodes CR1 and CR2,...

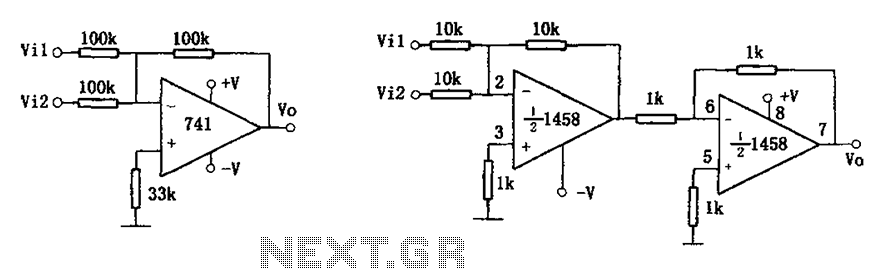

The common addition circuit is illustrated, with Figure (a) depicting the inverting adder circuit. The input-output relationship is expressed as Vo = -(Vi1 + Vi2). For phase addition, the circuit shown in Figure (b) can be utilized, with the input-output...
