Description: This is a simple preamplifier circuit. It can accept a general AUX sound signal as well as a signal from a microphone. The purpose of the circuit is to amplify the sound signal at the initial stage using an operational amplifier (op-amp) integrated circuit.
The described preamplifier circuit is designed to enhance audio signals from various sources, including AUX inputs and microphones. The circuit typically employs an operational amplifier, which is a high-gain voltage amplifier with differential inputs and a single-ended output.
In the schematic, the op-amp is configured in a non-inverting mode, which allows for a significant increase in the input signal's amplitude while maintaining the original phase. The input stage may include capacitors to block any DC offset from the audio signals, ensuring that only the AC components of the audio are amplified. Resistors are also used in the feedback loop to set the gain of the amplifier, which can be adjusted based on the specific requirements of the application.
Power supply considerations are crucial for the op-amp's operation; a dual power supply (positive and negative voltage rails) is often used to accommodate the full range of audio signals. Bypass capacitors may be included to filter out any noise from the power supply, ensuring a clean and stable operation of the op-amp.
The output of the preamplifier can be connected to further stages of audio processing, such as tone controls or additional amplification stages, making this circuit an essential component in audio signal processing applications. Proper grounding and layout techniques are important in the design to minimize noise and interference, which can adversely affect audio quality.This be simple Preamp circuit. It can take sound general signal AUX and a signal from Microphone. For enlarge sound signal at the beginning. By use op-amp IC..
Preamplifiers are utilized to amplify low-level signals, such as those from microphones and tape heads, before they are sent to power amplifiers. Power amplifiers typically exhibit lower sensitivity. The frequency response can also be adjusted and optimized at the preamplifier...
This circuit is similar to the previous one but employs positive feedback to enhance the amplitude delivered to the speaker. It was adapted from a small five-transistor radio that utilizes a 25-ohm speaker. In the prior circuit, the load resistor...
IC1 is a dual operational amplifier. In this circuit, each op-amp functions as a voltage comparator. When the voltage at the positive input exceeds the voltage at the negative input, the output transitions to a high state. Conversely, when the...
The circuit depicted in Figure 3-8 involves an input signal that passes through a low-pass filter before entering the differential amplifier. The composition of the FET (Field Effect Transistor) is evaluated at the preamplifier output. The differential amplifier connects to...
The amplifier circuit is designed as a pre-amplifier configuration. It utilizes transistor Q101 and other components such as inductor L101 and biasing elements. The transistor operates as a common emitter intermediate frequency (IF) amplifier. The IF signal is coupled through...

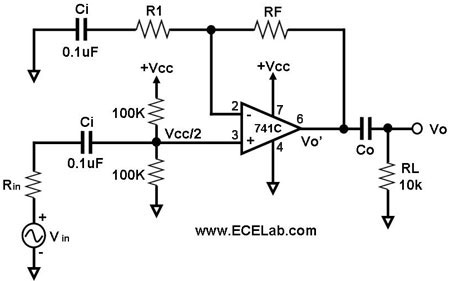

All the capacitors are present to block DC signals; however, the values of capacitance are crucial, and it is necessary to determine the value of Co. Rin denotes the source resistance, which is not an integral part of the amplifier...
This circuit is mainly intended to provide common home stereo amplifiers with a microphone input. Using a stereo microphone the circuit must be doubled. In this case, two separate level controls are better than a dual-ganged stereo potentiometer. Low current...
The circuit operates in receive mode, with the Push-To-Talk (PTT) switch enabling transmit mode. The speaker functions as both a microphone and a speaker. Most systems observed utilize a rocking armature transducer for the speaker. There is no base station...
The circuit comprises two main components: the Lisheng power amplifier and the rectifier filter section. The stereo audio power amplifier circuit diagram, depicted in Figure 5-85, illustrates only one channel, with the other channel being identical. The audio signal is...
