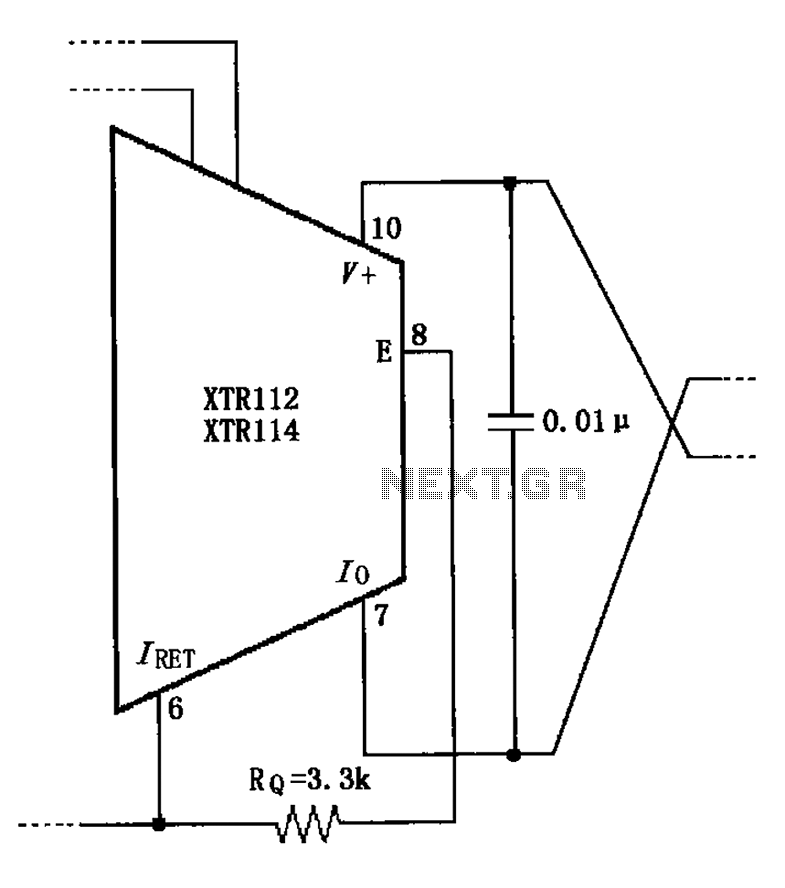

XTR112 114 without external transistor circuit diagram
As shown, when not in external transistor Q1, connect a 3.3k resistor between feet and legs. With this connection circuit due to internal p...

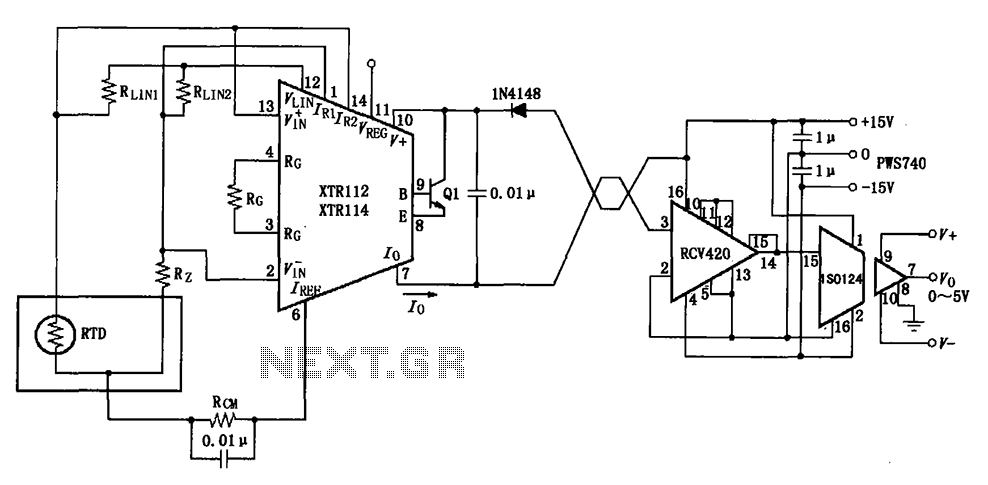

XTR112 114 isolated transmit receive circuit diagram of the ring
As shown, collected at the scene RTD temperature, it is converted into a voltage by the XTR112/114 voltage is converted into 4 ~ 20mA curre...
