Flooding rats Electronic cat
Electronic circuit shown in Figure cat. ICl time base integrated circuit NE555, it potentiometer RP, resistor Rl, R2 and capacitor Cl form t...
Door alarm circuit with a time of recognition NE555
Door alarm here with a time recognition, the owner opened the door is normally open the door, open the door to complete the action within th...
With NE555 make double touch light switch 2
Circuit shown in Figure, the dashed line in FIG left portion as an ordinary lighting circuit, the right part of the production of the doubl...
A house automatically fill light circuit
Circuit consists of three parts is light-control section 5: Two foot f light time control section; the third is the implementation part of ...
A thirty light water digital control circuit
By the oscillator circuit, a counter, Iseki circuit of three parts. Oscillation circuit by the time base manifold NE555 and several externa...
A volt DC power supply circuit
By the old I *, jh;, ililiiit; NE555 circuit implementation and other child member, NE555 1yj complex I end (6) feet. Set bit Vr: {2) feet ...
Telephone control automatic lamp circuit 2
By phone automatically when the lamp base circuit NE555 and optocouplers constituted a call at night, light will automatically light up, ha...

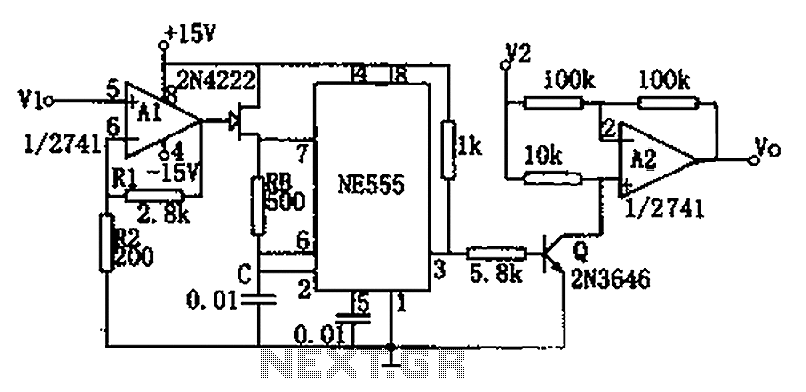

NE555 circuit diagram of a divider circuit
As shown in FIG circuit by the voltage - frequency converter and an amplitude modulator. Input voltage V1 by the operational amplifier A1 c...
With NE555 make double touch light switch 1
3-2, the circuit by the touch electrode, when integrated with the base NE555 made double touch light switch circuit shown in Figure composit...
With NE555 make double touch light switch 1
3-2, the circuit by the touch electrode, when integrated with the base NE555 made double touch light switch circuit shown in Figure composit...
1kHz square wave signal generator
1kHz square wave signal generator As shown by the time base circuit NE555 plus the time constant circuit (47 kfl O.Q15 UF) composed of] hair...
1kHz square wave signal generator
1kHz square wave signal generator As shown by the time base circuit NE555 plus the time constant circuit (47 kfl O.Q15 UF) composed of] hair...
Automatic lighting switch circuit
NE555 time base circuit with AC solid state relay SSR may constitute automatic light switch circuit, the circuit shown in FIG. From the figu...
Light illuminated control circuit
220V AC after capacitive G buck regulator VS regulator, rectifier diode VD, capacitor filter to G IC (NE555) provides approximately 3.3V DC ...
FM by a timer ME555 circuit
The figure is composed by a NE555 and other withered frequency circuit by changing the self-excited multivibrator NE555 charging current to ...
Car anti-theft alarm circuit
This paragraph Easy Car Alarm circuit with the use of fewer components, easy to produce and so on. (1) circuit automobile anti-theft alarm c...
Multifunction adjustable universal time relay (NE555, CD4013) circuit
The multifunction circuit mainly refers to it can be "delayed pull", "time release", "delayed cycle" conversio...
A welding load automatic power-off circuit
NE555 tour allows just as vibration. } E input pin 3 River) pulse frequency ult / 5 ~ 20Hz Fan Cave weeks bamboo. Barrel section to ridicule...
NE555 triangular wave loading system, square wave generator circuit
How it works: the circuit as shown in FIG. VT1, VT2 and resistor R1 constitute a constant current source for charging the capacitor C2 for l...
Colorful lights loop circuit
Circuit works: 220 V AC by C1 Buck, DW regulator, VD whole stream, C2 filtered output 12 V DC voltage supply control circuit. IC1 time base ...
Flashing warning light produced by light control NE555 circuit
VDI, VD2, C3, C4 compose a simple half-wave rectifier capacitor step-down regulator circuit. After power across C3 can output 12V DC voltage...
With NE555 making push-button delay section lamp circuit
With NE555 making push-button delay section lamp circuit shown in Figure 3-5, the circuit from when base integrated circuits, ...
With NE555 making push-button delay section lamp circuit
With NE555 making push-button delay section lamp circuit shown in Figure 3-5, the circuit from when base integrated circuits, ...
Electronic Buzzer with IC timer NE555
This easy electronic buzzer circuit built based on timer works for gaining the frequency. The IC timer NE 555 used as astable multivibrator ...
SHORTWAVE PULSED MARKER OSCILLATOR
A useful marker oscillator can be made using an NE555 to pulse the oscillator at an audio rate. This makes it easy to find the signal in the...
SIMPLE ULTRASONIC GENERATOR
This basic ultrasonic generator can be built easily and quickly. An NE555 drives a speaker. The frequency range is 12 to 50 kHz. SPKRI is a ...
Special sound audio oscillator circuit(NE555 CD4017)
...
Special sound audio oscillator circuit(NE555 CD4017)
...
Simple telephone time lock circuit diagram
Simple telephone time lock circuit is shown in the above picture. In the circuit diagram, BG1 and BG2 are electronic switches controlled by ...
Simple telephone time lock circuit diagram
Simple telephone time lock circuit is shown in the above picture. In the circuit diagram, BG1 and BG2 are electronic switches controlled by ...
The NE555 FM modulation circuit
In the figure is the NE555 FM modulation circuit. In the figure, NE555 7-pin is connected with a FM modulation circuit which is composed wit...
The NE555 FM modulation circuit
In the figure is the NE555 FM modulation circuit. In the figure, NE555 7-pin is connected with a FM modulation circuit which is composed wit...
frequency conversion circuit composed of NE555
In the circuit, NE555`s oscillation frequency is controlled by the VT2, and during its pin 3 in the low output waveform (output waveform of ...
frequency conversion circuit composed of NE555
In the circuit, NE555`s oscillation frequency is controlled by the VT2, and during its pin 3 in the low output waveform (output waveform of ...
The inverter circuit diagram composed of NE555
The inverter circuit diagram composed of NE555 is shown as the chart, and it can turn +12V DC battery voltage to 220V AC output voltage. In ...
The inverter circuit diagram composed of NE555
The inverter circuit diagram composed of NE555 is shown as the chart, and it can turn +12V DC battery voltage to 220V AC output voltage. In ...
Sequence timer diagram composed by NE555
This is the sequence timer diagram composed by NE555. The timer can set time any time when the power is connected, break and control the ext...
Sequence timer diagram composed by NE555
This is the sequence timer diagram composed by NE555. The timer can set time any time when the power is connected, break and control the ext...
Electronic Circuit Schematic of Touch Sensor using NE555 Based Proteus Software Simulation
...
Electronic Circuit Schematic of Touch Sensor using NE555 Based Proteus Software Simulation
...

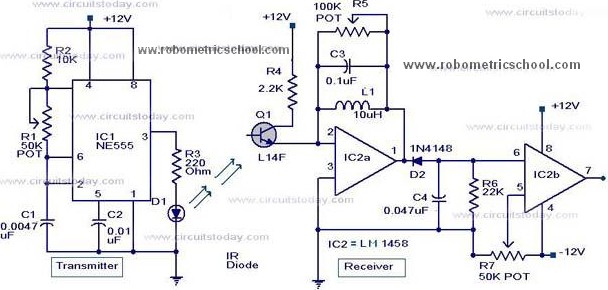

Moving Sensor / Detector Schematic Diagram using IC NE555 and Phototransistor L14F
All components that used in Moving Sensor / Detector Schematic Diagram using IC NE555 and Phototransistor L14F. Main component in this circu...
Moving Sensor / Detector Schematic Diagram using IC NE555 and Phototransistor L14F
All components that used in Moving Sensor / Detector Schematic Diagram using IC NE555 and Phototransistor L14F. Main component in this circu...
Simple NE555 IC Testing Circuit
Ne555 is one of the most commonly used timer IC. It is a monolithic timing circuit that can produce accurate and highly stable time delays o...
SIMPLE INVERTER CIRCUIT 230V
The timer IC(NE555) is wired as an ASTABLE MULTIVIBRATOR in this circuit. It will generate Alternating non sinusoidal output wave form at th...
voltage inverter using ic ne555
...
automatic wiper control
The circuit is build around an stable multivibrator using NE 555. Here the output at pin 3 remains high for a time period set by R2, and low...
NE555 Timer
This article describes the The 555 Timer Design (NE555N). The content is very simple, very helpful. Components in this article can help you ...
Fully Automatic Emergency Light circuit
The circuit can be divided into inverter and charger sections. The inverter section is built around timer NE555, while the charger section i...
Headlight Flasher
Small and interesting circuit that flashes your head lights. Automotive, head lights, circuit diagram. Built around famous NE555 timer circu...
