Electronic counter with automatic counting interface circuit a
Electronic calculator with automatic counting of the interface circuit shown in Figure. Figure (a) stroke switch so via optocoupler B contro...
Counter circuit diagram of the digital circuit
Digital counter circuit as shown is composed of infrared signal for detection of moving target scan count small device, it is suitable for t...
8-bit digital counter circuit
8 shows a possible digital counter circuit. This circuit uses two ICM7217 integrated chips each control four digital tube. ...
digital counter unit
...
RING COUNTER WITH VISUAL READOUT
Uses only six components per stage. Combining of counter and indicator functions gives low battery drain. After reset button is re leased, 0...
RING OF 7 COUNTER
Uses surface-barrier transistors in arrangement wherein pattern of four on stages is stepped along ring, per mining maximum number of stages...
MULTIDIGIT DEMONSTRATION COUNTER
Simple interconnection of RS7490 decade counter RS7447 decoder, and 7-segment digital display for each desired digit makes ideal counter f...
DIVIDE BY ODD NUMBER COUNTER
This circuit symmetrically divides an input by virtually any odd number. The circuit contains n+l/2 clocks twice to achieve the desired divi...
ELECTRONIC DICE
When S1 is pressed, counter U2 is driven by oscillator U1A/U1B and the count (0 through 6) is read on DISP1. R1 and C1 determine the count r...
SIMPLE EVENT COUNTER
S1 is a power switch. U2 drives counter U3 by producing a pulse when S2 is depressed. U4 and DISP1 read the count of counter IC U3. S3 is a ...
12V 5MHz COUNTER
Portable counter is designed with low-power logic to minimize battery drain, yet provides good performance.Since most of milliwatt power dra...
12V 5MHz COUNTER
Portable counter is designed with low-power logic to minimize battery drain, yet provides good performance.Since most of milliwatt power dra...
Winding electronic counter 2
The winding machine electronic counter described in the example uses LED digital display to show the wound coil turns, the use of maximum co...
Winding electronic counter 2
The winding machine electronic counter described in the example uses LED digital display to show the wound coil turns, the use of maximum co...
Debounced Counter Made From Off-The-Shelf Chips
The real usefulness of the SR latch comes during input switch transitions. Let`s assume the input switch is a break-before-make and the swit...
Debounced Counter Made From Off-The-Shelf Chips
The real usefulness of the SR latch comes during input switch transitions. Let`s assume the input switch is a break-before-make and the swit...
Touch Counter
...
digital switching system
This circuit can control any one out of 16 devices with the help of two push-to-on switches. An up/down counter acts as a master-controller ...
PSIM Training CD-ROMs
The counter must be programmed as part of a batch-counting operation to sort parts automatically for quality control. The counter is install...
IC Up/Down Counter
...
4-bit Decade Counter Description IC Up/Down Counter
...
Coin Counter circuit
The next counter section works the same way but is set up to count 4 quarters, single $1 (loonies) and single $2 (toonies). The toonies ci...
0-99 counter by IC 4017G—2
When you want the counter circuit since 0 arrive at 99. I thinks this circuit may on the same wave length you certainly. it uses IC LM4017 d...
Ring Counter Variations
...
4040B LED Counter
The number of the pulses of the input can be confirmed by seeing it with the eyes by putting the light-emitting diode to the output of the c...
Seven-7-Segment Counter Circuit with LED Display-Diagram and Schematic
A simple seven/7 segment counter circuit with an LED display. This counter circuit diagram is designed using IC CD 4033 as counter,555 Timer...
Ring Counter Circuit Working Principle with Animation and Video
Digital counters have several applications in electronics circuits. Counters in digital electronics are used at different situations. Here w...
%2Bwith%2Banimation%2Bsimulation%2Bcircuit.png)

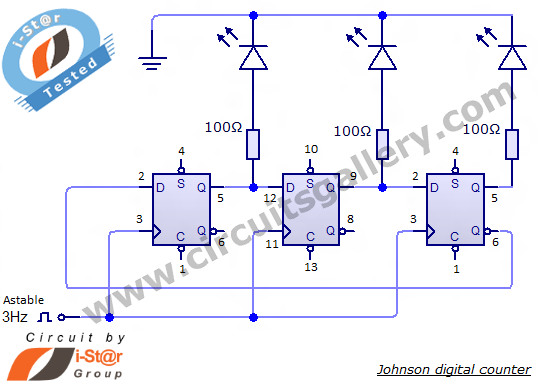

Johnson digital counter circuit diagram using D flip flop 7474 (3 bit/4 bit) with animation/ simulation
The Johnson digital counter or Twisted Ring Counteris a synchronous shift register with feedback from the inverted output (Q`) of the last f...
segment counter circuit
...
up down counter circuit
This is the circuit diagram of a very simple up down counter that can be used of a large number of applications. The circuit is based on the...
digital counter circuit
The Digital Counter Circuit is an electronic project that converts digital numbers (0-9) to binary (0-1). If you want to understand binary c...
Counter
This article is about the term counter used in electronics and computing. For other uses, see Counter (disambiguation). In digital logic and...
Electronic counter circuit
...
Electronic counter
Simple counting can be done by anyone but counting in interval up to large number is tedious and the chance of forget is maximum. As, we hav...
digital counter circuits
The circuit in Figure 1 is that of a 4-bit asynchronous counter, also known as a `ripple counter`. It consists of 4 J-K flip-flops whose J a...
Ring counter
...
Digital visitor counter Schematic Diagram
Digital visitor counter is a reliable circuit that takes over the task of counting Number of Persons/ Visitors in the Room very Accurately. ...
Counter display with led 7 segment by IC CMOS
This is the simple digital counter circuit, the IC application number 4029 from binary data, and then sent to the IC number 4513, a driver I...
counter diagram
...
Electronic Dice
When SI is pressed, counter U2 is driven by oscillator U1A/U1B and the count (0 through 6) is read on DISP1. Rl and CI dete...
1Hz Timebase For Readout And Counter Applications
This counter makes direct readout of frequency-generating equipment very easy when a 1-H...
1Ghz Divide-By-N Counter
Counter speeds for CMOS- and TTL-programmable counters are limited to under 100 MHz. ECL-type devices can approach...
Divide-By-Odd-Number Counter
This circuit symmetrically divides an input by virtually any odd number. The circuit contains n + 1h clocks tw...
Odd-number-counter-divider
This circuit, shown symmetrically, divides an input by virtually any odd number. The circuit counts n + 1/2 clocks twice to achieve the des...
8-Digit up-down counter
This circuit shows how to cascade counters and retain correct leading zero blanking. The NAND gate detects whether a digit is active since o...
Ignition pulses counter
The Digi-Tach contains a master-clock circuits (U6)v latch and reset pulse generators (U2-b-U2-d), input signal bonditioner (Ul, U2-a), puls...
Digital Up / Down Counter
This Circuit uses a CD40110BE, Up/Down Counter IC's. This IC is able to Source Each Segment with 25 mA, Giving a Very Nice Bright Display. T...
