simple fm transmitter

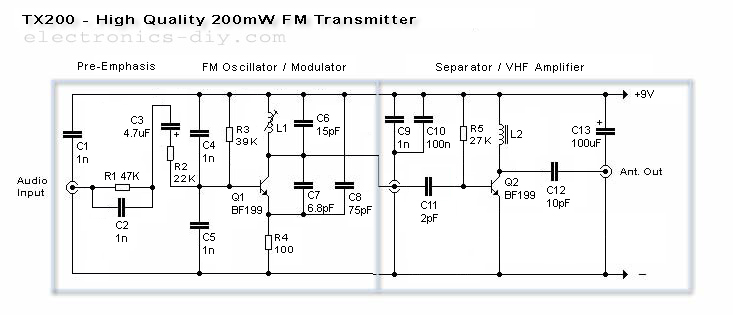

Description: This document provides a schematic and description for constructing an FM transmitter. The circuit is designed to be simple, utilizing minimal components while achieving a long transmission range.

The FM transmitter circuit typically consists of a few key components: an oscillator, a modulator, an amplifier, and an antenna. The oscillator generates a radio frequency signal, which is then modulated with the audio signal that is to be transmitted. The modulation process alters the frequency of the carrier wave in accordance with the audio input, allowing the sound to be transmitted over the airwaves.

The circuit may include a transistor or an integrated circuit (IC) as the main active component. A common choice for the oscillator is the Colpitts oscillator configuration, which provides stable frequency generation. The modulation can be achieved using a capacitor coupling method, where the audio signal is fed into the base of the transistor, affecting the oscillation frequency.

In terms of components, a few resistors and capacitors are required to set the operating frequency and stabilize the circuit. The choice of the antenna is also critical, as a well-designed antenna can significantly enhance the transmission range. A simple dipole or monopole antenna can be used, depending on the desired range and frequency.

Power supply considerations must also be addressed, as the circuit requires a stable voltage to function effectively. A battery or a regulated power supply can be employed, ensuring that the transmitter operates without fluctuations that could affect performance.

Overall, this simple FM transmitter circuit is an excellent project for those interested in learning about radio frequency transmission and modulation techniques, providing a practical application of electronic principles.Schematic and description to make fm transmitter. It is a simple fm transmitter circuit with minimum components but it has a long range. ..
