Medium-Power FM Transmitter
Description: The range of this FM transmitter is approximately 100 meters when powered by a 9V DC supply. The circuit consists of three stages. The first stage is a microphone preamplifier.
The FM transmitter circuit is designed to convert audio signals from a microphone into frequency-modulated radio waves, which can then be transmitted over a distance of approximately 100 meters. The circuit operates with a 9V DC power supply, making it suitable for portable applications.
The first stage of the circuit is the microphone preamplifier. This stage is crucial for amplifying the weak audio signals picked up by the microphone. Typically, an operational amplifier (op-amp) is used in this configuration, providing the necessary gain to ensure that the audio signal is strong enough for subsequent processing. The preamplifier stage may also include passive components such as resistors and capacitors to filter out noise and stabilize the gain.
The second stage of the transmitter is the modulator. In this stage, the amplified audio signal is used to modulate a high-frequency carrier wave generated by an oscillator circuit. The oscillator is usually based on a crystal or LC circuit, which determines the frequency of the transmitted signal. The modulation process alters the amplitude or frequency of the carrier wave in accordance with the audio signal, allowing the information to be encoded onto the radio wave.
The third stage is the output stage, which typically includes a power amplifier. This stage boosts the power of the modulated signal to ensure that it can be transmitted effectively over the desired range. An antenna is connected to the output stage to radiate the modulated signal into the air. The design of the antenna is critical, as it must be matched to the frequency of the transmitter to maximize efficiency and range.
Overall, the FM transmitter circuit is a compact and efficient design that allows for the wireless transmission of audio signals over a short distance, making it ideal for various applications such as personal broadcasting or educational demonstrations. Proper attention to component selection and circuit layout is essential to achieve optimal performance and reliability in the final product.The range of this FM transmitter is around 100 meters at 9V DC supply. The circuit comprises three stages. The first stage is a microphone preamplifier bu..
The FM transmitter circuit is designed to convert audio signals from a microphone into frequency-modulated radio waves, which can then be transmitted over a distance of approximately 100 meters. The circuit operates with a 9V DC power supply, making it suitable for portable applications.
The first stage of the circuit is the microphone preamplifier. This stage is crucial for amplifying the weak audio signals picked up by the microphone. Typically, an operational amplifier (op-amp) is used in this configuration, providing the necessary gain to ensure that the audio signal is strong enough for subsequent processing. The preamplifier stage may also include passive components such as resistors and capacitors to filter out noise and stabilize the gain.
The second stage of the transmitter is the modulator. In this stage, the amplified audio signal is used to modulate a high-frequency carrier wave generated by an oscillator circuit. The oscillator is usually based on a crystal or LC circuit, which determines the frequency of the transmitted signal. The modulation process alters the amplitude or frequency of the carrier wave in accordance with the audio signal, allowing the information to be encoded onto the radio wave.
The third stage is the output stage, which typically includes a power amplifier. This stage boosts the power of the modulated signal to ensure that it can be transmitted effectively over the desired range. An antenna is connected to the output stage to radiate the modulated signal into the air. The design of the antenna is critical, as it must be matched to the frequency of the transmitter to maximize efficiency and range.
Overall, the FM transmitter circuit is a compact and efficient design that allows for the wireless transmission of audio signals over a short distance, making it ideal for various applications such as personal broadcasting or educational demonstrations. Proper attention to component selection and circuit layout is essential to achieve optimal performance and reliability in the final product.The range of this FM transmitter is around 100 meters at 9V DC supply. The circuit comprises three stages. The first stage is a microphone preamplifier bu..
Foxhunt FM Transmitter Circuit
This 2-meter 144 MHz fox hunt transmitter is utilized in amateur competitions where participants seek to locate a concealed transmitter using primarily homebrewed receivers.
The 144 MHz fox hunt transmitter is designed for use in amateur radio competitions, commonly referred to...
A ONE TRANSISTOR FM TRANSMITTER
The 2N2222 circuitry is a three-element phase-shift oscillator circuit designed to produce a 1,000 Hz sine wave. This sine wave is subsequently applied to the TCG-610 varactor diode, which has a capacitance of 6 pF at 4 V. The application...
FM-VHF Amplifier Booster Transmitter

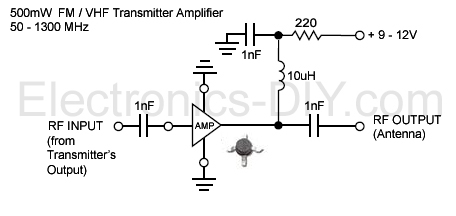

This is an aerial achievement low noise 500mW amplifier/booster designed for low power FM transmitters such as BA1404, BH1417, BH1415, and 433MHz transmitter modules. The amplifier utilizes a chip that incorporates various transistor stages and all necessary components within a...
mini fm transmitter circuit
This circuit is a simple two-transistor (2N2222) mini FM transmitter. No authorization is required for this transmitter according to FCC regulations regarding wireless microphones. When powered by a 9-volt battery and equipped with an antenna no longer than 12 inches,...
1.5v wireless fm transmitter circuit
A simple whole house FM transmitter circuit diagram and description. Operating power is a 1.5V battery of any type. This circuit is able to transmit at a distance of 30 meters.
The whole house FM transmitter circuit operates on a low...
300m fm transmitter circuit design project
This FM transmitter circuit is very simple and has an acceptable transmission range. The signal transmitted from this FM transmitter circuit can be received at almost 300 meters in open air. The circuit requires a 3-volt operating voltage and can...
FM Stereo Transmitter
This project is straightforward to construct and will transmit high-quality sound within the FM band (88-108 MHz). An important component is that the...
This project involves the design and construction of a simple FM transmitter capable of broadcasting audio signals in...
Radio-Circuits
Radio-Circuits has elevated the standard with this website. Unlike any other circuit site on the internet, they have compiled ten of the most popular FM transmitter circuits.
Radio-Circuits provides a comprehensive collection of FM transmitter circuits, showcasing a variety of designs...
simple and powerful FM transmitter
A simple and powerful FM transmitter is an interesting project that utilizes one transistor and operates within a frequency range of 100 MHz. The circuit diagram includes a description of the FM transmitter and various related interesting projects.
The FM transmitter...
