Reverse voltage and over-voltage surge protection XTR106
Description: The circuit utilizes a Zener diode D1 to limit surge voltage and incorporates a four-diode rectifier bridge to prevent reverse voltage. The Zener diode D1 is rated at 36V, with optional choices being 1N4753A or 6KE39A. When the loop voltage falls below 30V, an optional lower voltage Zener diode can be used for enhanced protection.
The circuit is designed to safeguard sensitive components from voltage spikes that can occur in various electronic applications. The Zener diode D1 plays a crucial role in clamping the voltage to a specified level, preventing excessive voltage from damaging downstream components. The specified Zener voltage of 36V ensures that the circuit remains operational within its safe limits while allowing transient voltages to be effectively managed.
The four-diode rectifier bridge serves to convert alternating current (AC) to direct current (DC) while also providing protection against reverse polarity. This configuration is essential in applications where the supply voltage may occasionally reverse, as it helps to prevent damage to the circuit.
In scenarios where the loop voltage is observed to drop below 30V, the use of a lower voltage Zener diode is recommended. This adaptation enhances the protective measures of the circuit, ensuring that even under lower voltage conditions, the components remain safeguarded. The choice of Zener diodes, such as the 1N4753A or 6KE39A, allows for flexibility in design, enabling engineers to select a component that best fits the specific requirements of the application.
Overall, this circuit configuration exemplifies a robust approach to voltage regulation and protection, making it suitable for various electronic devices that require reliable operation in fluctuating voltage environments. As shown, the circuit uses the Zener diode D1 limits the surge voltage, use four diode rectifier bridge to prevent reverse voltage. Zener diode D1 is 36V, optional 1N4753A or P 6KE39A. When the loop voltage is below 30V, in order to increase protection, the optional lower tube voltage of D1.
Most power supplies regulate either their output voltage or current at a constant level, depending on the load resistance relative to the power supply's output voltage and current settings. This can be summarized as follows: To accomplish this, most power...
The simple voltage regulator circuit consists of a silicon regulator and a resistor. It is designed to rectify and filter DC voltage, as illustrated in the accompanying figure. The voltage regulator is connected in parallel with the load, and the...

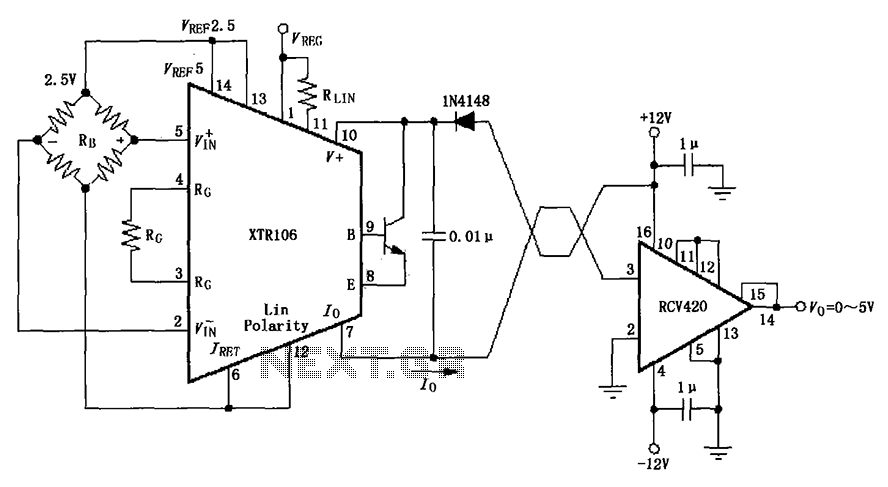

The IN4148 series diode is connected in the V+ line and configured in a loop to prevent damage from reverse voltage conditions. The diode exhibits a forward voltage drop of approximately 0.7V, which affects the supply voltage. The circuit includes...
The simple voltage regulator circuit consists of a silicon regulator and a resistor. It is designed to rectify and filter DC voltage, as illustrated in the accompanying figure. The voltage regulator is connected in parallel with the load, and the...
Using a single 555 Timer IC and a small transformer to generate a high voltage, this circuit will test zener diodes of voltage ratings up to 50VDC. The 555 timer is used in the astable mode, the output at pin3...
The electronic scheme provided can be used to design a Zener diode tester utilizing a few electronic components. This Zener tester, in conjunction with a multimeter, allows for the precise measurement of the threshold voltage of a Zener diode. The...
This circuit is designed for testing zener diodes. It connects to a 120V AC line and boosts the output voltage to over 300V, enabling the testing of zener diodes with various voltage ratings. The circuit features a push-button switch that...
The circuit regulates approximately 12V from the car battery down to 5V for use by an Atmel AVR microcontroller. The presence of two capacitors on each side of the linear regulator LM7805 raises questions regarding their purpose. It is suggested...

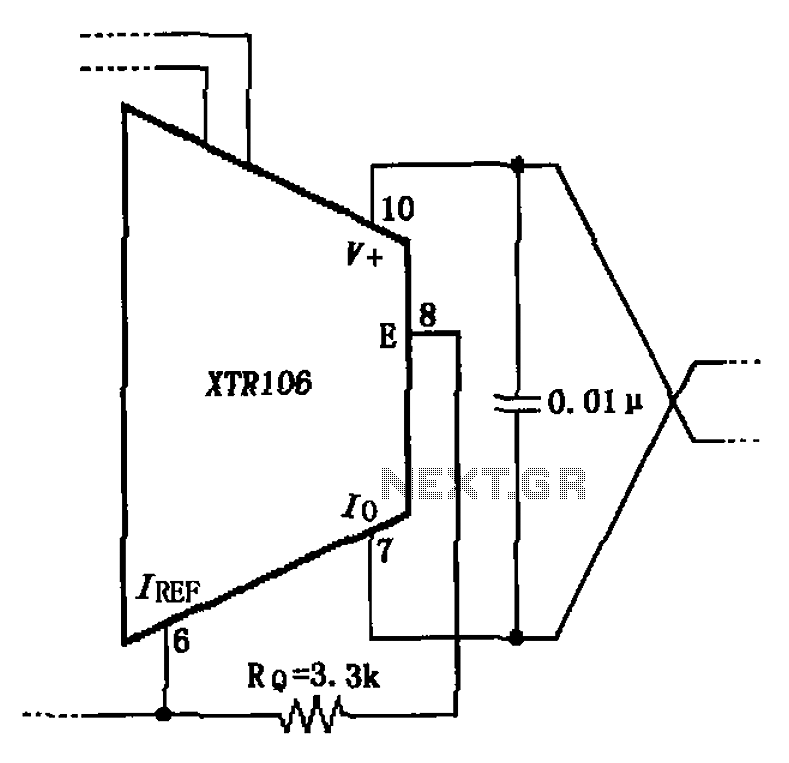

The circuit has been simplified due to the cancellation of an external transistor. The connection between the emitter terminals of the original external transistor and a 3.3k resistor will be removed, as this change has led to a decrease in...
