XTR106 and send RCV420 composed of 12V power supply reception circuit diagram of the ring
As shown, the diode IN4148 series in V + and loop to prevent line damage due to reverse device in the loop loss only 0.7V (silicon diode fo...
XTR106 no external transistor circuit diagram of work
As shown, the circuit is canceled due to an external transistor becomes simplified. The connection between both original external transisto...

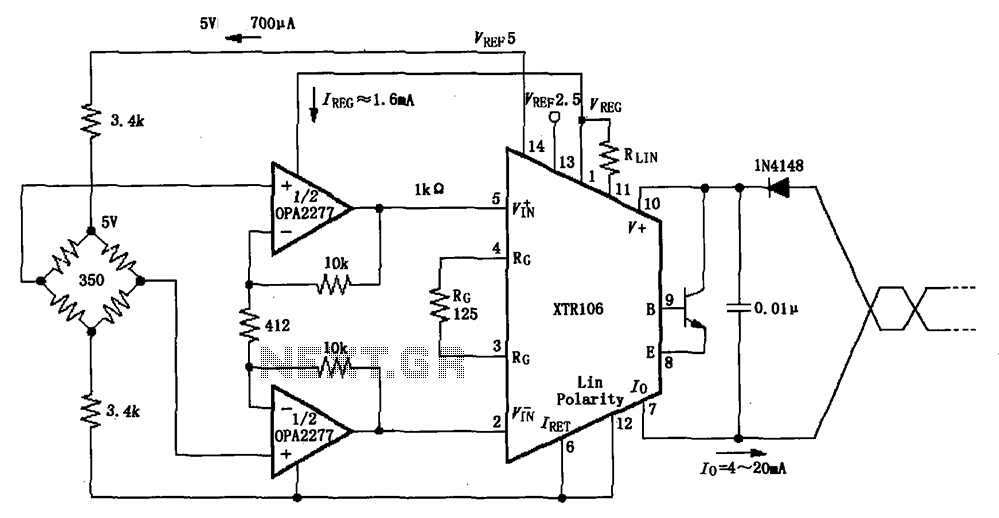

Has 50 times the pre-amplified bridge circuit diagram XTR106
As shown in FIG, XTR106 has two internal source voltage (2.5V and 5V) to provide incentives, and therefore can be adapted to a wide range o...
