LED Dice circuit
Description: The IC1 is a 555 timer IC connected for astable operation. The clock pulses are fed to the IC2 via the 10K resistor. The IC2 is a 10-stage counter; output 6 (pin 5) is connected to RESET (pin 15), thus giving a 6-stage counter with outputs 0 to 5. Six LEDs are connected as three pairs, thus requiring four different signals. These signals come from the four transistors, which are connected to the necessary outputs of the IC2. Where a transistor is operated from more than one output, diodes are used to avoid a short circuit situation between outputs. Pin 13 of the IC2 (INHIBIT) is connected to +ve via a 100K resistor to stop the counter from advancing; however, pressing the S1 [START] button will connect pin 13 to the 0V line and allow the counter to advance, hence throwing the dice. The circuit supply can use a 9V battery or an external pack from 9 to 12V. The D7 to D15 LEDs are connected as described to make a dice.
The circuit described utilizes a 555 timer IC (IC1) configured in astable mode, generating a continuous square wave output. This output acts as a clock signal for a decade counter IC (IC2), specifically the 4017B, which counts from 0 to 9. The output pin 5 of the 4017B is connected to the reset pin (pin 15), ensuring that the counter resets after reaching the sixth output (output 6). This configuration effectively limits the counting to six distinct states, corresponding to the six faces of a die.
The output states of the 4017B are utilized to control a set of six LEDs, arranged in pairs to represent the numbers on a die. Each pair of LEDs is controlled by a transistor (Q1 to Q4), which acts as a switch. The transistors are driven by the outputs of the 4017B, with diodes placed in parallel to prevent backfeeding and potential short circuits when multiple outputs are activated simultaneously.
To enable or disable the counter advancement, pin 13 (INHIBIT) of the 4017B is connected to the positive supply through a 100K resistor. This configuration keeps the counter inactive until the START button (S1) is pressed, which connects pin 13 to ground (0V), allowing the counter to begin counting.
The circuit can be powered by a 9V battery or an external power supply ranging from 9V to 12V, providing flexibility in power source selection. The components specified include resistors (R1 to R9) with values ranging from 1K to 100K ohms, capacitors (C1 and C2), and diodes (D1 to D6) for signal routing. The use of red 5mm LEDs (D7 to D13) ensures visibility of the outputs, effectively simulating the random nature of a dice throw. The circuit is designed to be compact, with a 4-pin connector (SL1) facilitating easy connections for the LEDs and other components.The IC1 is a 555 timer IC is connected for, Astable operation the clock pulses are fed to the IC2 via the 10K resistor. The IC2 is a 10 stage counter, output 6 (pin 5) is connected to RESET (pin 15), thus giving us a 6 stage counter , outputs 0 to 5.
The 6 of the LEDs are connected as 3 pairs, thus requiring 4 different signals, these signals come from the 4 transistors, which in turn are connected to the necessary outputs of the IC2. Where a transistor is operated from more than one output, diodes are used to avoid a short circuit situation between outputs.
Pin 13 of the IC2 (INHIBIT) is connected to +ve via a 100K resistor to stop the counter from advancing, however pressing the S1 [START] button will connect pin 13 to 0V line and allow the counter to advance, hence, throwing the dice. The circuit supply can use a 9V battery or external pack 9 until 12V. The D7 until D15 LED?s connected as Fig.2 to make a dice. R1-2=2.2Kohms C1=22uF 25V IC2=4017B R3=10Kohms C2=10nF 100V MKT Q1....4=BC550 R4=100Kohms D1.......6=1N4148 S1=Normal Open Push switch R5.....8=8.2Kohms D7.......13=Red Led 5mm SL1=4pin connector 2.54mm step R9.....5=1Kohms IC1=NE555 or LM555 BATT=9V battery or 12V ext.
The circuit described utilizes a 555 timer IC (IC1) configured in astable mode, generating a continuous square wave output. This output acts as a clock signal for a decade counter IC (IC2), specifically the 4017B, which counts from 0 to 9. The output pin 5 of the 4017B is connected to the reset pin (pin 15), ensuring that the counter resets after reaching the sixth output (output 6). This configuration effectively limits the counting to six distinct states, corresponding to the six faces of a die.
The output states of the 4017B are utilized to control a set of six LEDs, arranged in pairs to represent the numbers on a die. Each pair of LEDs is controlled by a transistor (Q1 to Q4), which acts as a switch. The transistors are driven by the outputs of the 4017B, with diodes placed in parallel to prevent backfeeding and potential short circuits when multiple outputs are activated simultaneously.
To enable or disable the counter advancement, pin 13 (INHIBIT) of the 4017B is connected to the positive supply through a 100K resistor. This configuration keeps the counter inactive until the START button (S1) is pressed, which connects pin 13 to ground (0V), allowing the counter to begin counting.
The circuit can be powered by a 9V battery or an external power supply ranging from 9V to 12V, providing flexibility in power source selection. The components specified include resistors (R1 to R9) with values ranging from 1K to 100K ohms, capacitors (C1 and C2), and diodes (D1 to D6) for signal routing. The use of red 5mm LEDs (D7 to D13) ensures visibility of the outputs, effectively simulating the random nature of a dice throw. The circuit is designed to be compact, with a 4-pin connector (SL1) facilitating easy connections for the LEDs and other components.The IC1 is a 555 timer IC is connected for, Astable operation the clock pulses are fed to the IC2 via the 10K resistor. The IC2 is a 10 stage counter, output 6 (pin 5) is connected to RESET (pin 15), thus giving us a 6 stage counter , outputs 0 to 5.
The 6 of the LEDs are connected as 3 pairs, thus requiring 4 different signals, these signals come from the 4 transistors, which in turn are connected to the necessary outputs of the IC2. Where a transistor is operated from more than one output, diodes are used to avoid a short circuit situation between outputs.
Pin 13 of the IC2 (INHIBIT) is connected to +ve via a 100K resistor to stop the counter from advancing, however pressing the S1 [START] button will connect pin 13 to 0V line and allow the counter to advance, hence, throwing the dice. The circuit supply can use a 9V battery or external pack 9 until 12V. The D7 until D15 LED?s connected as Fig.2 to make a dice. R1-2=2.2Kohms C1=22uF 25V IC2=4017B R3=10Kohms C2=10nF 100V MKT Q1....4=BC550 R4=100Kohms D1.......6=1N4148 S1=Normal Open Push switch R5.....8=8.2Kohms D7.......13=Red Led 5mm SL1=4pin connector 2.54mm step R9.....5=1Kohms IC1=NE555 or LM555 BATT=9V battery or 12V ext.
Transistorized flasher
This simple circuit will flash a 6-volt lamp at a rate determined by the size of capacitor C1. It is most economical on power as it only draws current when the lamp is on. When the lamp is off, both...
simple fluorescent inverter project
Fluorescent tubes contain mercury, which poses health risks. Improper disposal of these tubes is harmful to both the environment and health; therefore, recycling is a beneficial option. The 555 timer IC is utilized to generate a square wave voltage of...

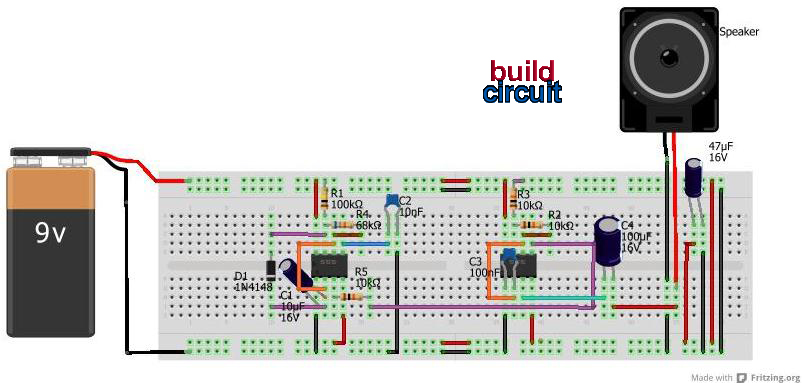

light activated police siren using 555 timer
This project involves a simple light-activated police siren utilizing a light-dependent resistor (LDR) and an NE555 timer. It is advisable to complete some preliminary projects before attempting this one. The NE555 timer, configured in slow astable mode with a resistor...
Siren Circuits using timer 555
This month I am making 3 different types of siren circuits based on the 555 timer. The first circuit simulates the siren of a British police car. It uses two 555 timers in the circuit. The 555 on the right...
LED Night Lamp
This circuit is usable as a Night Lamp when a wall mains socket is not available to plug-in an ever running small neon lamp device. In order to ensure minimum battery consumption, one 1.5V cell is used, and a simple...
LED Flasher with 555
This is a very basic circuit for flashing one or more LEDs and also to alternately flash one or more LEDs. It uses a 555 timer setup as an astable multivibrator with a variable frequency. With the preset at its...
Intermittent start and stop cycle control circuit Five of a
The circuit depicted in Figure 3-80 is responsible for controlling a portion of the transistor multivibrator. A multivibrator serves as a robust positive and negative feed-forward amplifier, consisting of two branches that are interconnected through a coupled RC timing circuit,...

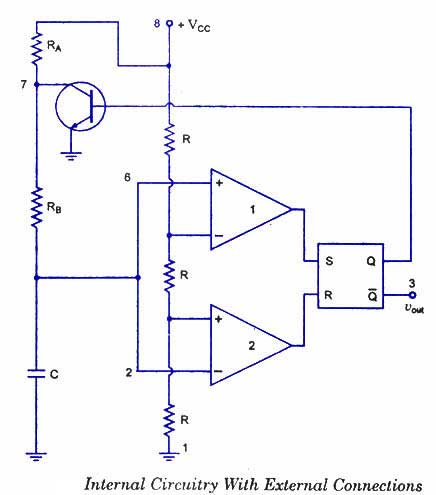

designing 555 timer ic as an astable multivibrator
