Simple Audio Amplifier Circuit Using LM386 PCB
Description: This is a simple low-power audio amplifier circuit capable of producing a power output of 1W. The mono amplifier circuit is built around the LM386 integrated circuit, which operates effectively at low voltages, even below 9V. This low-voltage amplifier is designed to amplify weak sound signals from a sound card, making it suitable for driving headphones or high-power amplifiers for maximum sound effect.
The audio amplifier circuit utilizes the LM386, a low-voltage audio power amplifier IC that is popular in various audio applications due to its simplicity and efficiency. The typical configuration for this circuit includes a few passive components such as resistors and capacitors to set the gain and filter the audio signals.
In this specific design, the gain of the LM386 can be adjusted by connecting a resistor and capacitor between pins 1 and 8, allowing for flexibility in amplification levels. A gain of 20 is the default, but it can be increased up to 200 with the appropriate external components.
Power supply requirements for this circuit are minimal, with an operating voltage range from 4V to 12V, making it ideal for battery-powered applications. The output stage of the LM386 is capable of delivering up to 1W into an 8-ohm load, which is sufficient for driving small speakers or headphones.
To ensure optimal performance, a bypass capacitor is typically placed close to the power supply pins to filter out any high-frequency noise that may affect audio quality. Additionally, decoupling capacitors may be included to stabilize the power supply and minimize distortion.
The circuit can be further enhanced by incorporating a heat sink if the amplifier is operated at higher volumes for extended periods, as the LM386 can generate heat during operation. Proper layout and grounding techniques should also be employed to minimize interference and ensure a clean audio signal.
Overall, this LM386-based audio amplifier circuit provides a cost-effective solution for low-power audio amplification needs, making it suitable for various applications including portable audio devices, DIY projects, and educational purposes.Here is a simple low power audio amplifier circuit that can produce a power output of 1W. This mono amplifier circuit is build on LM386 IC which works great on low voltages even below 9V. This low voltage amplifier is useful to amplify weak sound signals from your soundcard to amplify it to give to the headphones or high power amplifiers for maxim um sound effect.
The audio amplifier circuit utilizes the LM386, a low-voltage audio power amplifier IC that is popular in various audio applications due to its simplicity and efficiency. The typical configuration for this circuit includes a few passive components such as resistors and capacitors to set the gain and filter the audio signals.
In this specific design, the gain of the LM386 can be adjusted by connecting a resistor and capacitor between pins 1 and 8, allowing for flexibility in amplification levels. A gain of 20 is the default, but it can be increased up to 200 with the appropriate external components.
Power supply requirements for this circuit are minimal, with an operating voltage range from 4V to 12V, making it ideal for battery-powered applications. The output stage of the LM386 is capable of delivering up to 1W into an 8-ohm load, which is sufficient for driving small speakers or headphones.
To ensure optimal performance, a bypass capacitor is typically placed close to the power supply pins to filter out any high-frequency noise that may affect audio quality. Additionally, decoupling capacitors may be included to stabilize the power supply and minimize distortion.
The circuit can be further enhanced by incorporating a heat sink if the amplifier is operated at higher volumes for extended periods, as the LM386 can generate heat during operation. Proper layout and grounding techniques should also be employed to minimize interference and ensure a clean audio signal.
Overall, this LM386-based audio amplifier circuit provides a cost-effective solution for low-power audio amplification needs, making it suitable for various applications including portable audio devices, DIY projects, and educational purposes.Here is a simple low power audio amplifier circuit that can produce a power output of 1W. This mono amplifier circuit is build on LM386 IC which works great on low voltages even below 9V. This low voltage amplifier is useful to amplify weak sound signals from your soundcard to amplify it to give to the headphones or high power amplifiers for maxim um sound effect.
lm3875 high audio amplifier 56w

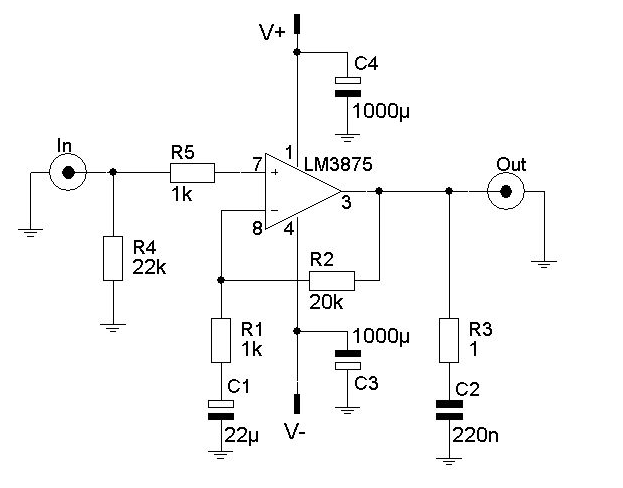

The LM3875 is a high-power audio amplifier capable of delivering 56W of continuous average power to an 8-ohm load. Its performance is enhanced by maximum instantaneous auto temperature protection circuitry, placing it in a superior class compared to discrete and...
Audio Graphic Equaliser
Audio Graphic Equalizer. Audio graphic equalizers are widely used as commercial products in high-fidelity systems, car audio, and stage applications; however, circuits for these devices are seldom published.
Audio graphic equalizers are essential tools in audio processing, allowing users to adjust...
Low distortion audio gain limiter
The level at which the limiter activates in audio can be adjusted using the LIMIT LEVEL selector knob. When this threshold is surpassed, the output of the half-limiting detector within the op-amp, functioning as a comparator, triggers the LED, leading...
Power Amplifier Mini 2W+2W by TBA820M
The circuit is designed to amplify telephone signals using a 2W+2W amplifier with an 8-ohm loudspeaker. It provides adequate sound output while maintaining good audio quality. The primary component of this telephone amplifier circuit is the IC LF351, which enhances...
Three-Level Audio Power Indicators
This circuit indicates audio output power using three LEDs. It serves as a useful addition to an amplifier.
The audio output power indicator circuit is designed to visually represent the power level of an audio amplifier through the use of three...
LM390 Bass Amplifier
This circuit is a mono audio amplifier that will boost low frequencies as you see at the frequency response. The circuit is suitable for driving a subwoofer speaker for example. The output power of the circuit is about 1 Watt...
Audio Compressor Circuit
This compressor will compress a 25-mV peak-to-peak (p-p) audio signal to a 20-V p-p output, maintaining input levels between 1.5 V p-p and 3.5 V p-p, with a frequency response ranging from 7 Hz to 67 kHz. It is suitable...
Automatic Fader Circuit
In this circuit, audio input to the control channel is amplified and rectified by diodes D1 and D2. This direct current level activates LED D3 through transistor Q2. The illumination from LED D3 causes R9, a light-dependent resistor, to reduce...
