Results tagged #Lm386 in Circuits

Electronic devices yell LM386 PT-8830

Electronic circuit shown in Figure crying, which consists of voice recording, audio power amplifier and power supply circuit composed of thr...

LM386 making music with a voice-activated lights circuit

VD1, VD2, C1 and C2 form a simple half-wave rectifier capacitor step-down voltage regulator circuit, the output of about 12V in straight rig...

LM386 Audio Amplifier

I picked up an LM386 Low Voltage Audio Amplifier. A little poking around and I found National Semiconductor`s data sheet, showing a schemati...

LM386 Audio Amplifier Chip

Terminals 1 and 8 represent the gain control of the amplifier. These are the terminals where you can adjust the gain by placing a resistor a...

Pre mic audio amplifier with ic LM386

This circuit be signal sound expansion from condenser microphone give with small-sized loudspeaker. It compose the importance is part pre mi...

National LM386 Audio Power Amplifier Datasheet for Battery Operation

This device has 24 milliwatts quiescent power drain when operating from 6 V supply in which making the LM386 ideal for battery operation. It...

LM 386 Audio Amplifier

LM 386 Audio Amplifier LM386 is one of the earliest audio ICs but is still going strong. It works with a few external components and is indi...

Door Phone circuit

Door Phone , LM 386 is just right for a door phone application. It is very useful application in the present urban households. One condenser...

LM386 Audio Amplifier Circuit

The integrated chip LM386 is a low power audio frequency amplifier requiring a low level power supply (most often batteries). It comes in an...

LM386 Low Voltage Audio Power Amplifier

The LM386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part...

LM386 voice audio power amplifier circuit design project

Using LM386 power amplifier designed for use in low voltage consumer applications can be designed a very simple voice amplifier with variabl...

Doorphone Intercom by IC LM386

From this LM386 circuits we modify is this simple Doophone intercom. you can build them. read below. In this doorphone circuit,an 8 ohm spea...

amplifier audio small to use with 9v battery operated

When entering the power supply 9-volt circuit IC1 number LM386 amplifier IC size is 300-800 mW, Depending on the power supply circuit with, ...

Signal Tracer

The main part of this circuit is the LM386 amplifier chip. It also uses a transistor input to buffer the input signal and provide extra gain...

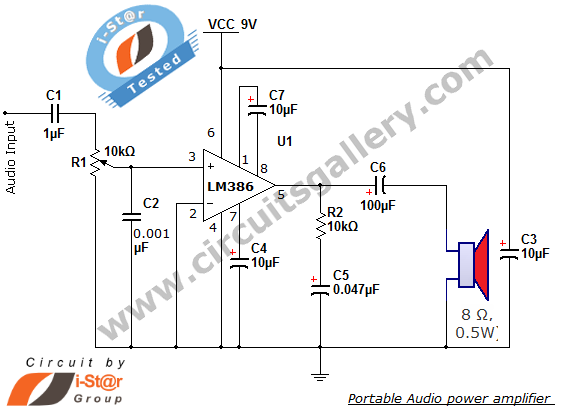

Simple portable Audio power amplifier circuit using LM386 IC

Here i-St@r comes with thesimplest mini audio amplifier circuitschematicusing LM386 low voltage audio power amplifier IC. This circuit is ap...

Very Simple Bench Amplifier

A small 325mW amplifier with a voltage gain of 200 that can be used as a bench amplifier, signal tracer or used to amplify the output from p...

simple example circuits for the lm386 ic audio amplifier

...

mixing and volume

I built the LM386 amplifier section, and it pretty much works. I purchased a five-conductor headphone jack, which passes the left and right ...

signal tracer using lm386 amplifier chip

The main part of this circuit is the LM386 amplifier chip. It also uses a transistor input to buffer the input signal and provide extra gain...

IR Bug

The amplified signal is fed to the melody generator via resistor R5. The output of the melody generator is fed to LM386 low-power audio ampl...

noise LM386 audio amplifier not amplifying

First I tried connecting the circuit to a 9V battery. (Multimeter reads around 8. 3 Volts, which is in the operating voltage range of the LM...

amplifier LM386 amp circuit lag

I`ve got a button which I use as a push to talk switch. This works for the most part, however when I press the button it takes a good 5 seco...

oscillator Is this a suitable sine wave osc? how would I control the frequency

As I`m working from a single power supply and I`m trying to keep the design small, I`ve been using the LM386n-1 IC. Also, how would you sugg...

Signal Tracer

The main part of this circuit is the LM386 amplifier chip. It also uses a transistor input to buffer the input signal and provide extra gain...

oscillator circuit

Here`s a small LM386-based square-wave oscillator built from the following schematic. I replaced the 30k resistor with a 50k Potentiometer f...

Af Power Oscillator Circuit

An LM386 audio power IC is set up as a feedback oscillator. Any supply from 6 to 12 V can be used. ...

Low Power Amplifier LM386

A power amp designed for use in low voltage, especially battery-operated, applications. For minimum parts count, C1 and C2 can be omitted. ...

Basic LM386 audio amplifier schematic

The Tiny Audio Amplifier kit is a good choice for battery operation. It is based on LM386 IC. Power supply - 6 - 12 VDC. Output power - 1 W...

1 Watt amplifier using LM386

This circuit is a signal line so that you reinforce with a small speaker can control. The LM 386 is a number of versions available. LM 386N...

Small LM386 Amplifier

This is one of my favorites. The LM386 is a low voltage audio power amplifier. It can provide 125mW to 750mW, enough for any project that us...

Simple LM386 amplifier

The main part of this circuit is the LM386 amplifier chip. It also uses a transistor input to buffer the input signal and provide extra gain...
