Spike Guard
#spike protection
#lightning discharge
#safety capacitor
#gas tube arrester
#telephone line protection
#EPBX
#modem protection
#surge protection
#circuit safety
Description: This circuit is designed to protect telephones, EPBX systems, telephone modems, and similar devices from lightning discharges or line spikes. It employs a safety capacitor and a gas tube arrester to prevent damage to the devices. While the circuit is straightforward, its functionality is significant. The primary component of the circuit is a gas discharge tube.
The circuit operates by diverting excess voltage away from sensitive equipment during a surge event. The gas discharge tube (GDT) acts as a protective element that triggers when the voltage exceeds a certain threshold, allowing the excess current to flow through it instead of damaging the connected devices. The safety capacitor serves to smooth out any transient voltage spikes, thereby further protecting the equipment.
In a typical configuration, the gas discharge tube is connected in parallel with the telephone line. When a voltage spike occurs, the GDT ionizes and creates a low-resistance path, effectively shunting the surge to the ground. This action protects the downstream devices from the high voltage. The safety capacitor, placed in series with the line, helps to filter out high-frequency noise and transients, ensuring that only the normal operating voltage is present across the devices.
The circuit may also include additional components such as fuses or circuit breakers to provide further protection against overcurrent situations. The choice of the gas discharge tube should be based on the maximum expected surge voltage and the operational characteristics of the devices being protected. Proper grounding of the circuit is essential to ensure effective surge protection, as this allows the diverted energy to safely dissipate into the earth.
Overall, this protective circuit is a vital addition to any telecommunication setup, providing a reliable means of safeguarding against potentially damaging electrical surges. Its simple design makes it easy to implement, while its effectiveness in protecting sensitive electronic devices cannot be overstated.Here is a simple circuit to protect your Telephone, EPBX, Telephone Modem etc from lightning discharge or line spikes. It uses a safety capacitor and Gas Tube Arrester to prevent damage of the devices The circuit is too simple but its use is great.
The main elements of the circuit are a Gas Discharge Tube.
The circuit operates by diverting excess voltage away from sensitive equipment during a surge event. The gas discharge tube (GDT) acts as a protective element that triggers when the voltage exceeds a certain threshold, allowing the excess current to flow through it instead of damaging the connected devices. The safety capacitor serves to smooth out any transient voltage spikes, thereby further protecting the equipment.
In a typical configuration, the gas discharge tube is connected in parallel with the telephone line. When a voltage spike occurs, the GDT ionizes and creates a low-resistance path, effectively shunting the surge to the ground. This action protects the downstream devices from the high voltage. The safety capacitor, placed in series with the line, helps to filter out high-frequency noise and transients, ensuring that only the normal operating voltage is present across the devices.
The circuit may also include additional components such as fuses or circuit breakers to provide further protection against overcurrent situations. The choice of the gas discharge tube should be based on the maximum expected surge voltage and the operational characteristics of the devices being protected. Proper grounding of the circuit is essential to ensure effective surge protection, as this allows the diverted energy to safely dissipate into the earth.
Overall, this protective circuit is a vital addition to any telecommunication setup, providing a reliable means of safeguarding against potentially damaging electrical surges. Its simple design makes it easy to implement, while its effectiveness in protecting sensitive electronic devices cannot be overstated.Here is a simple circuit to protect your Telephone, EPBX, Telephone Modem etc from lightning discharge or line spikes. It uses a safety capacitor and Gas Tube Arrester to prevent damage of the devices The circuit is too simple but its use is great.
The main elements of the circuit are a Gas Discharge Tube.

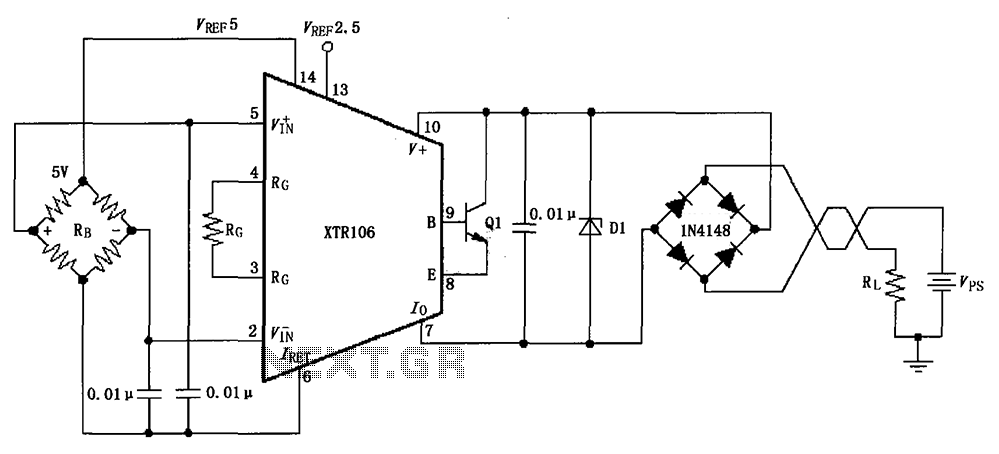

Reverse voltage and over-voltage surge protection circuit diagram XTR106
