Cloth from idling stop saving circuit
Female textile machine power control circuit shown in a diagram, VTH1-VTH3 is TRIAC, R, and C is the absorption line, Rz is triggering the c...
Stepless triac dimmers
Closed lights switch S, 220V AC via RP1, RP2 R and the capacitor C2 is charged when the voltage across C2 reaches diac breakover voltage of...
Stepless triac dimmer with a steady light function
Circle S2 is stable automatic light switch, when S2 is open, the entire circuit is Subsection II SCR stepless presentation dimmer, simply o...
Triac dimming circuit diagram

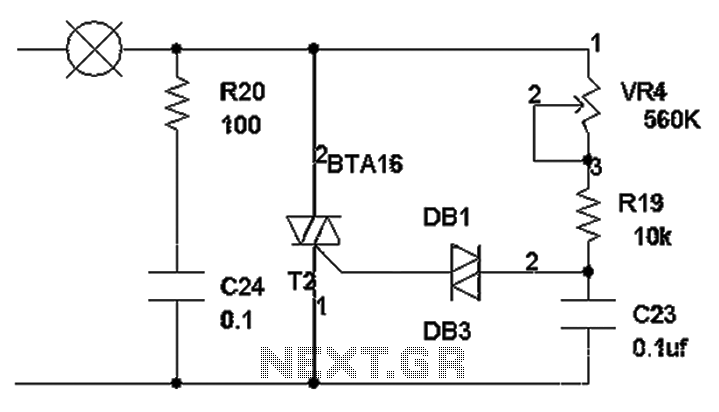

As shown for the TRIAC dimmer circuit diagram, working principle is: power, 220V lamp VR4 R19 through C23 charge. Because of two-terminal v...
With triac light control lamp 1
And the section of the circuit is similar, with the solid photoresistor RG fixed resistor Rl also form a voltage divider. Light-emitting dio...
KTM03 type of circuit for controlling the triac
Adjustment potentiometer RP, the voltage on the load Rfz Uh set value. By RPz real now closed loop control. Open-loop control works, as long...
Digital triac circuit diagram
A simple digital circuit is shown can be used to precisely control the AC power supply, the circuit is no digital to analog conversion circu...
Triac lights automatically switch schematic
200W lamp switch control, power supply voltage is 220V, is about 100lx illumination light automatically turned on or off. In the ambient lig...
Triac lights automatically switch schematic
200W lamp switch control, power supply voltage is 220V, is about 100lx illumination light automatically turned on or off. In the ambient lig...
Triac motor drive circuit
Triac motor drive circuit b Shows the motor drive circuit TRIAC TRIAC has been called solid state relays. Figure (a) shows a circuit configu...
TRIAC LAMP DIMMER
...
TRIAC LAMP DIMMER
Using a heatsink, the TRIAC (TR1) can handle up to 350 watts. The neon lamp, I1, won`t trip the gate until after it conducts and using R1, s...
TRIAC DIAC REVERSING SERVO CONTROL
Varies speed and direction of 5-amp reversible series ac motor in accordance with d-c control signal. Polarity of control signal determines ...
Simple full wave power control circuit using a triac
...
800 watt triac light dimmer with silicon bilateral switch SBS
...
800 watt soft start triac light dimmer
...
Triac temperature sensitive heater control
Triac temperature-sensitive heater control. This circuit can be modified as shown to control a motor with a constant load. As shown the circ...
TRIAC
The TRIAC is a three-terminal device similar in construction and operation to the SCR. The TRIAC controls and conducts current flow during b...
High Power AC Light Dimmer
This is a light dimmer circuit. It has no fancy special feature, it is a a quite typical TRIAC based dimmer circuit. This circuit is only us...
High Power AC Light Dimmer
This is a light dimmer circuit. It has no fancy special feature, it is a a quite typical TRIAC based dimmer circuit. This circuit is only us...
TRIAC dimmer light circuit with dual time constant
In order to solve the lag and light transition phenomena, it can use the Triac dimming light circuit shown in the figure with dual time cons...
TRIAC dimmer light circuit with dual time constant
In order to solve the lag and light transition phenomena, it can use the Triac dimming light circuit shown in the figure with dual time cons...
START UP CONTROL
Bidirectional three-layer trigger for triac allows triggering on both half-cycles at point determined by setting of 1-megohm pot. Triac rati...
START UP CONTROL
Bidirectional three-layer trigger for triac allows triggering on both half-cycles at point determined by setting of 1-megohm pot. Triac rati...
Safe Sync to Adapt Digital Camera to Higher Voltage Flash
This circuit adds a datasheet-compliant trigger signal, reversed polarity protection, optional test button, and optional battery operation. ...
Safe Sync to Adapt Digital Camera to Higher Voltage Flash
This circuit adds a datasheet-compliant trigger signal, reversed polarity protection, optional test button, and optional battery operation. ...
Triac light driver
Controlling room lighting using computer. I bought some triacs and opto couplers to do this. I drew the schematic and built a prototype. Eve...
Small Triac Switch
In order to switch some floodlights by my Arduino, the small switch circuits I built around a 39mf22 were just not man enough to handle the...
TRIAC Light Dimmer Circuit
This little circuit can be used to dim lights up to about 350 watts. It uses a simple, standard TRIAC circuit that, in my expirience, genera...
ES-150
A light dimmer that uses TRIAC & DIAC. Controls the brightness of light bulbs. Based on the standard dimmer circuit. A few additional parts ...
Light Sensitive Staircase Switch with Triac
Light Sensitive Staircase Switch with Triac , Operation of the third circuit is much similar except that it has photo sensitivity. The circu...
Time Delay Switch with Triac
This time delay switch circuit is useful to switch on an AC load such as lamps after the delay of three minutes. This protects the load from...
Flashing Light with Triacs
This flashing light circuit uses triacs to generate an intermittent light with variable frequency. Additional components are the D1 diode an...
AC Motor Speed Controller Circuit
This triac-based 220V AC motor speed controller circuit is designed for controlling the speed of small household motors like drill machines....
Optimizing the Triacs
Modern power control systems utilize electronic devices like Thyristors for power switching, phase control, chopper etc. These devices also ...
The TRIAC
SCRs are unidirectional (one-way) current devices, making them useful for controlling DC only. If two SCRs are joined in back-to-back parall...
Triac Tutorial about its Construction and Operation
...
Triac-SCR-Thyristor
A Center tap 50Hz Step Down Transformer with two diodes is used to get a train of Positive Sine Pulses at 100Hz which is applied to Q6 base ...
TRIAC Switch To Control High-Voltage Devices
From ages electron-magnetic relays are being used as switches to control high voltage devices. But, because of their bulky size and noise (b...
how trigger bt136
i had a problem while designing a circuit in which BT 136TRIAC has to be triggered from a half rectified current of 30 mA at about 6V. Its n...
switching ac loads triac
A circuit to turn on/off a couple of big AC solenoid valves and a couple of 1ph ac motors. my line v is 132VAC and the solenoids measure 1A ...
AC lights dimmer with triac
This circuit has can to turn down a light bulb arrives at 100W. If Triac there is tall temperature should hold Heat Sink or let off the heat...
1200 Watt AC Dimmer by Triac Q4006LT
This is Power AC Dimmer 1200 watt size. It is use a triac Q4006LT. Friends ever tour is the foreign land has and to ever reach rest a hotel....
Power Flip-Flop Using A Triac
Modern electronics is indispensable for every large model railroad system, and it provides a solution to almost every problem. Although read...
DC Control for Triacs
If a circuit is to switch a mains voltage, a relay is a simple solution in cases where switching times are long and high currents are involv...
Mains clearance in a TRIAC driver
A TRIAC driver board for use with my reflow toaster oven project, which means mains voltages. IPC-2221 says that U. S. mains voltages requir...
triac for this light dimmer circuit
Hi all I made this circuit to be a light dimmer but it did not work. I use BT136 for the SCR and MOC3022 for optocoupler. Can you tell me wh...
A Phase Controlled Triac (HT-32)
The following circuit shows about A Phase Controlled Triac (HT-32) Circuit Diagram. Features: Dsimple circuit, bilateral trigger diacs offer...
Triac-Construction and Operation
The triac is another three-terminal ac switch that is triggered into conduction when a low-energy signal is applied to its gate terminal. Un...
Triac Applications
Next to SCR, the triac is the most widely used member of the thyristor family. In fact, in many of control applications, it has replaced SCR...
