Transformerless Power Supply
WARNING: Don`t touch any part of the circuit when the circuit is running (connected to the powerline), this circuit is not isolated from m...
Transformerless Power Supply 30V 1A
This transformerless power supply circuit is designed for medium current applications. During the negative half period, the capacitor C5 is ...
Transformerless Power Supply 30V 1A
This transformerless power supply circuit is designed for medium current applications. During the negative half period, the capacitor C5 is ...
Transformerless 5 Volt Power Supply
An increasing number of appliances draw a very small current from the power supply. If you need to design a mains powered device, you could ...
Transformerless 5 Volt Power Supply circuit
An increasing number of appliances draw a very small current from the power supply. If you need to design a mains powered device, you could ...
Transformerless Power Supply
A power supply project without using a power supply. This can save the expense of buying a transformer, but presents potentially lethal volt...
Transformerless Power Supply
Transformerless Power Supply Circuit Diagram. Selection of the Dropping capacitor and the circuit design requires some technical knowledge a...
transformerless low cost power supply
In Capacitor Power Supplies we use a Voltage Dropping Capacitor in series with the phase line. An ordinary capacitor should not be used in t...
Transformerless Power Supply 30V 1A
This transformerless power supply circuit is designed for medium current applications. During the negative half period, the capacitor C5 is ...
Transformerless Power Supply
This circuit will supply up to about 20ma at 12 volts. It uses capacitive reactance instead of resistance; and it doesn t generate very much...
Transformerless 5 Volt Power Supply
An increasing number of appliances draw a very small current from the power supply. If you need to design a mains powered device, you could ...
Low Voltage Power Supply Without Transformer
The circuit diagram was designed to create a power supply without utilizing any transformer circuit. This circuit illustrates the advantages...
Transformerless Power Supply Circuit-Ouputs 5 Volt DC
A simple transformerless power supply circuit with diagram and schematics that gives 5 volts dc output.This is a low cost,low current power ...
5V transformer less power supply
Here is the circuit diagram of a 5V transformer less power supply using minimum components. The working of this circuit is quite simple. Res...
Low Power 12V Transformerless Power Supply
Many circuits can be powered directly from the mains with the aid of a series capacitor (C1). The disadvantage of this approach is that usua...
make a transformerless power supply
...
transformerless power supply fet
Transformerless power supply FET power supply. Go to that page to read the explanation about above power supply related circuit diagram. Is ...
5v 100ma max transformetless power
It can provide power to circuit that uses less than 100mA without any problem. The disadvantage of this circuit is the danger of an electric...

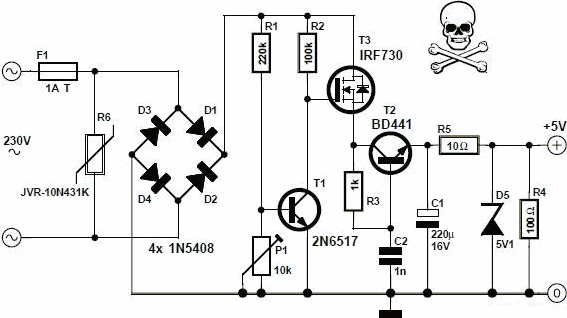

Simple Transformerless 5 Volt Power Supply
An increasing number of appliances draw a very small current from the power supply. If you need to design a mains powered device, you could ...

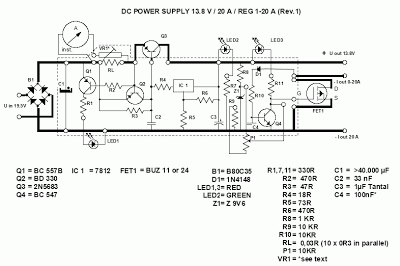

20A Transformerless Power Supply Schematic Diagram
This PSU has been abnormally advised in place of current-hungry ham telephone system transceivers. It delivers vigilantly in relation to 20A...
12volt-transformerless-power-supply.html
This is a 12V 100mA Transformerless power supply in support of low current applications. C1 is the X rated AC capacitor so as to reduces cli...
Transformerless Power Supply
By selecting capacitors, various voltages can be obtained from this supply. Notice that C2 through C7 must be ...
Transformerless-annunciator
This circuit does not require an output transformer or an output coupling capacitor; the annunciator can easily be turned on or off by a con...
5V transformerless Power Supply
I use this power supply for applications that doesn't use too mucho power. It can provide power to circuit that uses less than 100mA without...
Transformerless PSU
This circuit will supply up to about 20ma at 12 volts. It uses capacitive reactance instead of resistance; and it doesn`t generate very much...
Transformerless Power Supply
I have received a few emails asking for a transformerless power supply. Here is such a supply. This supply uses no heavy step down transform...
