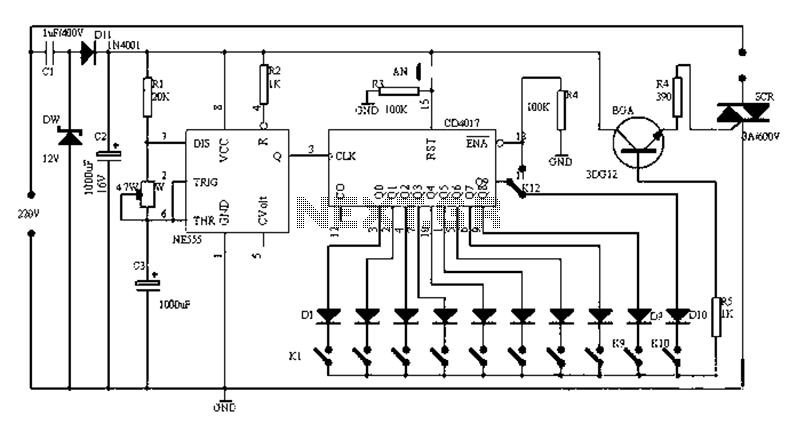

Universal electronic timer circuit diagram
Figure 1-1 The general-purpose timer once timing of 5 minutes to 18 hours; the timing cycle from 5 minutes to 20 hours; the total time of th...

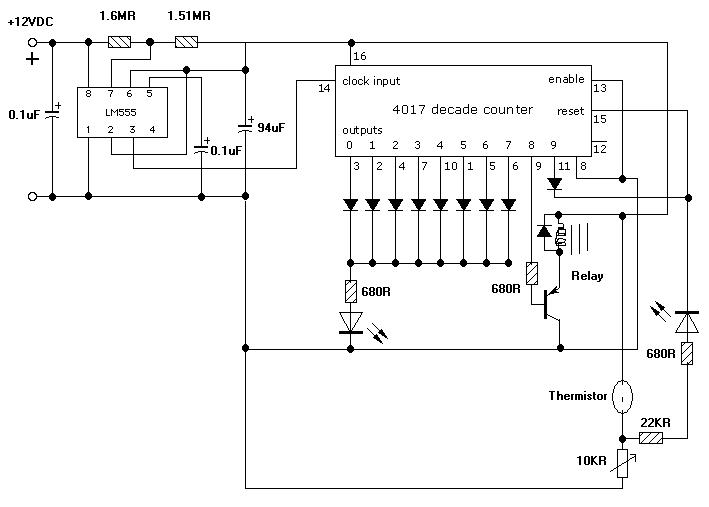

Frequency electromagnetic RBI timer CD4017
Electromagnetic RBI timer simple structure, low price, high school physics experiment teaching is one of the most widely used instruments. T...
Discharge time relay circuit
Discharge time relay circuit The timer field effect tube, and therefore have a high timing accuracy, timing and so long. When the R3-IOOOMfl...
Discharge time relay circuit
Discharge time relay circuit The timer field effect tube, and therefore have a high timing accuracy, timing and so long. When the R3-IOOOMfl...

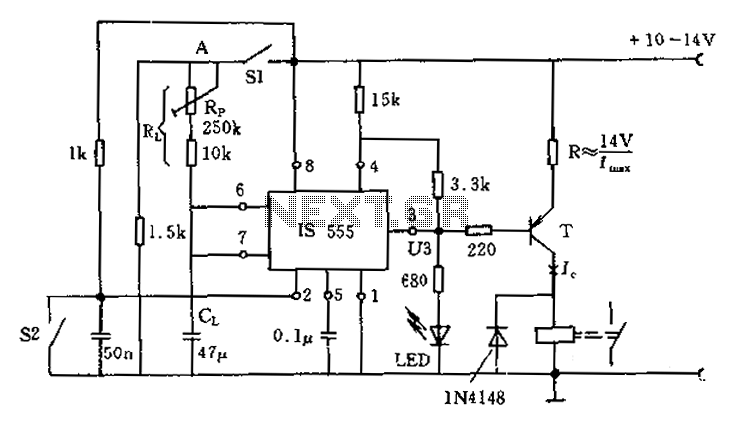

Car or room timer alarm circuit diagram
Circuit photoelectric switch S1 is gated or luggage room light control switch. A point is in its closed operating voltage is positive. If S...

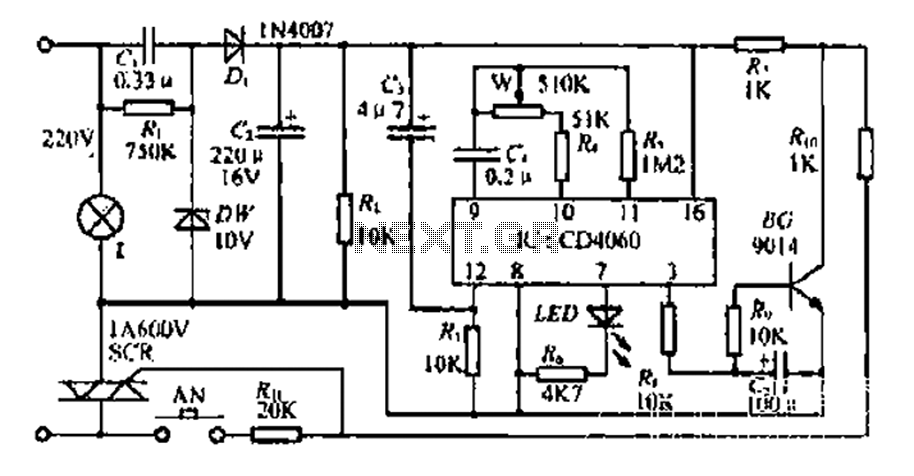

A bedside lamp delay circuit
1C is a CD4 cries O. A (16) feet for the Vcc terminal. (8) feet for the ground. (12) feet for the reset terminal. (7) feet for Qt end, (3) f...

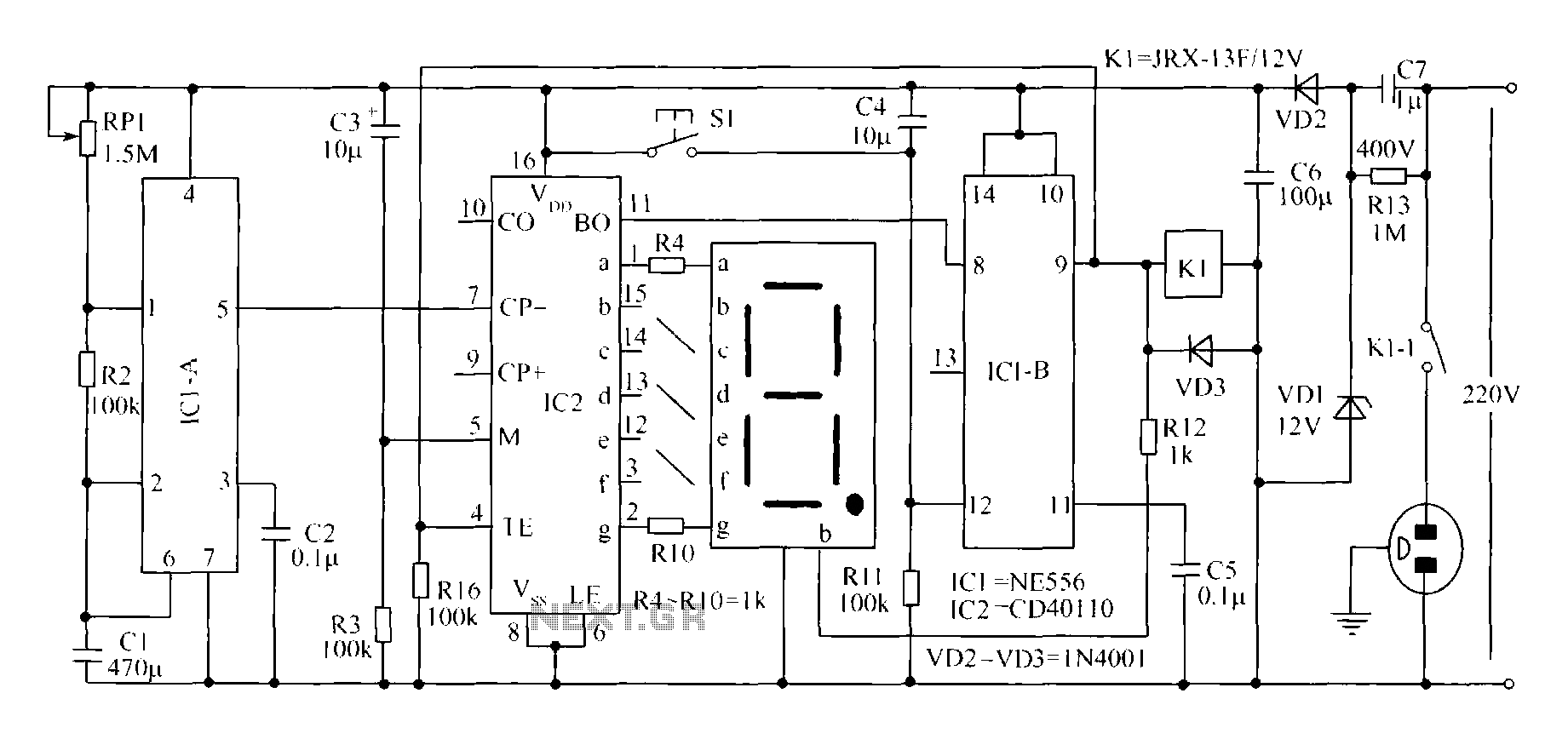

Novel circuit diagram of the timer switch
Novel timing switch circuit in addition to a general timing circuit "Variable Timing" adjustment function, also has a ...
Novel circuit diagram of the timer switch
Novel timing switch circuit in addition to a general timing circuit "Variable Timing" adjustment function, also has a ...

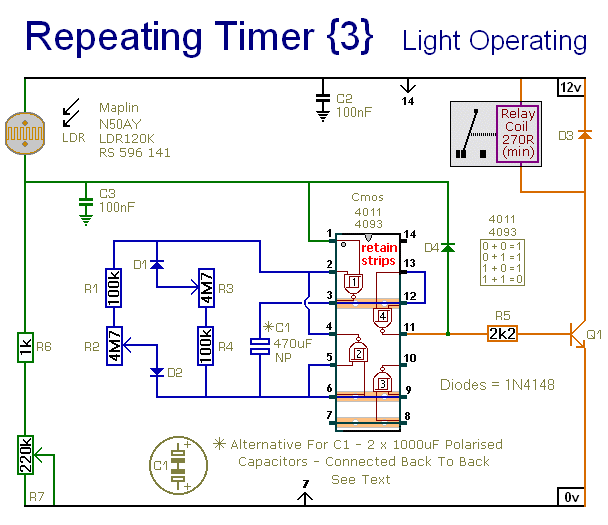

A Light Operated Repeating Timer Circuit
This circuit is very similar to Repeating Timer No. 2. However - the addition of the light dependent resistor means that the operation of th...

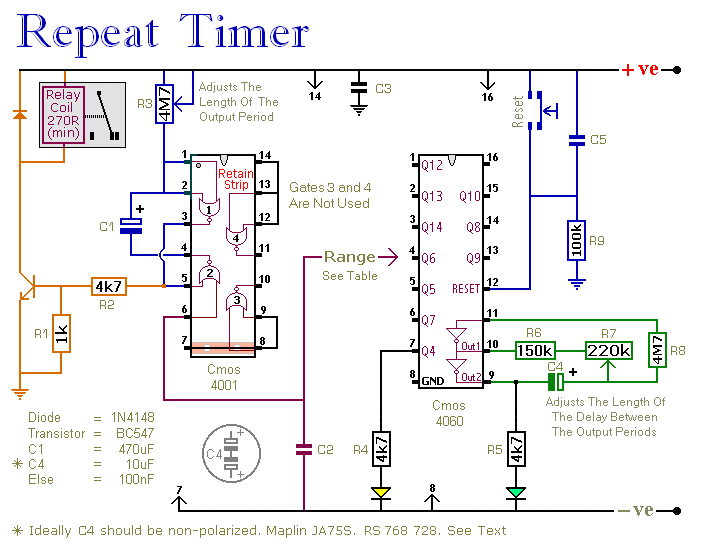

A Timer That Re-Triggers At Regular Intervals
This circuit has an adjustable output timer that will re-trigger at regular intervals. The output period can be anything from a fraction of ...
Two Simple 24-Hour Timer Circuit Schematics
These two circuits are multi-range timers offering periods of up to 24 hours and beyond. They can be used as repeating timers - or as single...

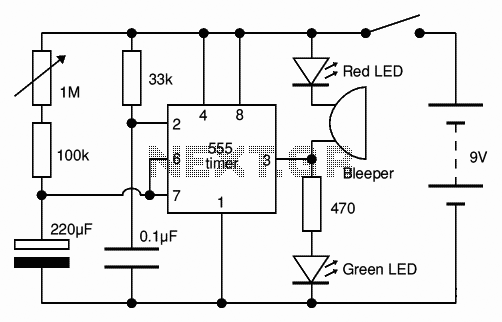

Adjustable Timer circuit 1-10 minute
The Adjustable Timer circuit starts timing when switched on. The green LED lights to show that timing is in progress. When the time period i...
APPLIANCE TIMER
Controls intervals up to 1 h in 1-s increments as programmed by thumb wheel switches S1 and S2. Circuit is basically two-stage programmed co...

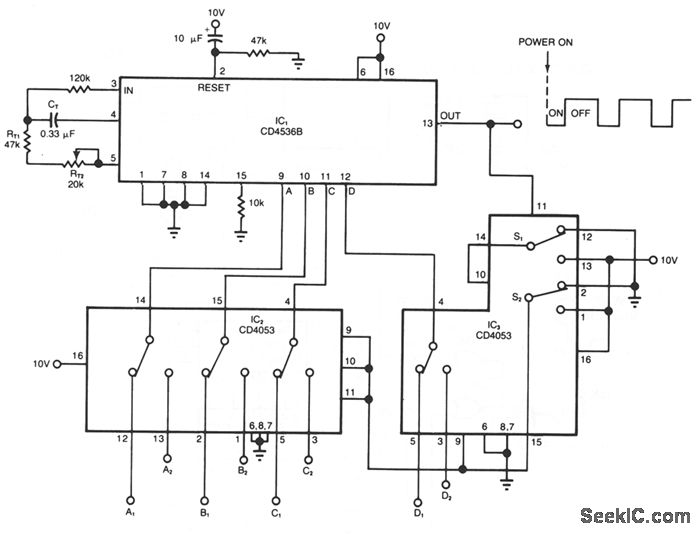

SEQUENTIAL TIMER
The timer circuit shown gives independent control of the output`s on and off intervals, which can range from 0. 055 seconds to 30 minutes, r...

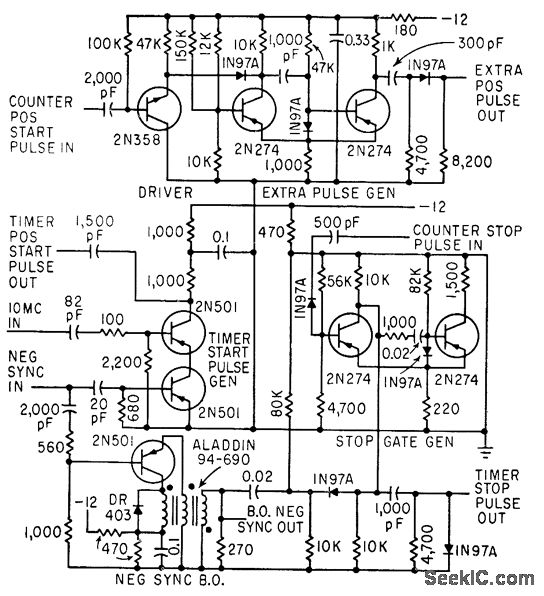

SING AROUND COUNTER CONTROL
Timer start-pulse generator is fast series-transistor coincidence circuit. Slop-gate generator is one-shot mvbr that prevents 1N97A diode fr...
R/C Timer-Switch for Radio Control Applications
The project started with a request from a fellow member of the Long Eaton Club, Tony Bowler. He was interested in converting one of the `Gol...
R/C Timer-Switch for Radio Control Applications
The project started with a request from a fellow member of the Long Eaton Club, Tony Bowler. He was interested in converting one of the `Gol...

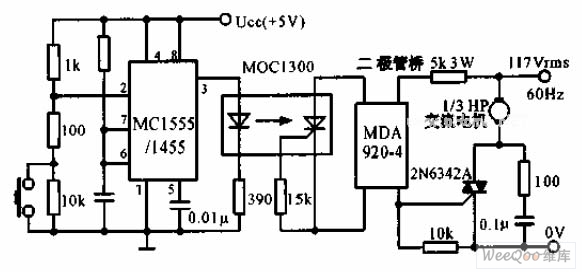

The switch shut off time delay circuit diagram
The switch shut off time delay circuit is shown as below. The switch shut off time delay circuit is composed of the timer, optocouplers, bri...
The switch shut off time delay circuit diagram
The switch shut off time delay circuit is shown as below. The switch shut off time delay circuit is composed of the timer, optocouplers, bri...

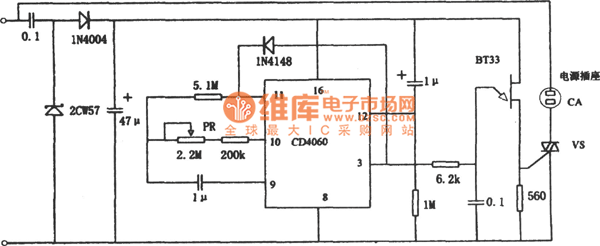

Preset Outage Timer of Electric Cooker Remote_Control
As shown in the figure is a preset outage timer of electric cooker circuit. Time of the timing circuit ranges from 1 hour to 12 hours, which...
Preset Outage Timer of Electric Cooker Remote_Control
As shown in the figure is a preset outage timer of electric cooker circuit. Time of the timing circuit ranges from 1 hour to 12 hours, which...

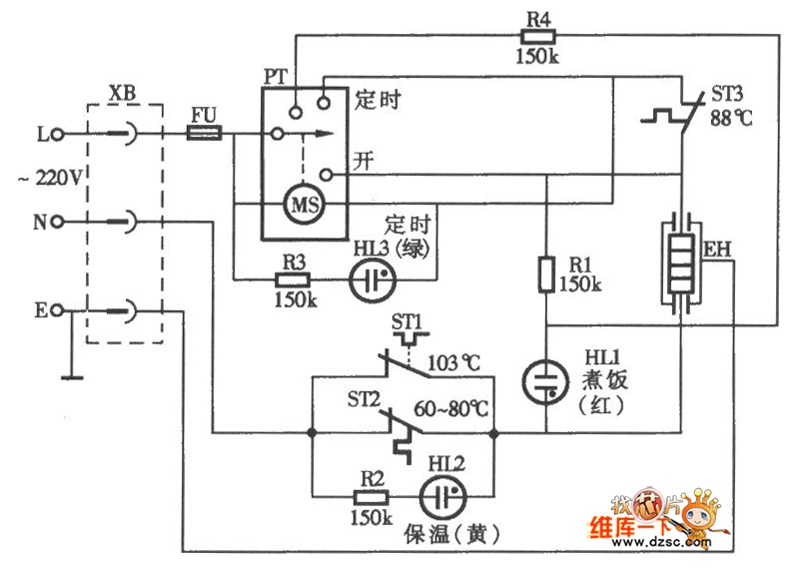

Timer automatic electric rice cooker circuit diagram
...
Timer automatic electric rice cooker circuit diagram
...
Cumulative timer circuit diagram
The cumulative timer circuit consists of resistor R1 and spreadsheet internal crystal oscillator BC, and it is shown as the chart. R1 and R2...
Cumulative timer circuit diagram
The cumulative timer circuit consists of resistor R1 and spreadsheet internal crystal oscillator BC, and it is shown as the chart. R1 and R2...

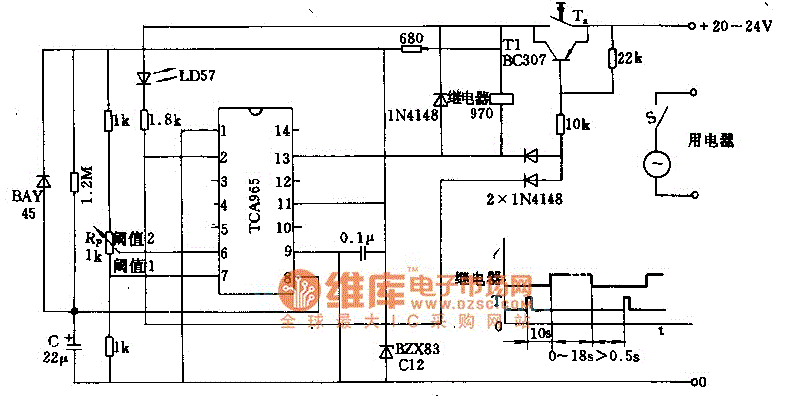

Timer circuit with 106 fixed preset time
The foot 13 between valve value 1 and valve value 2 will suck the transistor base current. If relay releases, after recovery time 0.5s, to p...
Timer circuit with 106 fixed preset time
The foot 13 between valve value 1 and valve value 2 will suck the transistor base current. If relay releases, after recovery time 0.5s, to p...

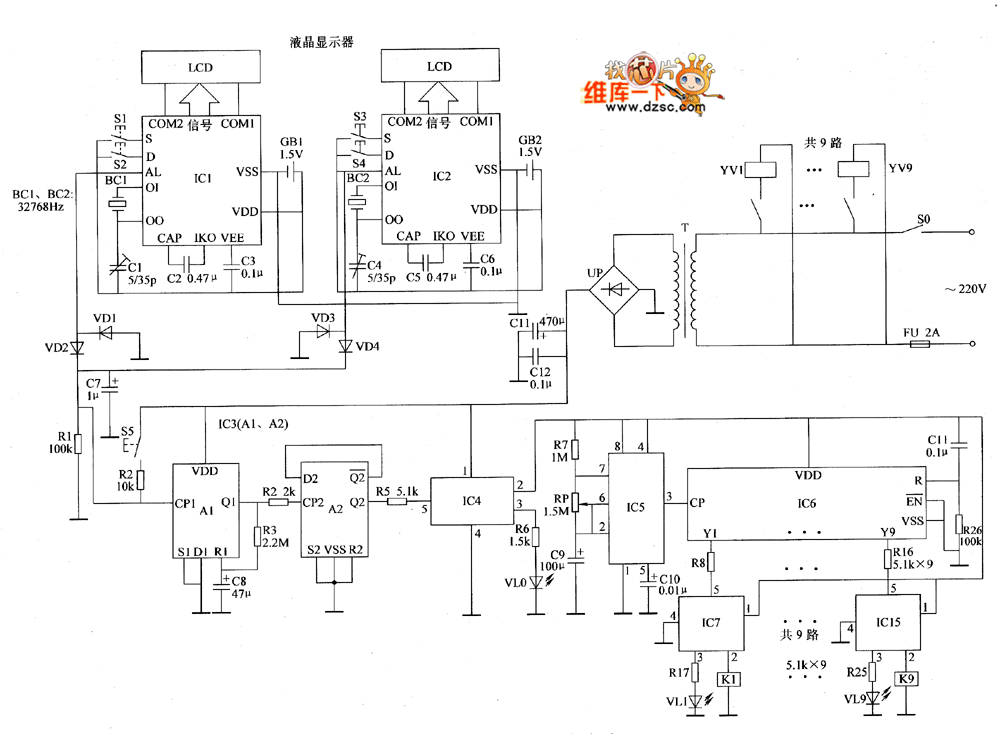

Automatic sprinkler controller circuit diagram 1
The automatic sprinkler controller circuit is composed of the clock timing controller, monostable flip-flop, bistable flip flop, electronic ...
Automatic sprinkler controller circuit diagram 1
The automatic sprinkler controller circuit is composed of the clock timing controller, monostable flip-flop, bistable flip flop, electronic ...
Timed Beeper
...
Bedside Lamp Timer
...
timer circuit
...
Timer circuit
The schematic diagram is quite straight forward. SW1 is a pushbutton used for starting the timer. The oputputs are set logic level 0 when th...

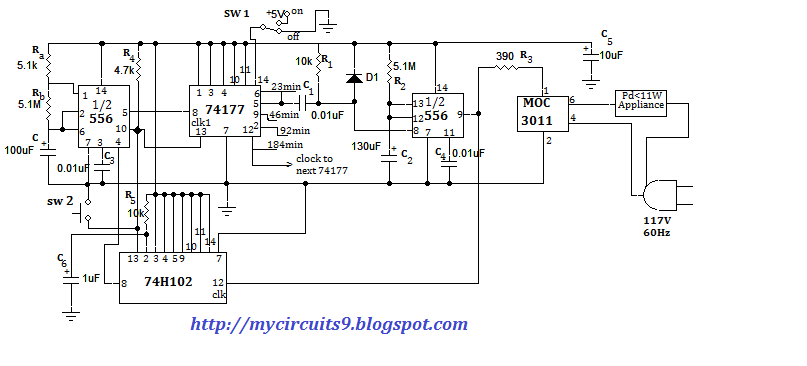

APPLIANCE CONTROL USING TIMER - PROJECT
I am going to present you fabulous Electronic project, DEVICE CONTROL USING TIMER. By using this circuit you can turn ON an appliance at a d...
Timer Circuit
I don`t the right place to post this but I`ll try my luck here: I`m looking to build a timer for a pump. I want the pump to run for 5 minute...
timer light switch
...

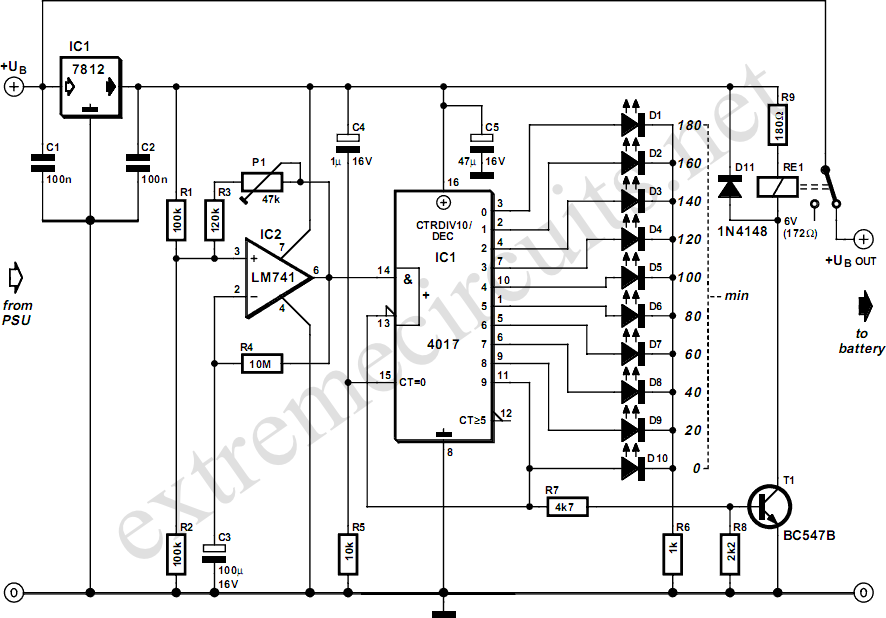

Three Hour Timer
Manufacturers of cordless drills generally recommend a battery charging time of three hours. Once the charging time is up the battery must b...
Pills Reminder
A Pills Reminder is a device that operates a flashing LED (and/or a beeper) at a fixed hour interval. A choice of time-intervals as wide as ...
Car Headlights Timer Circuit Schematic
This device is a simple timer, allowing to keep on the headlights of your vehicle for about 1min. and 30sec. , e. g. when accessing some dar...

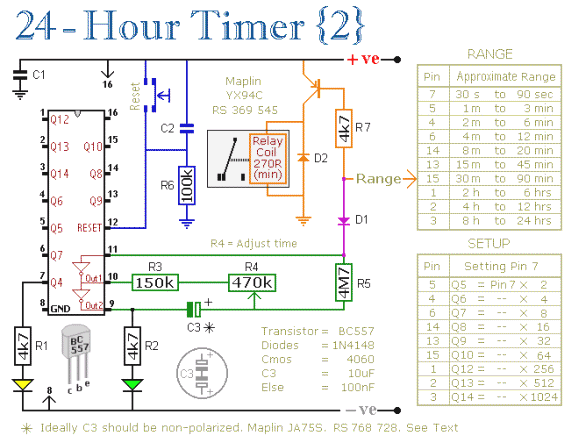

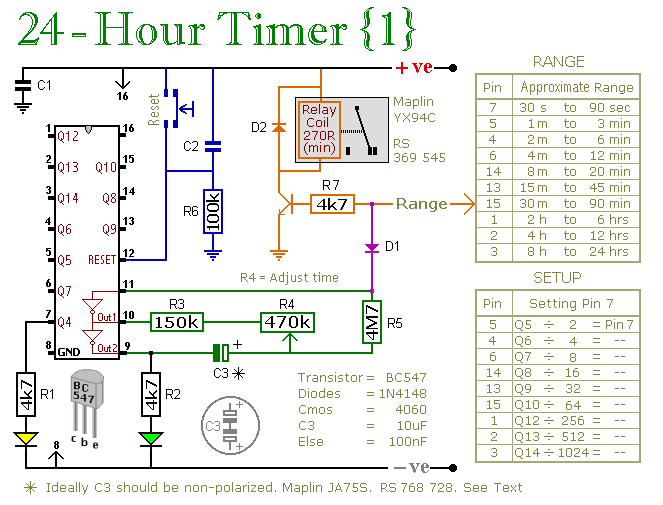

24 Hour Timer
These two circuits are multi-range timers offering periods of up to 24 hours and beyond. Both are essentially the same. The main difference ...
24 Hour Timer Timing
...
Counters and Timer Circuits
AN79 Linear Technology AN79 modifies methods presented in AN74, permitting verification of 30 nanosecond amplifier settling times to 0. 1% r...
Long Delay Timer Circuit
This timer was designed mainly to switch off a portable radio after some time: in this way, one can fall asleep on the sand or on a hammock,...
A Very Useful Timed Beeper Circuit
This circuit is intended for alerting purposes after a certain time is elapsed. It is suitable for table games requiring a fixed time to ans...
A Tan Timer Circuit
This timer was designed for people wanting to get tanned but at the same time wishing to avoid an excessive exposure to sunlight. A Rotary S...
A Bedside Lamp Timer Circuit
The purpose of this circuit is to power a lamp or other appliance for a given time (30 minutes in this case), and then to turn it off. It is...
Timer with buzzer and optocoupler circuit
A small circuit that can find a lot applications of measurement time. She has the possibility us inform with sound signal from the BZ1. At t...
Repeating Interval Timer circuit
This circuit has an adjustable output timer that will re-trigger at regular intervals. The output period can be anything from a fraction of ...
Photo Timer Circuit
Time is set by potentiometer R2 which provides a range or 1 sec. To 100 seconds with timing capacitor C1 of 100uF. The output at pin 3 is no...

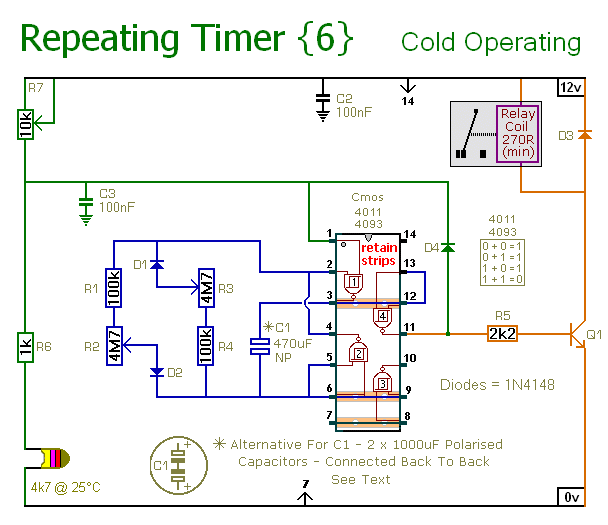

Repeating Timer 6
This circuit is the opposite of Repeating Timer No.5. It will only begin to operate if the temperature falls below the preset level. Again -...
