A six thyristor AC switch circuits
Figure 16-48 (a) for the introduction of six thyristor three-phase AC switching circuit; Figure 16-48 (b) as adopted by three triac circuits...
Variable resistive phase-shift trigger circuit ab
Figure 16-3 (a) one-way thyristor; Fig. 16-3 (c) for the triac. Circuit characteristics: O simple phase shift range 90. [Figure 16-3 (a)], p...
Three thyristor switch voice lighting circuits
Features voice switches with Figure 2109. From single-junction transistor VT2 and RC components delay the circuit. Adjustment potentiometer ...
FKL-32 Operating System Circuit
FKL-32 type automatic thyristor excitation device suitable for terminal voltage of 400V, capacity sookW and below synchronous generator used...
Dual timing circuit thyristor control table
Electronic Table (1) Introduction This schematic circuit having two alarm output by the timer by thyristor controlled. Can any on/off, and s...
A variable speed fan motor thyristor circuit
Electrical flow through the saddle j pounds. TV added in a controlled manner Qian Mountain amphipod species lI- ii ~ mi pulsating chord elec...
One of a thyristor AC switch circuit
Do not trigger circuit thyristor AC switch circuit, due to its simple, economical, non-contact, so widely used. Circuit shown in Figure 16-4...
Bidirectional thyristor AC contactor interface circuit
Device for intermediate relay. As shown in Figure is the use of Triac AC contactor interface circuitry. Which is using MOC3041 Triac output ...
Unidirectional thyristor dimmer lights triggered ordinary transistor circuit
Crystal is a one-way ordinary transistor triggered threatened tube dimmer light circuit, VT2, V hired composition complementary amplifier to...
KL-25 type automatic thyristor excitation device circuit
Circuit shown in Figure 7-32. The excitation device is suitable for terminal voltage of 400V, a capacity of less than 75kW synchronous gene...
Thyristor controlled motor reversing circuit a timer
Circuit shown in Figure 3-69. It applies to require frequent timing control motor reversing operation of the occasion. Drawing, thyristor V...
Thyristor AC torque motor speed control circuit 2
Circuit shown in Figure 3-181. Main circuit consists of three thyristor Vi-V3 components. Trigger circuit single-junction transistor relaxa...
Dynamic braking circuit control thyristor
Circuit shown in Figure 3-148. The circuit eliminates the need for step-down transformer, using thyristor for brake control, for small capa...
Three single-phase motor stepless thyristor circuits
Circuit shown in Figure 3-12. It has a variable speed and timing control functions. When the switch S placed in the 1 position, press the b...
Single-phase motor stepless thyristor circuit 2
Circuit shown in Figure 3-11. It uses a one-way thyristor control. Adjustment potentiometer RP, continuously changing the motor speed. ...
Level one thyristor-controlled circuit sink type b
Circuit shown in Figure 11-14. It uses a one-way thyristor, is poured into the liquid level automatic control circuits. Electrodes for dete...
Thyristor - slip motor regulator circuit
Circuit is shown in Fig. 16-95 - 16-97. The electrode automatic adjuster has better performance. Such as the use of the accuracy high, good...
Lamp automatic exchange regulator circuit schematic
Circuit in order to stabilize the lamp brightness L, using thyristor AC automatic voltage regulator circuit. For this reason access thyrist...
Six thyristor overcurrent protection circuits
Capacitor C3 according to cut off the power (ie, VT cutoff) of the delay time to choose. Figure, SB is the reset button after the failure t...
Phase protective circuit of harmonic currents 2 b
Both circuits are used to control the thyristor contactor KM action to overcome the break phase protection relay prone to malfunction or re...
Mains undervoltage overvoltage protection circuit of five
Bidirectional thyristor control. Adjust potentiometer RPi and RPz, you can change the lower and upper limit values. LEDs VLi and VL2 are le...
Thyristor-controlled three-level withdrawable circuits
Bidirectional thyristor control, control the very trigger voltage output from the step-down transformer T 12V (when the water is turned on ...
Third harmonic excitation device automatic circuit a thyristor
Attached to a separate harmonic generator stator windings, leads to the third harmonic voltage thyristor rectifier supply made after the mo...

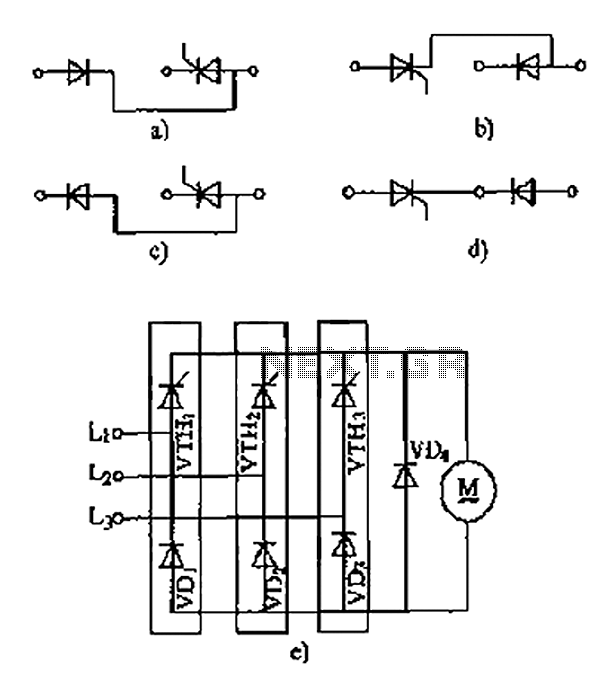

Thyristor - linking arm rectifier module three-phase half-controlled bridge rectifier circuit
As shown thyristors - linking arm rectifier module three-phase half-controlled bridge rectifier circuit. Thyristor - rectifier module linki...
Thyristor AC automatic voltage regulator circuit diagram
As shown in the circuit in order to stabilize the lamp brightness L, using thyristor AC automatic voltage regulator circuit. Access to this...
As one of the thyristor type delay circuit
As one of the thyristor type delay circuit The so-called cut-off delay, that is, after a period of delay after the closure of the thyristor....
Dual flashing string circuit 2
As is the use of thyristor controlled unidirectional flashing lights string controller, diodes VTI, VT2 connected to a multi-I are from Che ...
Bidirectional thyristor delay lamp circuit 2
Another method uses Zhu gall thyristor delay lamp circuit. Usually, 220V AC via vr), vs, (,, c: isoelectric consisting of step-down voltage ...
Car maintenance thyristor voltage regulator
An automobile permanent magnet alternator failure, the phenomenon of cars at night driving, headlights suddenly increase in brightness, then...
KTM03 type used to control the two anti-parallel thyristor circuit
Adjustment potentiometer RP, can change the thyristor Vl, vz conduction angle, thereby changing the applied voltage across the load Rfz size...
Small thyristor charging circuitry of the three
Adjustment potentiometer RP, can change the size of the DC output voltage. ...
Thyristor overcurrent protection circuit 2
Adjusting Ro or RP, you can change over the current setpoint. Circuit shown in Figure 14-98. Overcurrent, V conduction thyristor, transistor...
Four lighting sound and light control switch circuits
A resistor R8, capacitors Cd and thyristor V AC switch delay composition. Lamp lighting delay time is determined by Rs, C4. Press the compon...
Press light switch double circuit 9
A circuit configuration is relatively new strong key touch-state switch. Normally, product thyristor VT1, VT2 are in the off-state I-what li...
500A-6V single-phase power supply circuit Thyristor electroplating
500A-6V single-phase power supply circuit Thyristor electroplating It can output DC 500A, 6V (continuously adjustable), for plating processi...
One variable speed single-phase motor circuit thyristor
3P10 circuit shown in FIG. It uses a bidirectional thyristor control. Adjustment potentiometer RPi, can change the minimum motor speed f adj...
One variable speed single-phase motor circuit thyristor
3P10 circuit shown in FIG. It uses a bidirectional thyristor control. Adjustment potentiometer RPi, can change the minimum motor speed f adj...
Thyristor controlled forward start circuit
331 circuit shown in FIG. It uses two-way thyristor controlled motor start and stop. It has no contact, no noise sound, no spark, etc., suit...
Thyristor controlled forward start circuit
331 circuit shown in FIG. It uses two-way thyristor controlled motor start and stop. It has no contact, no noise sound, no spark, etc., suit...
25kHz using thyristor inverter welding machine circuit
25kHz using thyristor inverter welding machine circuit Using high frequency 25kHz, thyristor inverter arc welding machine, which can be smal...
25kHz using thyristor inverter welding machine circuit
25kHz using thyristor inverter welding machine circuit Using high frequency 25kHz, thyristor inverter arc welding machine, which can be smal...
SH-803R produced by high-power holiday lights
22, Ov AC by thyristor VSl ~ VS4 H1-H4 electricity for lights, on the other hand it down through the transformer T, VDI ~ VD4 rectifier, VD5...
SH-803R produced by high-power holiday lights
22, Ov AC by thyristor VSl ~ VS4 H1-H4 electricity for lights, on the other hand it down through the transformer T, VDI ~ VD4 rectifier, VD5...
1500A-7V-phase thyristor power regulator circuit a plating
1500A-7V-phase thyristor power regulator circuit a plating It consists of the main circuit, control circuit and the protection circuit has t...
1200 to 6000A-10V three-phase thyristor power regulator circuit plating
1200 to 6000A-10V three-phase thyristor power regulator circuit plating It consists of a main circuit, trigger circuit, synchronous power, v...
300A-18V three-phase thyristor power regulator circuit for electrolysis
300A-18V three-phase thyristor power regulator circuit electrolysis It can output DC 3000A, 18V (adjustable), power supply solution processi...
Thyristor cascade speed control circuit
Circuit shown in Figure 3-170. Wound rotor induction electric motive at different speeds induced in the rotor voltage (turn difference frequ...
Thyristor drive circuit
The circuit mainly by new pyroelectric infrared sensor device TDH98072 special composition. The device is assembled with a control circuit h...
Resistive-Capacitive sinusoidal synchronous reset control transistor trigger circuit
The circuit is suitable for inductive loads in general thyristor power unit (three-phase step-down DC motor speed and other exceptions), the...
KTM03 type for single-phase half-controlled rectifier circuit
Adjustment potentiometer RPi, can change the thyristor VI, V2 conduction angle, that is changing the DC motor M speed. Speed feedback circui...
