Three temperature switch circuits
Electronic temperature control circuit on an imported car air conditioners. Operational amplifier Ai, A2 using LM393. Adjustment potentiomet...
Household appliances electric water heater temperature regulating circuit circuit
Electric water heater temperature control circuit, with water level indication, temperature and anti-dry, leakage power automatic protection...
Comb electric circuit
Comb electric circuit shown in Figure 1-3. It has two temperature options, switch S into L or H profile file, you can get different tempera...
Boiler control circuit
Boiler control circuit for controlling the temperature of water in the hot water heating system, often used comparator s comparison functio...
Automatic temperature control circuit
Automatic temperature control circuit shown in Figure 1-7, for climate control thermostat. (1) control purposes and methods of control obje...

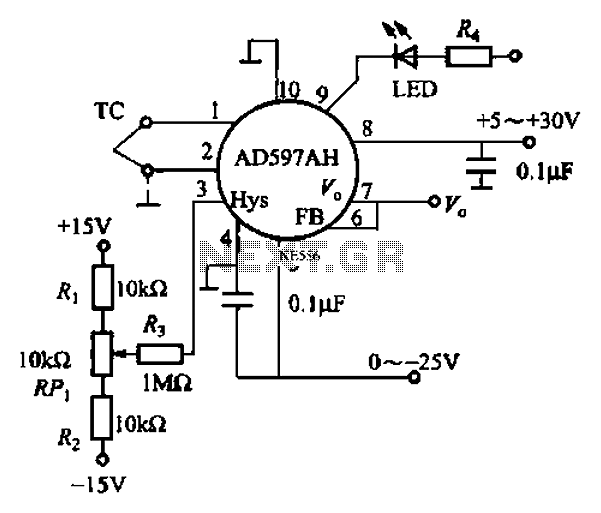

AD594 to 597 basic application circuit b
Automatic electric furnace temperature controller shown. The closed circuit is formed from a temperature detection output control loop; the...
Electric Oven automatic temperature controller
Automatic electric furnace temperature controller shown in FIG. 1-25. The closed circuit is formed from a temperature detection output cont...
Temperature controller circuit
Automatic Humidifier can be used to control humidity control family, it can also be used hatchery poultry farms or juvenile poultry house c...
TWH9205 by the integrated circuit consisting of a temperature control circuit automatically
As water heaters, microwave ovens and other heating equipment temperature control circuit; Figure 16- 53 (b) as air conditioners, refrigera...
Household savings vegetable compartment temperature stabilizer circuit
Circuit works: The temperature stabilizer from the main oscillator DD1.1, C1, R1, R2 and VD1, monostable multivibrator R3, VD2, VT1, C2, R4,...
Host computer automatic temperature control circuit
Computer when you run large-scale software or games machine in the heat will increase the temperature inside the machine so that, especially...
Eggs hatching incubator circuit diagram 4
The eggs hatch incubator circuit is composed of the power supply circuit, constant temperature control circuit and sound and light alarm cir...
Eggs hatching incubator circuit diagram 4
The eggs hatch incubator circuit is composed of the power supply circuit, constant temperature control circuit and sound and light alarm cir...
automatic temperature controlled fan
...
smart heater controller
...
Temperature-Controlled Soldering Iron
One reason why commercial soldering stations are expensive is that, in general, they require the use of soldering irons with inbuilt tempera...
Fuzzy Urn
Accurate control of water temperature, this got me thinking and I figured it was a good opportunity to have a play. To control the temperatu...
On-Off Temperature Control circuit
This circuit controls a load (in this case a dc brushless fan) based on a temperature compared with a setpoint. THe transduced is a diode in...
Auto Heat Limiter for Soldering Iron
...
On-Off Temperature Control
This circuit controls a load (in this case a dc brushless fan) based on a temperature compared with a setpoint. THe transduced is a diode in...
Greenhouse Heater Temperature Control Project
This is simply (4) 1N4148 diodes connected in series with a thermal anticipation resistor (R1) heat shrunk together at the end of a (3) wire...
Temperature Controlled Kitchen Exhaust Fan
Exhaust fan is an important component in kitchens. Here is a simple circuit to control kitchen fans by monitoring the ambient temperature. I...
Temperature-Controlled Soldering Iron
One reason why commercial soldering stations are expensive is that, in general, they require the use of soldering irons with inbuilt tempera...
Temperature controlled fan regulator
This fan regulator circuit will automatically control the speed of your fan according to the temperature. Two thermistors (R1 and R2) are us...
Temperature Controller For PC PCB
Our computer may often heated up due to long use or the hot climate, temperature controllers are necessary. You need to do a temperature mea...
temp control fan hardware
Make this temperature controlled fan and since i am using 15V AC power supply instead of 230V AC. what i want to know is if i would have to ...
pc based temperature control
...
The method of temperature controlling system of producing one-chip computer calorstat is analyzed
The cardinal principle originally designed is, the temperature value that the one-chip computer gathers the temperature sensor real time and...
Constant Temperature Circuit
Constant Temperature Circuit. (C) G. Forrest Cook 1997 Introduction This circuit is a generic low power temperature controller that can be u...
12 Volt DC Fan Temperature Control
Here is a simple circuit based on two transistors that can be acclimated to ascendancy the acceleration of a 12 V DC fan depending on the te...
Temperature Controller for Crystal Oven
The temperature of a quartz crystal for oscillator should to be kept constant to operate at very stable frequency. This oven temperature con...
Temperature Control Circuit by Fan
The circuit is temperature control by fan, this circuit can control temperature and it also indicates the temperature. All the above functio...
Temperature ControlCircuit using Microcontroller and Heater Driver
The electrical circuit diagram of this temperature control circuit consists 3-pin analog temperature sensor (LM35DZ), a built-in A/D convert...
Temperature controlled fan using microcontroller
This project gives you a simple temperature controlled fan. If the difference between real temperature and the user temperature is high then...
Temperature Controller With Defrost Cycle
This temperature controller has a range of -50 to +150°C and permits defrosting. R7, VR3, and R8 ...
Temperature controller
Temperature control is achieved using the REF-02 +5 V Reference/Thermometer and a CMP-02 Precision Low Input Current Comparator. The CMP-02 ...
Heater temperature controller
The circuit can control up to 6 kW of heating, with moderate gain, using a 25-amp triac (SC260D). Feedback is provided by the negative tempe...
Temperature control
A couple of transistors and a thermistor in the charging network of the 555 type timer enable this device to sense temperature ^nd produce a...
Temperature-controlling circuit
The circuit switches the current to an electrical heater on and off to maintain the temperature of a room at 25 ±0.5°C. The temperatur...
Temperature Fan Controller
This circuit controls very accurately a fan of any size. Just adjust the associated resistors for a different type like the R6 resistor of 1...
Temperature Control switch
This circuit controls a load (in this case a dc brushless fan) based on a temperature compared with a setpoint. THe transduced is a diode in...
Temperature Controler switch
This circuit controls a load (in this case a dc brushless fan) based on a temperature compared with a setpoint. THe transduced is a diode in...
Temperature Controler switch
This circuit controls a load (in this case a dc brushless fan) based on a temperature compared with a setpoint. THe transduced is a diode in...
Temperature Controlled Relays 4001/4011
The first circuit energizes the relay when the temperature rises above the preset level. The second circuit energizes the relay when the tem...
Temperature Controlled Relays 4001/4011
The first circuit energizes the relay when the temperature rises above the preset level. The second circuit energizes the relay when the tem...
Temperature Controller
Wine doesn`t like subzero temperatures, and during wintertime, my "winecellar" got pretty cold. There was an electric heating element, but t...
Temperature Controller
Wine doesn`t like subzero temperatures, and during wintertime, my "winecellar" got pretty cold. There was an electric heating element, but t...
