Tachometer
Results tagged
#Tachometer
in Circuits

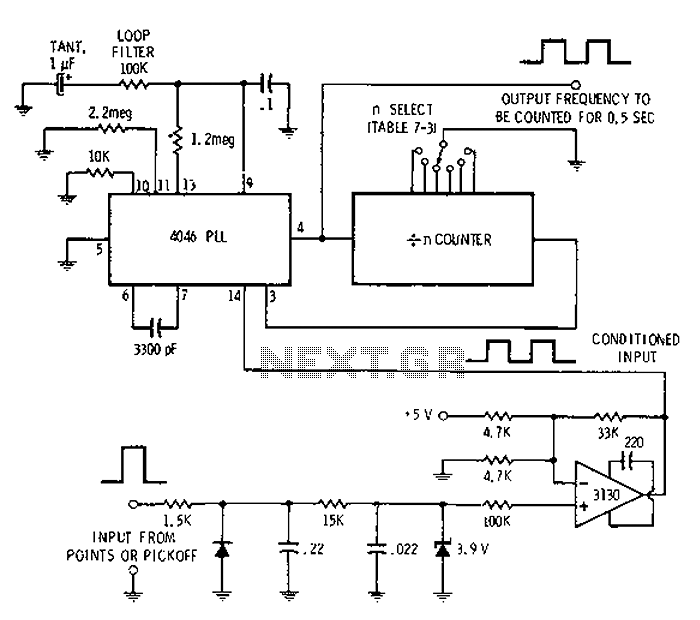

Digital tachometer schematic
Automotive engine pulse points or other sensors to be filtered in the transmission device 3130 CMOS op amp, the op amp is used as a compara...
Tachometer circuit diagram of a multiplier
After each zero electromagnetic pickup has a sine wave input, as shown in the National Semiconductor LM2907 circuit will produce an output p...
DIGITAL TACHOMETER COUNTER
This circuit produces a readout for the digital tachometer circuit.IC9 is a 3-digit LED display driver,counter,and latch?IC8 drives the comm...
DIGITAL TACHOMETER COUNTER
This circuit produces a readout for the digital tachometer circuit.IC9 is a 3-digit LED display driver,counter,and latch?IC8 drives the comm...
Build A Digital Tachometer/RPM Counter Circuit
The circuit for the Digital Tachometer/RPM Counter tutorial consists of only a few devices. Wire them up according to the following circuit ...
tachometer pulse divider
...
Smiths Tachometer
Calibrating the Smiths electronic tachometer some time ago when I realized that my tach was completely out of calibration. I used a techniqu...
Digital Bike Tachometer Circuit
This digital DIY tachometer for bikes uses two reed switches to get the speed information of the bicycle. The reed switches are installed ne...
Electronic Tachometer
Here is a simple Tachometer schematic. The basis of the frequency converter circuit-current, which converts the input signal into a proporti...
Digital Bike Tachometer
This digital DIY tachometer for bikes uses two reed switches to get the speed information of the bicycle. The reed switches are installed ne...
Tachometer circuit
Here is a simple circuit that can be used as a tachometer. The circuit is basically a frequency to current converter which converts the inco...
tachometer circuit diagram
It is mainly composed of permanent magnet with the disk, integrated Hall sensor, strobe gate, time base signal circuits, power counting and ...
tachometer c code
...
Contactless Tachometer
The techometer also called revolution counter is an instrument that measure the speed of a rotating machinery. Generally these measurements ...
rear wheel tachometer
One of the goals of Movable Party is to provide an interactive experience for audiences/participants. Since power will be generated from a h...
Tachometer Circuit Using LM2907 LM2917 Frequency to Voltage Converter
This is a design circuit for tachometer circuit based on the LM2907 IC can be used to provide zero crossing datum to a digital system. At ea...

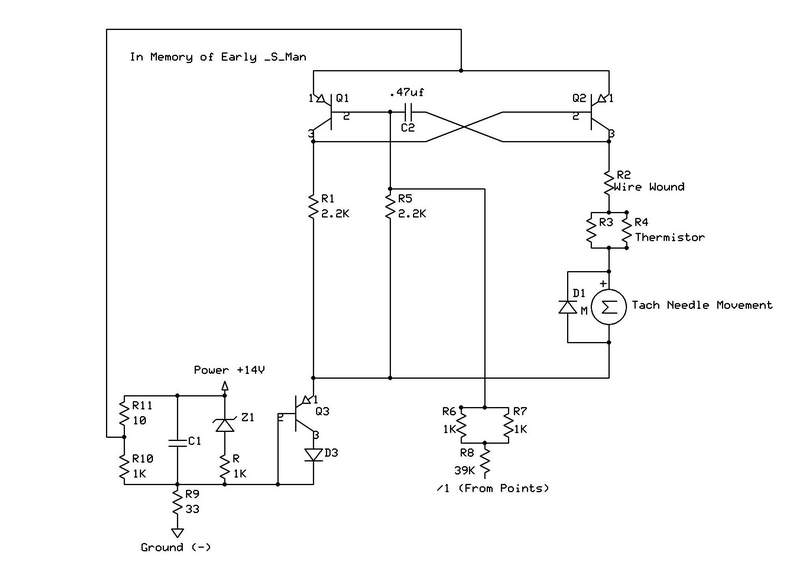

Early VDO Tachometer Guts
The "crossed-flags" topology of a monostable multivibrator. Also, this particular board happened to be a 912 tach, so R5, which determines t...
Digital Bike Tachometer Circuit Schematic Diagram
This digital DIY tachometer for bikes uses two reed switches to get the speed information of the bicycle. The reed switches are installed ne...
Electronic Tachometer
The basis of the electronic tachometer frequency converter circuit-current, which converts the input signal into a proportional current meas...
Low-frequency-tachometer
This tachometer lets you measure heartbeats, respiratory rates, and other low-frequency events that recur at intervals of 0.33 to 40.96 seco...
F/V Converter for Tachometer Bar Graph Display
We can construct a tachometer using the TC9400 in the F/V mode to convert the frequency information (RPM) into a linearly proportional volta...
Digital Tachometer Counter
This circuit produces a readout for the digital tachometer circuit. IC9 is a 3-digit LED display driver, counter...
Digital Tachometer Circuitry
This system can be used with 4-, 6-, or 8-cylinder automobiles. The timebase formed by IC5 is an oscillator th...
Tachometer
A standard shaft encoder"s A and B ports generate square waves with the same frequency as the shaft turns. The phase of A will lead or lag ...
Low-frequency-tachometer
This tachometer lets you measure heartbeats, respiratory rates, and other low-frequency events that recur at intervals of 0.33 to 40.96 sec...
Tachometer-and-direction-of-rotation-circuit
In machine and equipment design. some applications require measurement of both the shaft speed and the direction of rotation. Fig. 56-4 sho...
Digital-tach-dwell-meter
The heart of the circuit is ICZ, a 4046 micropower phase-locked loop (PLL). The incoming signals are fed to the PLL after being buffered by...
Tachometer
An electrical signal taken from the low tension side of the distributor is converted into a voltage proportional to engine rpm and this volt...
Gasoline engine tachometer
This tachometer can be set up for any number of cylinders by linking the appropriate timing resistor as illustrated. A 500 ohm trim resistor...
Tachometer feedback control
The system utilizes the H21A1 and a chopper disc to provide superior speed regulation when the dynamic characteristics of the motor system a...
Calibrated-tachometer
Here is a simple tachometer circuit for use with a hand-held DVM or portable chart recorder. A novel feature is that the source frequency p...
Car Analog tachometer circuit
This is a nice design for people who have no tachometer in the car or on the bike have. The circuit uses two ICs: an NE 555 and a CA 3140. T...
