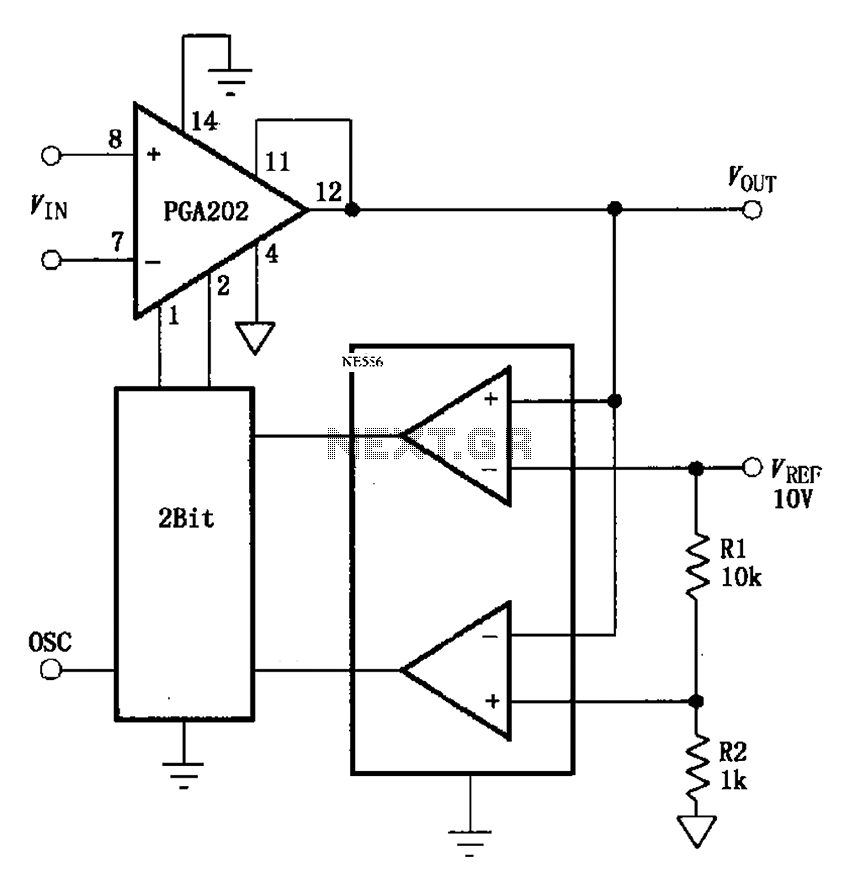

Automatic range switching circuit diagram PGA202
As shown in FIG grounds PGA202 and comparators, counters constitute automatic range switching circuit. The circuit at the output of the com...

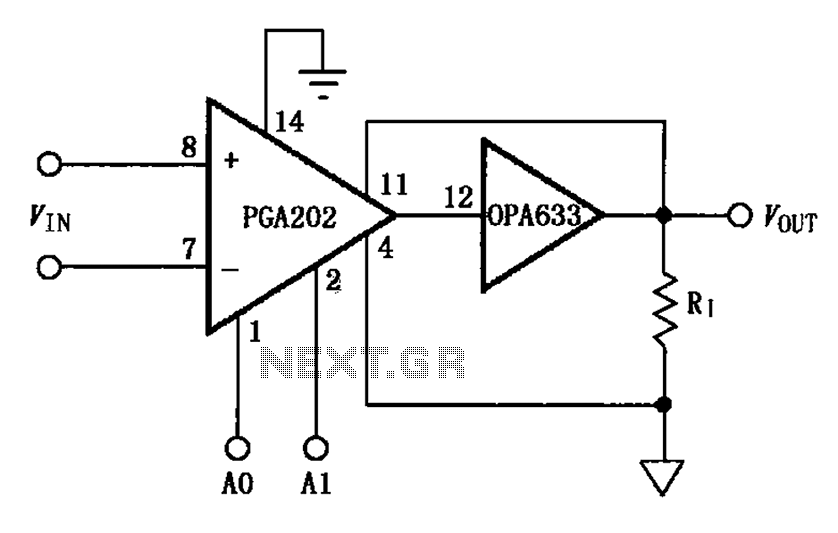

Output current boost circuit PGA202 OPA633
As shown in FIG grounds PGA202 OPA633 op amp output current boosting circuit configuration. This circuit PGA202 output of an operational am...

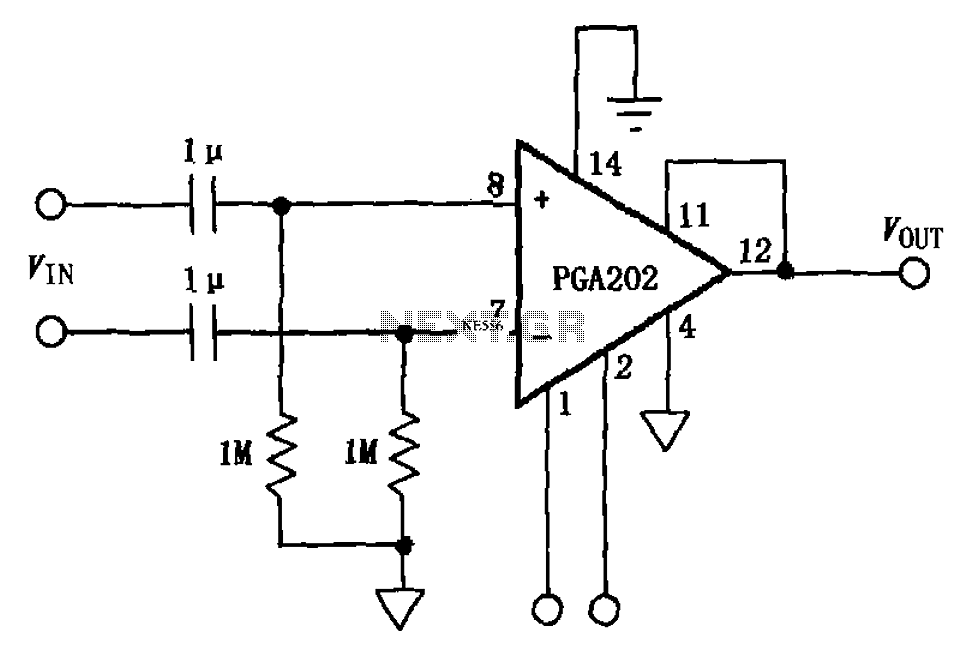

AC-coupled differential amplifier PGA202
As shown in FIG PGA202 constituted by AC-coupled differential amplifier. The circuit at the input PGA202 plus two 1 F capacitors and two 1M...

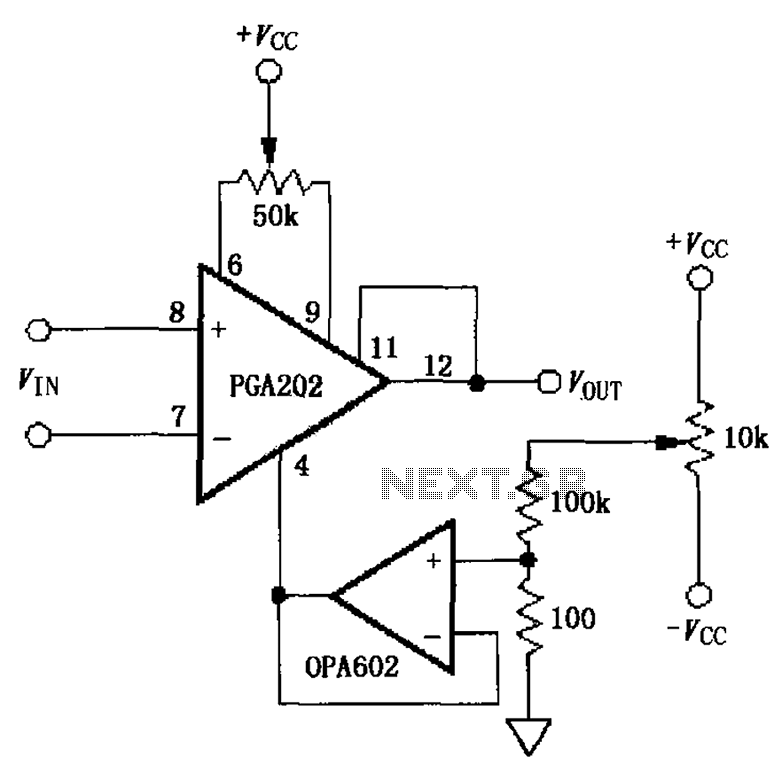

PGA202 offset voltage correction circuit
As shown for the PGA202 offset voltage correction circuit. PGA202 offset voltage correction circuits for input offset voltage and output of...
PGA202 / 203 digitally controlled programmable gain instrumentation amplifier circuit
PGA202 is a digitally controlled programmable gain G = 1,10,100,1000 monolithic ...
PGA202 / 203 digitally controlled programmable gain instrumentation amplifier circuit
PGA202 is a digitally controlled programmable gain G = 1,10,100,1000 monolithic ...
