The following diagram is the schematic diagram of Ni-CAD Battery Charger circuit which featured with current and voltage limiting to keep th...

The following diagram is the schematic diagram of 12V NiCAD battery charger with charging rate of 200mA/Hour. This NiCAD battery charger cir...

Four 4, 8 Volt 2000mA Nickel Cadmium batteries. Does anybody here know a safe way of initial charging those batteries from a lab power suppl...

This circuit charges two NiCad cells with a constant current and features dual charging rates, voltage cutoff and an audible alarm. The circ...

This circuit charges two NiCad cells with a constant current and features dual charging rates, voltage cutoff and an audible alarm. The circ...

Here is a deluxe version of the simple charge rate limiter, using the same idea but with the ability to charge two packs simultaneously from...

This circuit charges two NiCad cells with a constant current and features dual charging rates, voltage cutoff and an audible alarm. The circ...

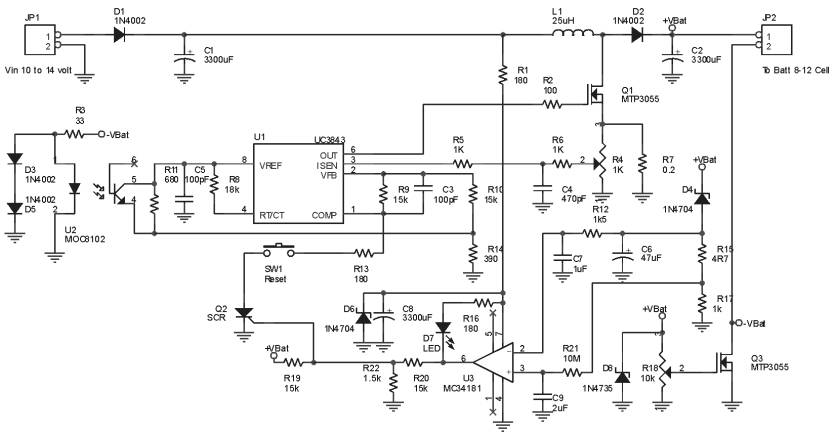

Ultra Fast Battery Chager for Nickel-Cadmium battery cells [NiCad] which will be discussed in this article is Fast NiCad Battery Charger, ca...

200mA per Hour 12V NiCAD Battery Charger circuit. This NiCAD battery charger circuit charges the battery at 75 mA until the battery is charg...

This NiCAD battery charger circuit charges the battery at 75 mA until the battery is charged, then it reduces the current to a trickle rate....

...

This Nicad battery tester discharges the test battery at a rate of 500 mA. When the endpoint of 1 V (determined by set...

NiCad batteries are excellent rechargeable power sources for portable equipment, but ~care must be taken to ensure that the batteries are n...

Because NiCad batteries maintain a constant output voltage, it is difficult to determine how much of the battery"s charge remains. The circu...

If a NiCad battery is discharged to a point at which the lowest capacity cell becomes fully discharged and reverses polarity, that cell will...

This circuit was designed to charge NiCad battery packs in the range of 4.8 to 15.6 V from a convenient remote power source, such as an aut...

This zapper clears internal short in nickel cadmium batteries by burning it away. CAUTION: The negative battery terminal is connected to one...

One way to charge Ni-Cad batteries rapidly without abuse is to measure cell temperature and taper the charge accordingly. The circuit uses a...

If you use different batteries with actual capacity, with different self-discharge rate of batteries from different manufacturers, you will ...

This simple charger uses a single transistor as a constant current source. The voltage across the pair of 1N4148 diodes biases the base of ...

This simple charger uses a single transistor as a constant current source. The voltage across the pair of 1N4148 diodes biases the base of ...
