L200 DC Motor Speed Control
This diagram tells us about how to use L200 device for the speed control of permanent magnet motors. By means of R1 and R2, we can obtain th...
L200 DC Motor Speed Control
This diagram tells us about how to use L200 device for the speed control of permanent magnet motors. By means of R1 and R2, we can obtain th...
Higher Input Or Output for L200 Voltage Regulator
This is higher input or output for L200 voltage regulator circuit. This circuit is designed to solve the problem that occurs when the input ...
Higher Input Or Output for L200 Voltage Regulator
This is higher input or output for L200 voltage regulator circuit. This circuit is designed to solve the problem that occurs when the input ...
Applications with Voltage Regulator L200 circuit
Here they exist two regulator circuits, that use the IC L200, as regulator of voltage and current, the company SGS-Thomson, which give these...
L200 Power Supply Regulator With sense Lines
L200 Power Supply Regulator There are applications in which it is important for the supply voltage to be largely independent of the level of...
L200 12V Constant Voltage Battery Charger Circuit
L200 12V Constant Voltage Battery Charger Circuit This battery charger is based on L200 regulator IC. L200 is a five pin adjustable voltage ...
L200 Regulator Power Supply
The following circuit shows about L200 Regulator Power Supply Circuit Diagram. Features: used in power supply with voltage and current .....
L200 Variable Voltage Regulator
The circuit diagram of the circuit variable regulator, which uses IC L200, as regulator of voltage and current, IC For this comes from the c...
Battery charger circuit using L200
A very simple battery charger circuit having reverse polarity indication is shown here. The circuit is based on IC L200. L200 is a five pin ...
Adjustable regulator using L200
Here is the circuit diagram of an adjustable voltage regulator using IC L200. L200 is a monolithic integrated adjustable voltage regulator I...

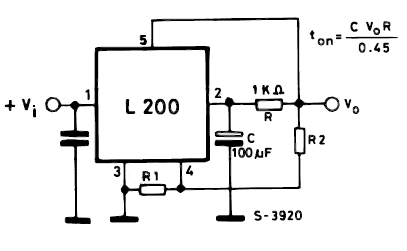

soft start mechanism for l200 voltage
...

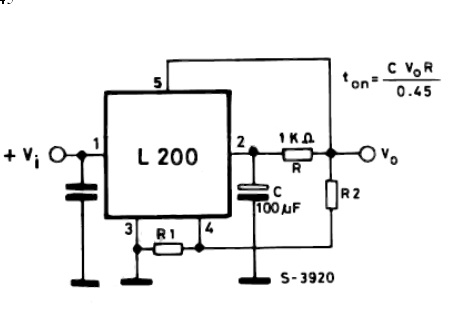

l200 voltage regulator soft start
...
The L200 Datasheet an IC for Voltage and Current Programmable Regulation
In the datasheet, you will see the L200 application circuits diagrams such as Programmable Voltage Regulator, High Current Voltage Regulator...
Battery charger circuit using L200
A very simple battery charger circuit having reverse polarity indication is shown here. The circuit is based on IC L200. L200 is a five pin ...
Regulator L200 schematics
Here they exist two regulator circuits, that use the IC L200, as regulator of voltage and current, the company SGS-Thomson, which give thes...
L200 Power Supply
The versatile 5 pin L200C regulator offers both voltage and current regulation in a single package. The IC also features thermal shutdown an...
L200 Power Supply
The versatile 5 pin L200C regulator offers both voltage and current regulation in a single package. The IC also features thermal shutdown an...
