ISO120 eight-channel isolated and PWS740 0 ~ 20mA current loop circuit diagram
Eight-channel isolated as shown in Fig constituted by ISO120 and PWS740 0 ~ 20mA current loop circuit. FIG drawn only one channel, circuit 0...
Basic circuit diagram connection ISO120 121 signals and power supply

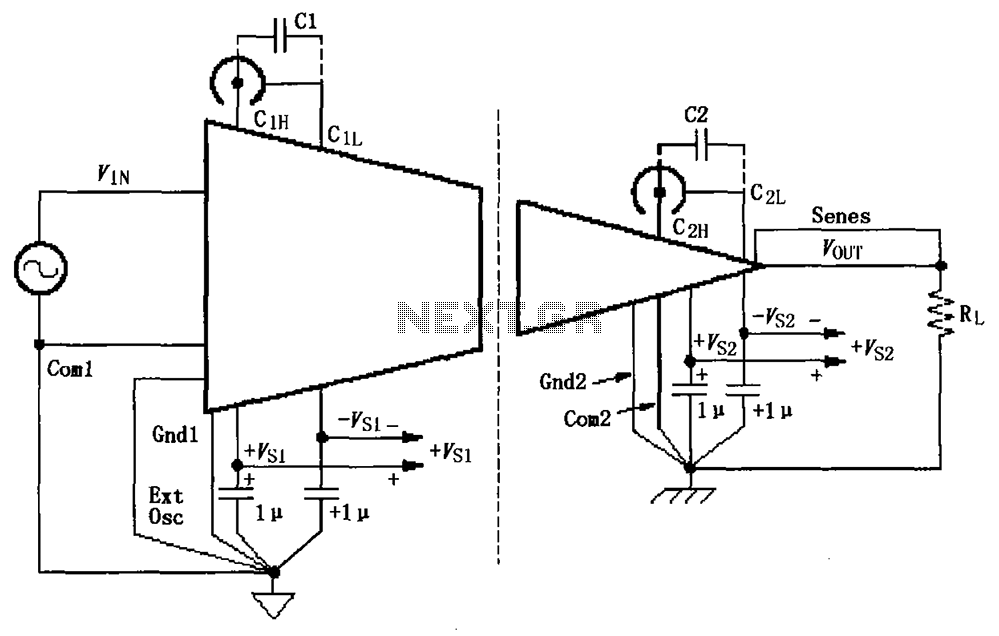

As shown for the basic connection circuit ISO120/121 signals and power supply. Each power supply terminal must have a 1 F tantalum capacito...
