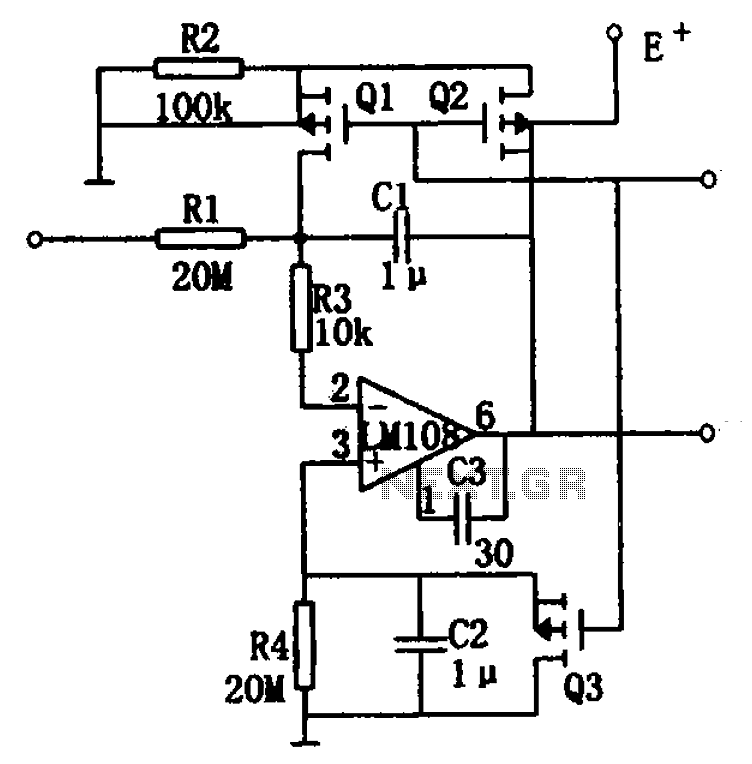

Low drift integrator
As shown in FIG integrator drift is very small, at a temperature of -55 C ~ + does not exceed 500 V/s within 125 C range. FIG basic integra...
Controllable integrator F007 schematic
As shown in FIG controllable integrating circuit. The circuit has reset to zero, and to keep different integration time constant controllab...
Low Cost integrator CC4069
As shown for the low-cost integration circuit. Integrator operational amplifiers are generally used, but with a CMOS inverter CC4069 also c...
High-speed integrator circuit (LM101A, LM108)
As shown for the high-speed integrating circuit. The integration time constant circuit RtCt have a greater range. If you do not consider int...
9400 Selling Leads 9400 Datasheet PDF
Absolute-value integrator circuit gives effect of generating negative frequencies when input signal is negative by making counter count up f...
Integrator-ramp-generator-with-initial-condition-reset
Channell is wired as a conventional integrator, and channel2 as a voltage follower. When channel2 is switched on, the output will follow VJ...
Resettable integrator
The low Rds and high peak current capability ofthe DG419 makes it ideal for discharging an·integrator capacitor. A high logic input puls...
