Results tagged #Humidity Sensor in Circuits
Fully automatic watering circuit for flower pots
Many times for various reasons we forget or can not water the plants that we have in our homes. And many humidity sensors units just notify ...
Low humidity is a circuit diagram of CGS-H ceramic humidity sensor configuration
CGS-H ceramic humidity sensor constructed low humidity detection circuit diagram . ...
Air humidity measuring circuit 2
Based integrated circuits and relays KA constitute humidity alarm value it uses pA741 circuit. MS01 using a wet-type humidity resistance el...
Automatic sprinkler control circuit

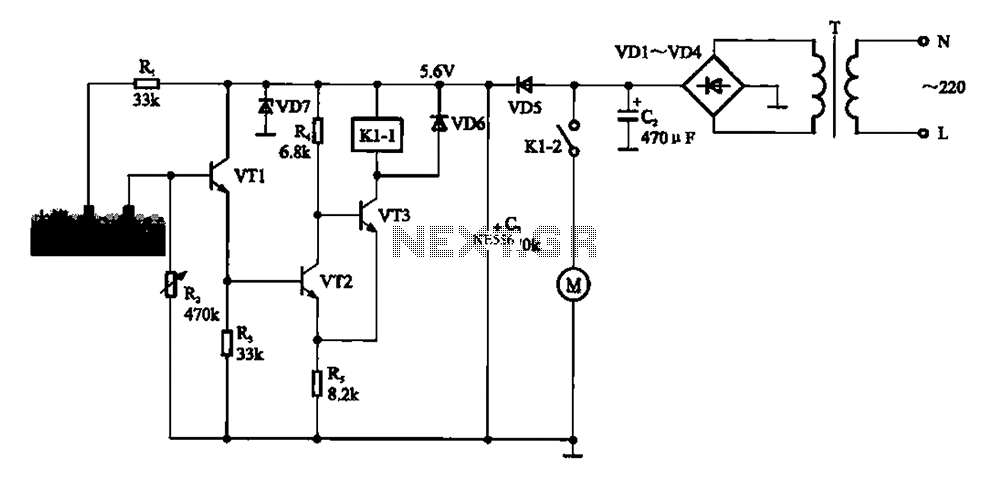

Automatic sprinkler control circuit It shows automatic sprinkler control circuit. The circuit mainly by the humidity sensor, a detection si...
Relative humidity digitizer circuit diagram
A sensor SEN1 output DC voltage varies linearly according to the relative humidity. This DC voltage is supplied through R1 and R2 to the A/D...
Voltage output humidity sensor meter circuit HM1500 / 1520 with microprocessor PIC16F874
Intelligent humidity meter circuit by the HM1500 / 1520 humidity sensor and MCU configuration shown in Fig. The meter + 5V power supply, wit...
Humidty Sensor To Data Aquisition System Interface
The circuit shown in the schematic features zero drift operational amplifiers (LTC1250 and LTC1050) and a precision instrumentation switched...
Humidity Control Switch Circuit
This humidity controlled switch circuit turns on and off an electrical load (for example a heater) depending on the moisture content of the ...
Automatic Air Humidifier
The humidifier circuit is based on a special humidity sensor Type NH-3 from Figaro. Depending on the sensor output, the circuit drives a ven...
interface humidity sensor
...
Simple Humidity Sensor
You can use a humidity sensor to give an alert of boat leakage, or when your books start being flooded by heavy rain attack on your broken r...
Humidity detector circuit
Humidity detector circuit electronic project using common electronic parts...
Low-cost-humidity-sensor
The sensor is an RC oscillator in which, a water-absorbent plastic film is the insulator in the capacitive element. The capacitance of the ...
humidity sensor circuit II
When the 14B-12B pair opens, 12B is connected to Al's summing point via 13B. The sensor now discharges into the summing point through the 1 ...
humidity sensor circuit
This circuit combines two LTC1043s with a based humidity transducer in a simple charge-pump based circuit. The sensor specified has a nomina...
Humidity Sensor with the H14DL
A humidity sensor with temperature compensation built-in. Never apply a DC voltage to the sensor, even measuring the sensor with an ohmmeter...
Plants Humidity Sensor
IC1D is a CMOS Schmitt trigger oscillator at about 2KHz. It starts and continues to oscillate with a supply down to 1.24V (the lowest output...
