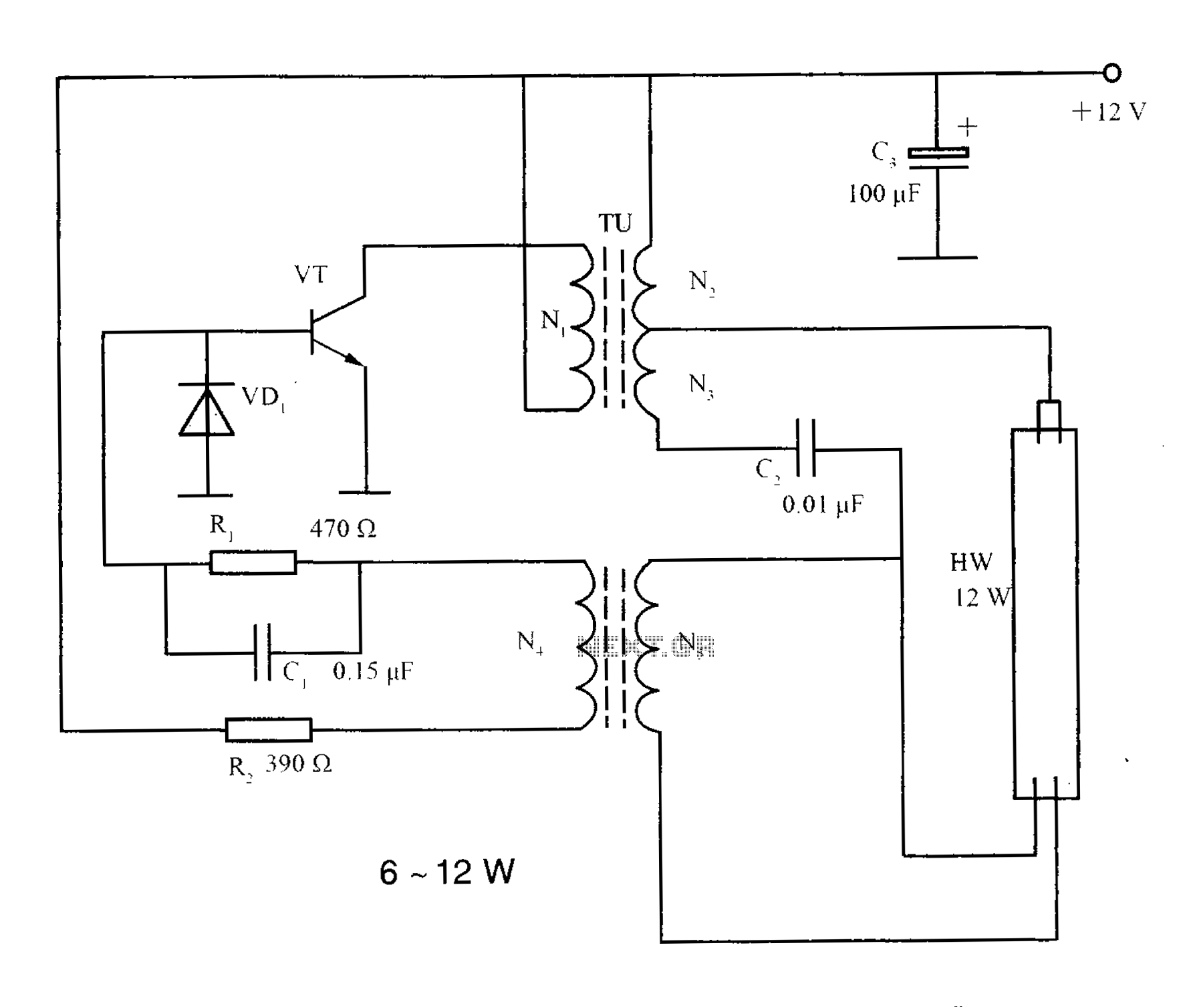

Lighting inverter circuit principle 6 ~ 12W fluorescent lamps
As shown for the lighting inverter circuit principle 6 ~ 12W fluorescent lamps. After mains buck, rectifier, filter charging the battery. W...
40W fluorescent lamp electronic ballast circuit
The figure shows that input from the varistor overvoltage protection role. VDi - VD4 rectifier, L1, C2, q filtering. R, c9 and VD6 compositi...
Fluorescent Lamp Driver Circuit and Project
Starting a fluorescent on an inverter The 12V drivers for fluorescent lamps are tricky, because of the compromise between a good operating e...
Fluorescent lamp electronic ballast circuit
One (1) Electronic Ballast circuit circuit shown in Figure 2-11. This circuit uses special fluorescent lamp starter thyristor SCR Y1112, ord...
DC fluorescent light circuit
For the use of direct current 6 ~ 8W fluorescent lamp ignition circuit ring. It is a common emitted by a pole blocking...
DC fluorescent light circuit
For the use of direct current 6 ~ 8W fluorescent lamp ignition circuit ring. It is a common emitted by a pole blocking...
8W Fluorescent Lamp Inverter based ZTX652
This circuit is basically a 8W inverter circuit. The circuit continues to be intended to drive an 8W fluorescent lamp from a 12V power sup...
Fluorescent starter
This circuit shows a solid-state fluorescent-lamp starter that uses a SIDAC. In this circuit, the ballast is identical to that used with a c...
20W Fluorescent Lamp Electronic BallastCircuit
...
20W Fluorescent Lamp Electronic BallastCircuit
...
Homemade 20W fluorescent lamp dimmer circuit diagram
Homemade 20W fluorescent lamp dimmer Using the method of connecting capacitor in series can easily control the brightness of fluorescent lam...
Homemade 20W fluorescent lamp dimmer circuit diagram
Homemade 20W fluorescent lamp dimmer Using the method of connecting capacitor in series can easily control the brightness of fluorescent lam...
General connection method of fluorescent lamp circuit diagram
General connection method of fluorescent lamp Fluorescent lamps used in homes and public places lighting and so on, with luminous efficiency...
General connection method of fluorescent lamp circuit diagram
General connection method of fluorescent lamp Fluorescent lamps used in homes and public places lighting and so on, with luminous efficiency...
Fluorescent lamp electronic ballast
The fluorescent lamp electronic ballast circuit is composed of the rectifier filter circuit, high-frequency oscillator circuit and output ci...
Fluorescent lamp electronic ballast
The fluorescent lamp electronic ballast circuit is composed of the rectifier filter circuit, high-frequency oscillator circuit and output ci...
IR2156 fluorescent lamp integrated circuit electron ballast
IR2156 can offer solution of high cost-effectiveness for fluorescent electron ballast. It can integrate lighting tube error protection and t...
IR2156 fluorescent lamp integrated circuit electron ballast
IR2156 can offer solution of high cost-effectiveness for fluorescent electron ballast. It can integrate lighting tube error protection and t...
Fluorescent lamp driver circuit composed of FET
Fluorescent tube is connected in the LC resonant circuit composed of L2 and C9. Bidirectional breakdown diode VD4 is starting circuit. When ...
Fluorescent lamp driver circuit composed of FET
Fluorescent tube is connected in the LC resonant circuit composed of L2 and C9. Bidirectional breakdown diode VD4 is starting circuit. When ...
12 Volt fluorescent lamp drivers
Whenever there is a need for battery-powered lighting, like for camping, solar powered cottages, cars, boats, planes, or emergency purposes,...
12V Flourescent Lamp Inverter
Fluorescent tubes use far less energy than incandescent lamps and fluorescent tubes last a great deal longer as well. Other advantages are d...
12VDC Fluorescent Lamp Driver
A number of people have been unable to find the transformer needed for the Black Light project, so I looked around to see if I could find a ...
16w 12v fluorescent inverter with AC output
This inverter will drive any fluorescent lamp between 8w and 20w but works best with 16w tubes. It preheats the electrodes and keeps them he...
40W Fluorescent Lamp Inverter
This 40W fluorescent lamp inverter allows you to run 40W fluorescent tubes from any 12V source capable of delivering 3A. This is basically a...
Fluorescent Lamp Lighting
...
ICB1FL02G Smart Ballast Control IC For Fluorescent Lamp Ballasts
The ICL7665S Super CMOS Micropower Over/Under Voltage Detector contains two low power, individually programmable Voltage detectors on a sing...
8W Flouroscent lamp driver
Here is the schematic of a simple flouroscent lamp driver circuit based on two transistors. The circuit uses capacitive ballasting for drivi...
4W Fluorescent lamp driver
This is a simple 4 W fluorescent lamp driver circuit that can be operated from a 12 V supply. The first part of the circuit includes a NE555...
12 V Florescent lamp driver circuit
Here is a simple and effective circuit for driving florescent lamps from a 12 V supply. The circuit is nothing but consists of an oscillator...
12 Volt DC Fluorescent Lamp Driver
A number of people have been unable to find the transformer needed for the Black Light project, so I looked around to see if I could find a ...
fluorescent lamps electronic starter
...
20w-40w fluorescent lamp inverter
...
Fluorescent lamp
Typical F71T12 100 W bi-pin lamp used in tanning beds. Note the (Hg) symbol indicating it contains mercury. In the US this symbol is now req...
fluorescent lamp project
Compact Fluorescent Lamps [CFL] are low in price, plentiful and easy to find. Unfortunately, the current crop of these lamps seldom lasts as...
8W Fluorescent Lamp Inverter circuit
This circuit is basically a 8W inverter circuit. The circuit continues to be intended to drive an 8W fluorescent lamp from a 12V power suppl...
5W FLUORESCENT LAMP INTENSITY MODULATOR
The circuit was designed to experiment with using small fluorescent lamps as a broad pattern source of modulated light. The circuit hits the...
12V DC Fluorescent Lamp Circuit
In this article I will offer driver circuit for 12 V/5Watt fluorescent lamp, this circuit used a normal 220 to 10V stepdown transformer in r...
Cold-Cathode Fluorescent-Lamp Power Supply Circuit
This circuit is a 92%-efficient power supply for colrl-cathode fluorescent lamps (CCFLs), which are used to backlight LCD in portable equip...
Cold-Cathode Fluorescent-Lamp Supply
For back-lit LCD displays, this supply will drive a lamp. LT1072 drives Ql and Q2, and a sine wave app...
8W-fworescent-lamp-inverter
This circuit has been designed to drive an 8-W fluorescent lamp from a 12-V source using an inexpensive inverter based on the ZTX652 transi...
12 Volt Fluorescent Lamp circuits
Here is the schematic diagram for a 20 Watt driver. I developed this circuit in 1985, and used it to build a lamp that found much use both a...
40W Fluorescent Lamp Inverter
This 40W fluorescent lamp inverter allows you to run 40W fluorescent tubes from any 12V source capable of delivering 3A. This is basically a...
40W Fluorescent Lamp Inverter
This 40W fluorescent lamp inverter allows you to run 40W fluorescent tubes from any 12V source capable of delivering 3A. This is basically a...
12VDC Fluorescent Lamp Driver
A number of people have been unable to find the transformer needed for the Black Light project, so I looked around to see if I could find a ...
12VDC Fluorescent Lamp Driver
A number of people have been unable to find the transformer needed for the Black Light project, so I looked around to see if I could find a ...
