Blackout emergency lights circuit 2
Figure 282 foot another simple power outage should emergency lamp circuit. When the grid is often only power and municipal electricity by T ...
Automatic Emergency Light
The circuit below is an automatic switch-on emergency light. With IC as automatic controller, and and over charger protector. This circuit w...
Emergency Light & Alarm
...
IC Controlled Emergency Light With Charger Circuit
Here is the circuit diagram of IC Controlled Emergancy Light With Charger or simply 12V to 220V AC inverter circuit. The circuit shown here ...
Fully Automatic Emergency Light
The charging circuit stops automatically when the battery is fully charged. So you can leave the emergency light connected to AC mains overn...
Emergency Light & Alarm Project
...
IC Controlled Emergency Light With Charger Circuit
Here is the circuit diagram of IC Controlled Emergancy Light With Charger or simply 12V to 220V AC inverter circuit. The circuit shown here ...
Automatic Low-Power Emergancy Light circuit
Here is a white-LED-based emergency light that offers the following advantages. 1-It is highly bright due to the use of white LEDs. 2-The li...
Emergency Light and Alarm circuit
This circuit is permanently plugged into a mains socket and NI-CD batteries are trickle-charged. When a power outage occurs, the lamp automa...
Battery Guard for Emergency Lights
As the name implies,emergency light is a source of light available during an emergency.It is an automatic system in which a rechargeable bat...
emergency light circuit diagram
The circuit of automatic emergency light presented here has the following features: 1. When the mains supply (230V AC) is available, it char...
Fully Automatic Emergency Light
This simple automatic emergency light has the following advantages over conventional emergency lights: The charging circuit stops automatica...
Simple Emergency Light
This is an automatic emergency lamp with day light sensing, means it senses darkness/night and turns ON automatically. Similarly it senses d...
IC Controlled Emergency Light With Charger Circuit
Here is the circuit diagram of IC Controlled Emergancy Light With Charger or simply 12V to 220V AC inverter circuit. The circuit shown here ...
Emergency Light and Alarm
This circuit is permanently plugged into a mains socket and NI-CD batteries are trickle-charged. When a power outage occurs, the lamp automa...
Emergency Light With Battery Charger
The following circuit shows about Emergency Light With Battery Charger Circuit Diagram. Features:automatic switching-on of the light on main...

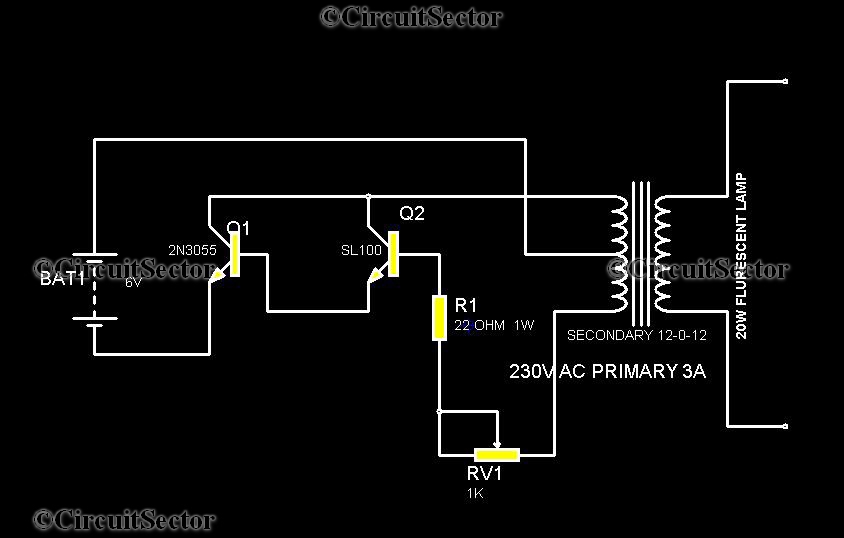

20W Low cost Emergency Light PCB
Here is simple circuit of a simple emergency light that can be constructed without much pain. The components of this circuit are 2 transisto...
make a plug in emergency light with a li ion battery
...
emergency light circuit diagram
Battery charging circuit, power supply via Q2, Q6, R8, D10 constant current charging the battery. When external power supply, the charging c...

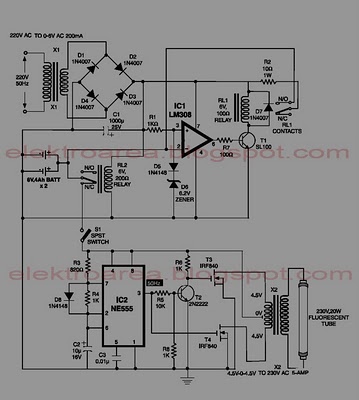

neon emergency light battery schematic
This circuit is IC controlled emergency light. This series of automatic switching-on of the light on mains failure and battery charger with ...
emergency light alarm
This circuit is permanently plugged into a mains socket and NI-CD batteries are trickle-charged. When a power outage occurs, the lamp automa...
fully automatic emergency light
The charging circuit stops automatically when the battery is fully charged. So you can leave the emergency light connected to AC mains overn...

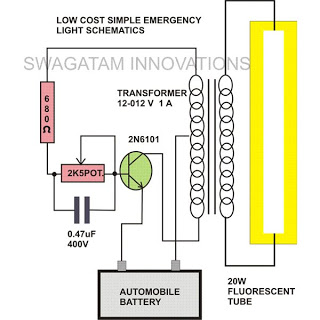

simple 20 watt tube emergency light
This simple home emergency lights uses very few components yet is able to produce a reasonable amount of light. The components used are very...
cheap emergency light circuit diagram

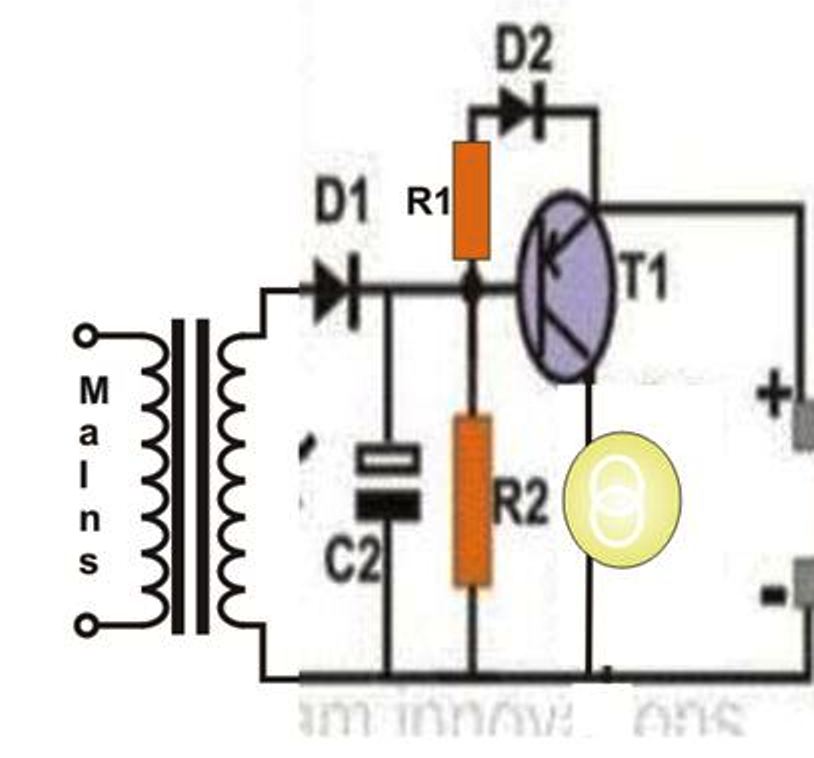

Though it`s the world LEDs today, an ordinary flashlight bulb can also be considered a useful light emitting candidate especially because it...
philips emergency light circuit
...
Simple Emergency Lamp
The circuit within the dotted line for a mini emergency light can be incorporated into any battery eliminator, provided the eliminator`s vol...

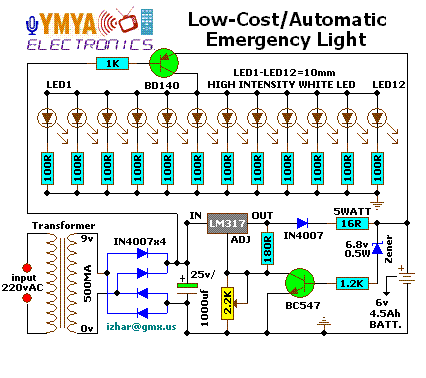

Automatic Electronic Emergency Light Circuit Low Cost
The circuit comprises two sections: charger power supply and LED driver. The charger power supply section is built around 3-terminal adjusta...
6 Volt Automatic Emergency Light Battery
This circuit is IC controlled emergency light. This series of automatic switching-on of the sunshine on mains failure and battery charger wi...
Automatic Switching-on Emergency Light
When mains is absent, relay RL2 is in deenergised state, feeding battery supply to inverter section via its N/ C contacts and switch S1. The...
IC Controlled Emergency Light With Charger Circuit
Here is the circuit diagram of IC Controlled Emergancy Light With Charger or simply 12V to 220V AC inverter circuit. The circuit shown here ...
Automatic emergency light circuit
This low cost automatic emergency lighting circuit turns on a lamp during power failures. It is powered by a NiCad battery that is being cha...
Automatic Emergency Light Circuit
...
IC Controlled Emergency Light with Charger Circuit Schematic Free With Explanation
The circuit shown here is that of the IC controlled emergency light. Its main features are: automatic switching-on of the light on mains fai...
Emergency light
This simple circuit providers battery operated emergency lighting instantaneously upon failure of the regular ac service. When line power is...
Mains supply fail Emergency Light
The circuit comprises two sections: charger power supply and LED driver.The charger power supply section is
built around 3-terminal adjusta...
Emergency Light & Alarm
This circuit is permanently plugged into a mains socket and NI-CD batteries are trickle-charged. When a power outage occurs, the lamp automa...
Emergency Light & Alarm
This circuit is permanently plugged into a mains socket and NI-CD batteries are trickle-charged. When a power outage occurs, the lamp automa...
