Break burglar alarm circuit II
Ding for the circuit principle: care, vs SCR trigger grounded, it is in the off state. When someone leads A burglar broke, the SCR trigger e...
Burglar alarm bell
Circuit operation principle of the device shown in Fig. Shaped permanent magnet mounted on the door ZT activity, normally closed reed AG mo...
Practical gated burglar alarm circuit diagram
Circuit as shown by the triggering device, monostable delay circuit, the alarm sound generator, audio amplifier circuit, light control circ...
Burglar alarm circuit
A simple burglar alarm circuits, sensors pyroelectric sensor IRA-E100SZI. When human movement is detected, the pressure on the electric buzz...
Vibration burglar alarm circuit
It uses the HL-169B-type voice alarm IC A. It can be used for safe, glass doors, car doors and windows burglar alarm and other occasions. Wh...
Automated Attendant burglar alarm circuit
It shows an automatic unattended burglar alarm circuit, mainly for family night, warehouses and other occasions automatic unattended. The ci...
Automatic Garage / Shed Alarm
This is a simple single-zone burglar alarm. The basic design includes automatic Exit and Entry delays. It doesn`t include a siren cut-off ti...
How To Build A One-Time-Only >> Burglar Alarm Circuit
This alarm is designed to sound its Siren only once. That is - when the alarm is activated - the Siren will sound for a preset length of tim...
Modular Burglar Alarm
The Basic Alarm Circuit has an automatic Exit/Entry Zone - an Instant Alarm Zone that will accept both normally-closed and normally-open tri...
A Battery Powered Burglar Alarm With A Timed Siren Cut-Off
This is a single zone alarm - with independently adjustable Exit, Entry and Siren Cut-Off timers. It will accommodate the usual types of nor...
Burglar Alarm Works for Both N.O and N.C Contacts
Unlike other alarm circuit that provide normally-open only or normally-closed only configuration, this alarm circuit work for both configura...
Low Cost Burglar Alarm For Boats
This low-cost burglar alarm employs a 12V strobe light and a truck reversing horn as the visible and audible alarm outputs while the alarm i...
TYN612 SENSITIVE & STANDARD(12A SCRs)
Circuit The circuit diagram of window foil burglar alarm has been published here. The main parts of this circuit are SCR H1 (TYN 612) and tr...
Modular Burglar Alarm Project
This circuit features automatic Exit and Entry delays and a timed Bell Cut-off. It has provision for both normally-closed and normally-open ...
A Simpler Cmos Single Zone Alarm circuit
This is a simple single-zone burglar alarm circuit. Its features include automatic Exit and Entry delays and a timed Bell/Siren Cut-Off. It`...
An Expandable Multi-Zone Modular Burglar Alarm circuit
This circuit features automatic Exit and Entry delays and a timed Bell Cut-off. It has provision for both normally-closed and normally-open ...
Two-Zone Burglar Alarm circuit
This two-zone alarm has automatic exit, entry and siren cut-off timers. It was developed for the Beginner`s Guide To Cmos Timers. So it has ...
Modular Burglar Alarm
This circuit features automatic Exit and Entry delays and a timed Bell Cut-off. It has provision for both normally-closed and normally-open ...
Shed/Garage Alarm
This is a simple single-zone burglar alarm circuit. Its features include automatic Exit and Entry delays. It`s designed to be used with the ...
4 i n 1 burglar alarm circuit diagram
I n this circuit, the alarm will be switched on under the following four different conditions: 1. When light falls on LDR1 (at the entry to ...
Low Cost Burglar Alarm For Boats
This low-cost burglar alarm employs a 12V strobe light and a truck reversing horn as the visible and audible alarm outputs while the alarm i...
12-volt Modular Burglar Alarm Sensor
The following circuit shows about 12-volt Modular Burglar Alarm Sensor Circuit Diagram. Features: a timed Bell Cut-off., automatic Exit and ...
Burglar Alarm Circuit with Diagram
A simple burglar alarm circuit diagram and schematic. This can be used as anti theft alarm by attaching the burglar alarm circuit to window ...
Simple Burglar Alarm circuit
This is a simple single-zone burglar alarm circuit. Its features include automatic Exit and Entry delays and a timed Bell/Siren Cut-Off. It`...
4 in 1 burglar alarm pcb
I n this circuit, the alarm will be switched on under the following four different conditions: 1. When light falls on LDR1 (at the entry to ...
one time only burglar alarm
This alarm is designed to sound its Siren only once. That is - when the alarm is activated - the Siren will sound for a preset length of tim...
garageshed alarm
This is a simple single-zone burglar alarm circuit. Its features include automatic Exit and Entry delays. It`s designed to be used with the ...
modular burglar alarm
This circuit features automatic Exit and Entry delays and a timed Bell Cut-off. It has provision for both normally-closed and normally-open ...
shed garage alarm
This is a basic single-zone burglar alarm circuit. Its features include automatic Exit and Entry delays - and an optional Siren Cut-Off time...
one time only burglar alarm
When this alarm is activated its Siren will sound once - for up to 20-minutes. Then it will switch off and remain off. The basic circuit has...
two zone burglar alarm
This two-zone alarm has automatic exit, entry and siren cut-off timers. It was developed for the Beginner`s Guide To Cmos Timers. So it has ...
burglar alarm circuits with timer delay
...
make these simple cheap home burglar

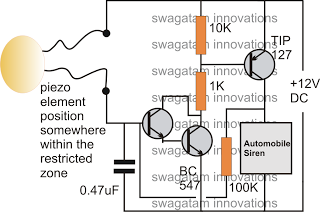

The following article discusses a few very simple intrusion detector circuits, or simply burglar alarm circuits. The presented designs are s...
Burglar alarm
...
Advance Burglar alarm from dual-op amp
Device such as burglar alarms and sirens, whose basic purpose is to monitor tested circuit diagram with description of burglar alarm alarm u...
Two-Zone Burglar Alarm
This is a two-zone alarm - with automatic exit, entry and siren cut-off timers. It can be triggered by the usual types of normally-closed in...
Two-Zone Burglar Alarm
This two-zone alarm has automatic exit, entry and siren cut-off timers. It was developed for the Beginner`s Guide To Cmos Timers. So it has ...
Battery Powered Burglar Alarm
This is a single zone alarm - with independently adjustable Exit, Entry and Siren Cut-Off timers. It will accommodate the usual types of nor...
with scr new alarm Window foil burglar
Here is a simple but effective burglar alarm circuit that can be fixed on windows to detect break throughs. The circuit uses a fine wire ele...
Exit Delay For Burglar Alarms Circuit
Depressing SI charges CI to the supply voltage. This biases Ql on via bias resistors R2 and R3. A voltage is available for the duration of ...
Simple Burglar Alarm
Using one IC and a driver transistor, this simple alarm uses either NO or NC sensors. When a sensor operates, the inpu...
Burglar Alarm With Timed Shutoff
When SI (sensor) is closed, power is applied to U2, a dual timer. After a time determined by C2, CI is ene...
Burglar-alarm
This circuit cannot be shut off for 10 to 60 seconds-even if the trip condition is immediately removed. ...
Auto burglar alarm
Dome light current-through LI closes reed switch and sounds alarm...
Modular Burglar Alarm
This circuit features automatic Exit and Entry delays and a timed Bell Cut-off. It has provision for both normally-closed and normally-open ...
