Touch-on-off-electronic-switch
Description: Transistors Q1 and Q2 control latches Q3 and Q4 to switch on the lamp. A high resistance from touching the electrode biases Q1 or Q2 on, setting or resetting the latch.
In this circuit, transistors Q1 and Q2 function as input control elements that determine the state of latches Q3 and Q4. The operation begins when a user touches an electrode, which introduces a high resistance into the circuit. This high resistance effectively biases either Q1 or Q2 into the 'on' state, allowing current to flow through the respective transistor.
When Q1 is activated, it sends a signal to latch Q3, causing it to engage and switch on the lamp. Conversely, if Q2 is activated, it will send a signal to latch Q4, which also results in the lamp being turned on. The latches serve to maintain their state even after the initial triggering signal is removed, allowing for persistent control of the lamp.
The design ensures that the system can be easily reset; if the opposite transistor is activated, it can reset the latch and turn off the lamp. This mechanism provides a simple yet effective way to control the lamp's operation through a touch interface, utilizing the properties of transistors and latches for reliable performance. The circuit layout should include appropriate resistors to limit current and protect the transistors from damage, as well as capacitors for noise filtering, ensuring stable operation during switching events.Transistors Ql and Q2 control latch Q3 and Q4 to switch on the lamp. A high resistance from touching the electrode biases Qlor Q2 on, setting or resetting the latch.
In this circuit, transistors Q1 and Q2 function as input control elements that determine the state of latches Q3 and Q4. The operation begins when a user touches an electrode, which introduces a high resistance into the circuit. This high resistance effectively biases either Q1 or Q2 into the 'on' state, allowing current to flow through the respective transistor.
When Q1 is activated, it sends a signal to latch Q3, causing it to engage and switch on the lamp. Conversely, if Q2 is activated, it will send a signal to latch Q4, which also results in the lamp being turned on. The latches serve to maintain their state even after the initial triggering signal is removed, allowing for persistent control of the lamp.
The design ensures that the system can be easily reset; if the opposite transistor is activated, it can reset the latch and turn off the lamp. This mechanism provides a simple yet effective way to control the lamp's operation through a touch interface, utilizing the properties of transistors and latches for reliable performance. The circuit layout should include appropriate resistors to limit current and protect the transistors from damage, as well as capacitors for noise filtering, ensuring stable operation during switching events.Transistors Ql and Q2 control latch Q3 and Q4 to switch on the lamp. A high resistance from touching the electrode biases Qlor Q2 on, setting or resetting the latch.
Simple Two-Transistor Motorcycle Alarm
When one of the switches is closed, the base of Q1 is connected to ground through D1 and R2. This activates Q1, which in turn activates Q2. Q2 connects the positive side of the relay coil to the supply line,...
simple common emitter amplifier

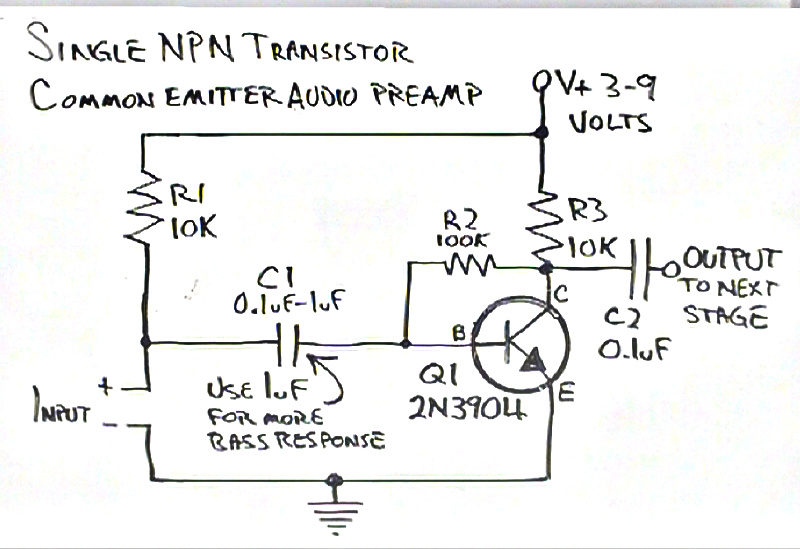

The biasing calculations for collector feedback common emitter amplifiers had not been previously addressed, particularly for a simple one-transistor NPN preamplifier built by Dino. Confusion arose regarding the role of resistor R1 in the schematic, which appeared to serve only...
A variable frequency oscillating circuit transistor
A variable frequency oscillator transistor circuit, primarily functioning as an oscillator, incorporates a crystal resonator and a varactor diode. The output is amplified, typically used for generating high-frequency signals. This 30 MHz transistor circuit features an inductor (LP) connected to...
Two-Transistor Sine-Wave Oscillator

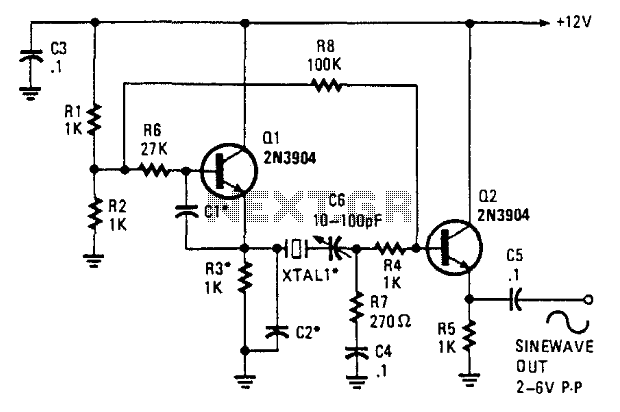

This oscillator employs two transistors and operates the crystal in its fundamental mode. Capacitors CT and C2 should be approximately 2,700 pF for 1 MHz, 680 pF for 5 MHz, and 330 pF for 10 MHz. A capacitance of 150...
The time delay circuit diagram composed of transistor

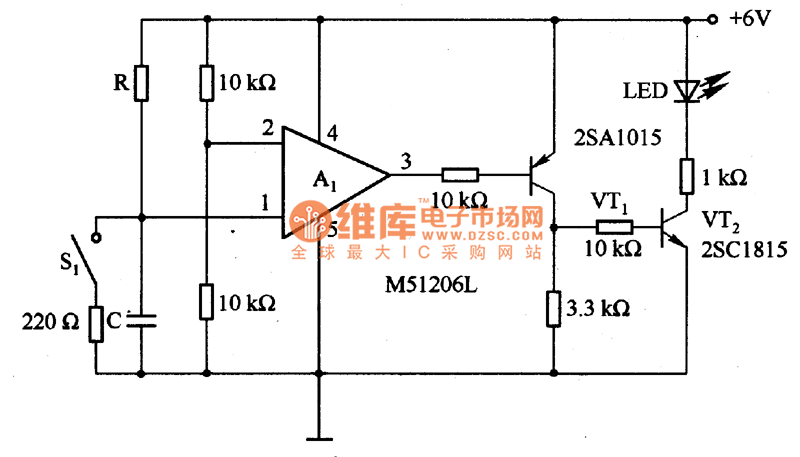

The circuit is designed to set a delay time based on the voltage Us and the resistor R. In this configuration, S1 acts as the discharge switch for capacitor C. When switch S1 is closed, the stored charge in capacitor...
Voice amplifier transistor
Dctl is a two-stage amplifier, with the first stage amplifying the collector voltage of transistor VT1. The second stage, represented by VT2, is proportional to the current flowing through the winding. The RF signal is applied to the sub-base of...
One Transistor Pump Building Block
This is a single transistor pump circuit. It is a straightforward circuit that is quite useful and can serve as a foundational component for designing more complex electronic systems.
The single transistor pump circuit utilizes a transistor as the primary active...
Mains undervoltage overvoltage protection circuit
The circuit employs a transistor control mechanism. When the grid voltage is within the normal range, relay KA is activated, supplying power to the load. If the grid voltage falls below the minimum allowable threshold (adjustable via potentiometer RPz) or...
Common emitter amplifier works a
A common emitter amplifier functions as a signal amplification unit by utilizing a common emitter configuration, which inverts the output signal. This operation can be analyzed by observing the input signal waveform. During the first quarter of the period, the...
