Description: One LED monitors three levels: 50, 70 & 85 dB. Useful to detect too noisy environments. This circuit is intended to signal, through a flashing LED, the exceeding of a fixed threshold in room noise, chosen from three fixed levels, namely 50, 70 & 85 dB. Two Op-amps provide the necessary circuit gain for sounds picked-up by a miniature electret microphone to drive a LED. With SW1 in the first position the circuit is off. Second, third and fourth positions power the circuit and set the input sensitivity threshold to 85, 70 & 50 dB respectively. More: Current drawing is <1mA with LED off and 12-15mA when the LED is steady on. Place the small box containing the circuit in the room where you intend to measure ambient noise. The 50 dB setting is provided to monitor the noise in the bedroom.
This circuit utilizes a single LED to indicate ambient noise levels at three predefined thresholds: 50 dB, 70 dB, and 85 dB. The core of the circuit comprises two operational amplifiers (op-amps) configured as a gain stage to amplify the audio signals captured by a miniature electret microphone. The electret microphone converts sound waves into electrical signals, which are then processed by the op-amps to ensure that even low-level sounds can be effectively monitored.
The circuit is designed with a switch, SW1, which has four positions. In the first position, the circuit is powered off, conserving energy. In the second, third, and fourth positions, the circuit is powered on, and the sensitivity threshold is set to 85 dB, 70 dB, and 50 dB respectively. This allows users to select the desired noise level for monitoring, making it versatile for different environments.
The LED serves as a visual indicator, flashing when the ambient noise exceeds the selected threshold. The current consumption of the circuit is notably low, drawing less than 1 mA when the LED is off, and between 12 to 15 mA when the LED is illuminated steadily. This efficiency makes the circuit suitable for prolonged use in various settings, including bedrooms where monitoring for excessive noise levels is critical for maintaining a peaceful environment.
To implement this circuit, it is recommended to place the enclosure containing the circuit in the area where noise levels are to be monitored. The design ensures that the 50 dB setting is particularly useful for quiet environments like bedrooms, allowing for effective monitoring of sound levels that could disrupt sleep. Overall, this noise level monitoring circuit is a practical solution for detecting and signaling excessive noise in various settings.One LED monitors three levels: 50, 70 & 85 dB
Useful to detect too noisy environments. This circuit is intended to signal, through a flashing LED, the exceeding of a fixed threshold in room noise, chosen from three fixed levels, namely 50, 70 & 85 dB. Two Op-amps provide the necessary circuit gain for sounds picked-up by a miniature electret microphone to drive a LED.
With SW1 in the first position the circuit is off. Second, third and fourth positions power the circuit and set the input sensitivity threshold to 85, 70 & 50 dB respectively. Current drawing is <1mA with LED off and 12-15mA when the LED is steady on. * Place the small box containing the circuit in the room where you intend to measure ambient noise. * The 50 dB setting is provided to monitor the noise in the bedroom
Create an oscillator circuit using an operational amplifier and a 7.68 MHz crystal. The design should be similar to the schematic provided below, but specifically tailored for a 7.68 MHz crystal. The available components include the crystal, various capacitors, resistors,...
The figure illustrates a fundamental two-channel operational amplifier (op-amp) mixer circuit. The gain for channel 1 is determined by the ratio of resistors R5 to R1, while for channel 2, it is determined by the ratio of R5 to R2....
The circuit was designed based on the functionality of an operational amplifier to create a Wien bridge oscillator that generates sine waves in the frequency range of 15 Hz.
The Wien bridge oscillator is a type of electronic oscillator that produces...
The circuit illustrates a straightforward triangle and square wave generator utilizing a common dual operational amplifier, the LM1558, capable of producing very low frequencies around 10 kHz. The time interval for one half-cycle is approximately determined by the product of...
The BiMOS CA3140 operational amplifier offers excellent orientation capabilities for high bandwidth signal inputs and can swiftly adjust the energy output at its terminal CA33IO WINE. The CA3140 can also operate close to the negative supply rail. If the power...

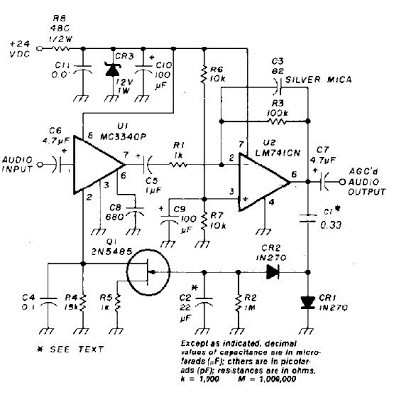

An audio signal applied to VI is passed through the operational amplifier 741, U2. After being amplified, the output signal V2 is sampled and applied to a negative voltage doubler/rectifier circuit composed of diodes CR1 and CR2, along with capacitor...
The following schematic illustrates the Simple Op-Amp Radio Circuit Diagram sourced from bowdenshobbycircuits.info. This Simple Op-Amp Radio essentially functions as a crystal radio.
The Simple Op-Amp Radio Circuit utilizes an operational amplifier (op-amp) to enhance the performance of a basic crystal...
A simple power operational amplifier circuit designed for operation up to 300 Hz. One variant of this circuit presents challenges in protecting the flow regulator due to its fixed nature, rendering standard protections ineffective. The circuit is intended to limit...
In this circuit, a standard operational amplifier (op-amp) is configured as an astable multivibrator. The output is non-symmetrical, but it has the advantage of being controlled by only one resistor and one capacitor: a 100k variable resistor (U2) and a...
