Description: A single operational amplifier, one-fourth of an LM324 quad op-amp, is configured as a standard inverting amplifier. Upon power-up, a positive voltage is applied to the non-inverting input of U1 through resistor R3, which drives its output high. This high output is directed along three paths. The first path is the tone output. The second path uses resistor R5, where the high output is fed back through resistor R4 to the inverting input of U1, causing U1's output to go low. This low output, when fed back to the inverting input of U1, results in the op-amp output returning to a high state, thus repeating the cycle. The configuration of U1 provides a voltage gain of 4.7 (gain = R4/R1). The outer ring of the piezo element is typically connected to the circuit ground, while the large inner circle serves as the driven area, and the small elongated section provides the feedback signal. Resistor R5 adjusts the output volume of BZ1. The volume can be increased by decreasing R5, for example, to 470 ohms, or decreased by increasing R5 to approximately 2.2 kilohms. Resistors R2 and R3 are used to set the bias for the positive input pin 3 of op-amp U1 to half of the supply voltage level, allowing for maximum voltage swing at U1's output. Although a quad op-amp is specified, any similar low-cost single or dual op-amp can be utilized for U1a.
The described circuit utilizes a single operational amplifier configured as an inverting amplifier to create a feedback loop that generates oscillations. The positive voltage applied to the non-inverting input initiates the cycle, leading to a high output that drives the piezo element. The feedback mechanism established through resistors R4 and R5 is crucial for maintaining the oscillation, as it alternates the output between high and low states. The gain of the amplifier is determined by the ratio of resistors R4 and R1, enabling precise control over the amplification factor.
The piezo element's design is significant, with the outer ring connected to ground ensuring a stable reference point. The inner circle's function as the driven area allows for effective sound generation, while the feedback section ensures that the oscillation frequency can be tuned. Adjusting R5 alters the volume output, providing flexibility in sound level management. Resistors R2 and R3 are critical for biasing the op-amp, ensuring that the input signal can swing fully between the supply voltage limits without distortion.
In applications where a quad op-amp is not available, the design's versatility allows for the use of alternative op-amps, ensuring that the circuit remains cost-effective and adaptable to various components. This configuration is ideal for generating sound signals in electronic devices, offering a compact solution for audio applications.A single op amp, one fourth of an LM324 quad op amp, is configured as a standard inverting amplifier. At power up, a positive voltage is applied to the noninverting input of Ul, via R3, forcing its output high.
That high output travels along three paths.. The first path is the tone output. Along the second path, by way of R5, that high is used as the drive Ul is fed back, via R4, to the inverting input of Ul. That forces Ul "s output to go low. And that low, when fed back to the inverting input of Ul, causes the op amp output again to a high, and the cycle repeats itself. As configured, Ul provides a voltage gain of4.7 (gain= R4/Rl). The outer ring of the piezo element is usually connected to the circuit ground. The large inner circle serves as the driven area, and the small elongated section supplies the feedback signal.
Resistor R5 sets BZl"s output-volume level. That level can be increased by decreasing R5 for example, to 470 ohm. To decrease the volume, increase R5 to about 2.2 Kohm, or so. Resistors R2 and R3 set the bias for op amp Ul"s positive input pin 3 to half of the supply-volt ·age level. That allows fora maximum voltage swing at U1 "s output. Although a quad op amp is specified, almost-any similar low cost single or dual op amp will work for U1a.
A chopper circuit is illustrated in the figure. The circuit utilizes a high-performance operational amplifier, MC33171, to create a trap. This device features a wide bandwidth and a high conversion rate. The component values can be modified by adjusting the...

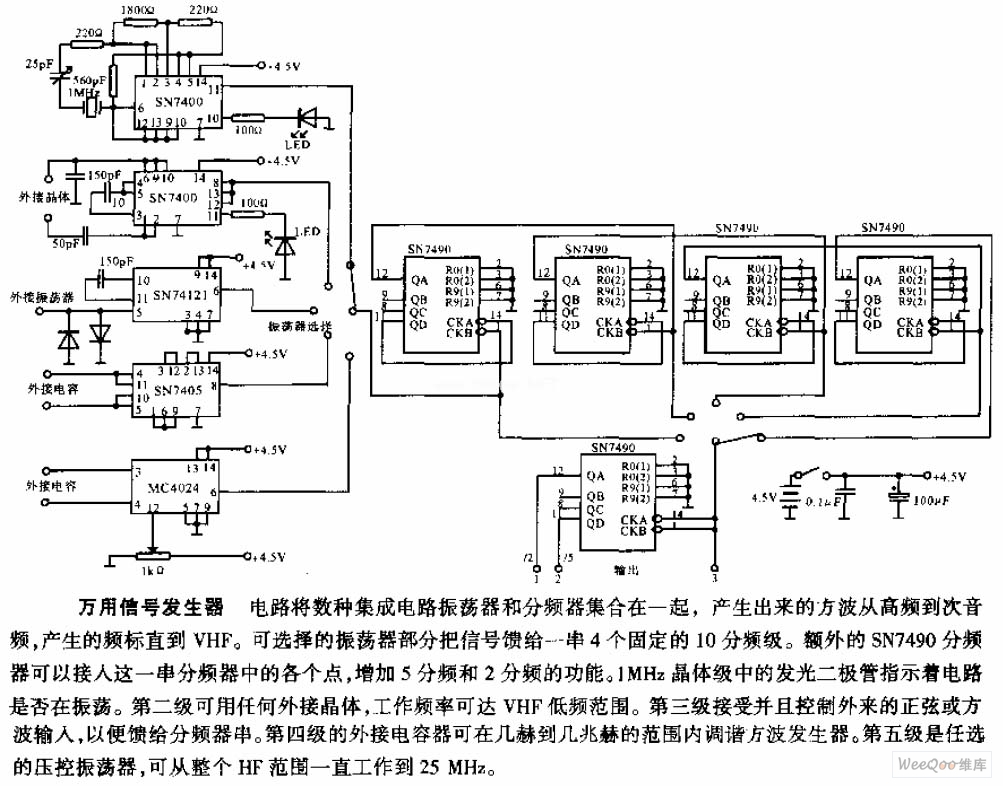

The multi-purpose signal generator circuit consists of integrated circuit oscillators and frequency dividers. It generates square waves ranging from high frequencies to sub-audio frequencies and also produces a frequency standard in the VHF range. The alternative oscillator section feeds the...
This application note explains how the transfer function of most operational amplifier circuits can be derived through a straightforward process of nodal analysis.
The transfer function of operational amplifier (op amp) circuits is a critical aspect for understanding their behavior in...
The circuit is designed to drive an external load. A fault condition in the external load circuit could feed excessive current or voltage back into the line drive circuit. If excessive voltage appears from the load, the two zener diodes...
The circuit remains in a stable state until a triggering signal is applied to its input. Upon receiving the triggering signal, the output transitions from a stable state to a quasi-stable state and returns after a specified time period, generating...

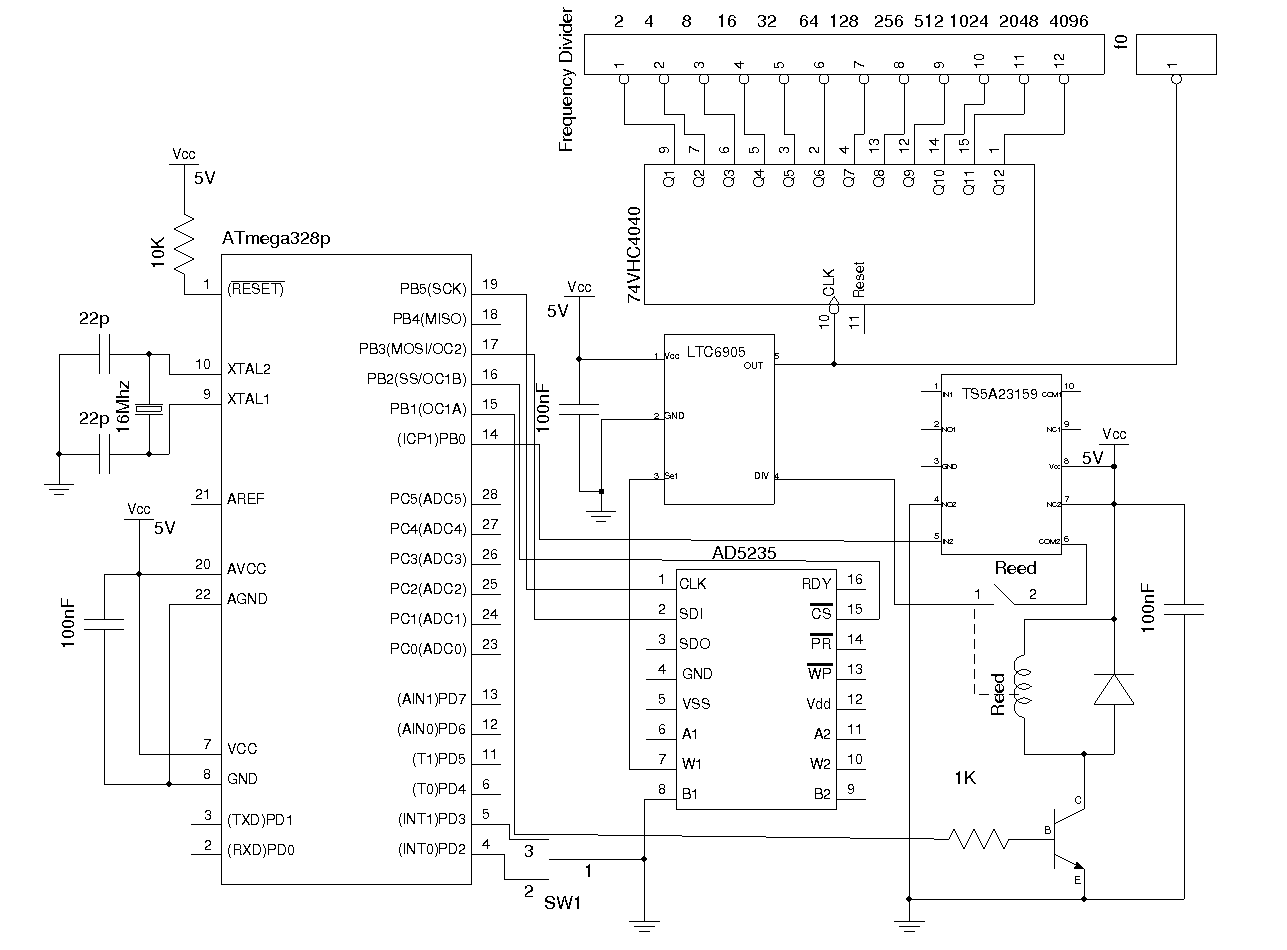

Most commercial-grade signal generators provide more than just sinusoidal waveform output, but they tend to be expensive for casual use. This article presents a simple wideband signal generator built around Linear Technology's LTC6905 Silicon Oscillator, capable of generating frequencies from...
A microphone (MIC) is used to capture sound, which is then converted into a voltage signal. An operational amplifier (op-amp A) acts as a buffer; one output is directed to a motor drive circuit to control the motor's rotation in...

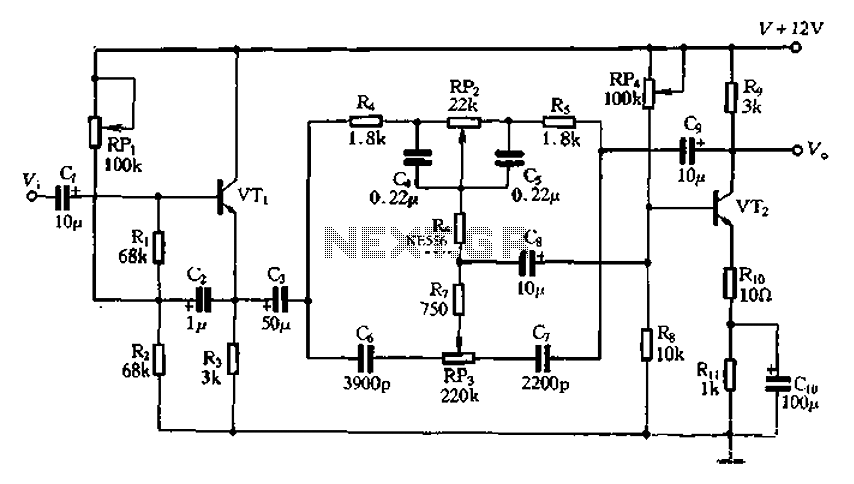

The attenuation circuit is a feedback tone control system that consists of transistors and an RC network. The circuit includes a low tone control potentiometer (RP2) and a treble control potentiometer (RP3). The bass control is influenced by resistor R5,...
