Description: The output can also be taken from the collector terminals of the transistors, as illustrated in the circuit below. To understand the operation of the circuit, it is recommended to read about how a transistor functions as a switch.
In a typical transistor switching circuit, the transistor operates in two states: saturation and cutoff. When the transistor is in saturation, it allows maximum current to flow from the collector to the emitter, effectively acting as a closed switch. Conversely, in the cutoff state, the transistor prevents current flow, acting as an open switch.
The circuit can be configured with various components such as resistors, capacitors, and additional transistors to create more complex switching applications. The base terminal of the transistor is controlled by an input signal, which determines whether the transistor is in the on or off state.
For instance, a resistor may be connected to the base to limit the current flowing into it, ensuring the transistor operates within its safe limits. The collector terminal can be connected to a load, such as an LED or motor, which will be activated when the transistor is in the saturation state.
Understanding the behavior of the transistor in this configuration is essential for designing reliable electronic circuits. Proper biasing and component selection are critical to ensure the transistor switches effectively and does not enter undesirable operating regions. Additionally, the characteristics of the transistor, such as its current gain (beta), must be considered when designing the circuit to achieve the desired output performance.We can also take output from collector terminals of the transistors, such circuit is show below. To know the working of below circuit you must read How transistor acts as a switch
This dual astable multivibrator offers versatility not found in single timer circuits. The duty cycle can be adjusted from 5% to 95%. The two outputs generate two-phase clock signals, which are frequently required in digital systems. Additionally, it can be...
A circuit involving oscillations is composed of a Houle Wang oscillator that utilizes a transistor configuration with components labeled Ti, n, and n, along with a composition of Q constants for the cycle. The waveform can be modified by changing...
It had been a little over a decade since the invention of the transistor when this article appeared in the August 1959 edition of Popular Electronics. Transistors were still a mystery to many, including engineers, technicians, and hobbyists. Author James...
The frequency of a transistor oscillator is regulated by two different lengths of nickel tubing, each containing two coil windings. One coil functions as a driver, while the other serves as a pickup to generate feedback voltage necessary for maintaining...
The circuit requires two transistors to drive a relay, which acts as a switch to activate a buzzer. Any number of normally-open switches may be applied. Mercury switches should be installed to ensure they close when the steering is engaged....

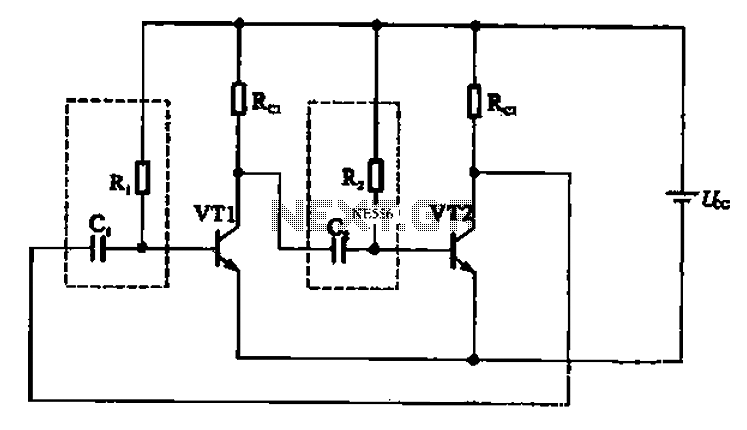

An astable multivibrator is constructed using multiple electronic components and is commonly utilized in pulse signal generation circuits. It operates as depicted in Figure 17-18. The configuration involves two transistors, VT1 and VT2, coupled to capacitor C2 and resistor Rz....
Transistor Q1 in the headset amplifier circuit amplifies the 30 mV signal intended for the earphones to 0.5 V, which is sufficient to drive stereo earphones. Capacitor C1 blocks any DC current from shorting back into the telephone base. Capacitor...
This simple square-wave generator produces a variable frequency output ranging from 2800 Hz to 80 kHz, as indicated by the specified values. The frequency can be adjusted using potentiometer R1.
The square-wave generator circuit typically employs a combination of resistors, capacitors,...
This is a transistor inverter circuit diagram rated for 100 watts, designed as an easy-to-build circuit. It utilizes only transistors and does not incorporate any integrated circuits. The circuit converts a 12V battery input to a 220V, 50Hz square wave...
