Double interlocking three-phase asynchronous motor control
Description: The forward and reverse dual interlock control circuit is based on the control circuit depicted in Figure 4-4, with an enhancement that incorporates a composite mechanical button interlock. The advantage of this circuit is that it allows the motor to run in either forward or reverse without the need to press the stop button SB1; simply pressing the opposite start button SB3 will initiate the desired direction. This circuit features both electrical and mechanical interlocks, which not only enhance control reliability but also facilitate forward, reverse, and stop operations.
The forward and reverse dual interlock control circuit is designed to enhance the operational safety and reliability of motor control systems. The circuit employs a combination of mechanical and electrical interlocks to prevent simultaneous activation of forward and reverse operations, which could otherwise lead to equipment damage or hazardous conditions.
In this circuit, two start buttons, SB3 and SB4, are utilized for forward and reverse motor operations, respectively. The mechanical interlock ensures that pressing one button will physically prevent the other from being engaged, thereby enforcing a clear operational protocol. The electrical interlock further reinforces this by using relay contacts that disengage the opposite start button when one is activated.
The circuit typically includes a power source connected to the motor through a relay system. When the user presses the forward start button (SB3), the relay engages, allowing current to flow to the motor in the forward direction. Simultaneously, the mechanical interlock prevents the reverse button (SB4) from being pressed. If the user wishes to change the direction of the motor, they can simply press the reverse button (SB4) without needing to first stop the motor with SB1. The electrical interlock ensures that the motor is safely stopped before reversing direction, thus preventing any potential damage.
In addition to the interlock features, the circuit can be designed to include indicator lights that signal the current operational status of the motor (forward, reverse, or stopped). This provides visual feedback to the operator, enhancing safety and operational awareness.
Overall, the forward and reverse dual interlock control circuit is a sophisticated solution for controlling motor operations, emphasizing safety, reliability, and user convenience in various industrial and commercial applications.Shown in forward and reverse dual interlock control circuit, on the basis of the control circuit in Figure 4-4 on the increase in the composite mechanical buttons mutual lock link. The advantage of this circuit is: If you want to run the motor forward reverse, do not press the stop button SB1, as long as the direct anti-press to turn the start button SB3; of course, from forward to reverse operation, as well. This circuit has a dual electrical and mechanical interlock, not only to improve the reliability of control, and can achieve a reverse forward a stop a stop control, but also to achieve a forward reverse a stop control.
By varying either R1 or R2, the oscillator frequency can be adjusted over a narrow range. The R3/R4 ratio sets the second amplifier's gain to compensate for signal attenuation occurring in the phase shifters. The circuits can be driven from...
A three-phase squirrel cage induction motor is driven by a prime mover (such as diesel engines) and has asynchronous motor stator windings connected to the output end along with several capacitors for excitation power, enabling it to produce three-phase alternating...

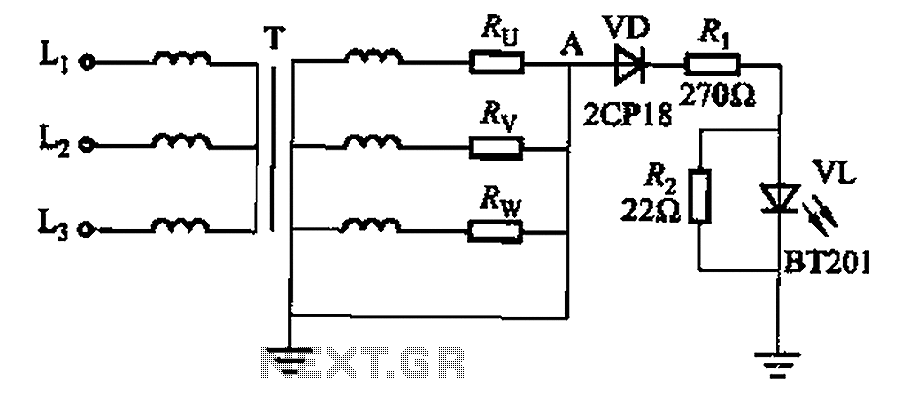

It is well understood that if the power transformer neutral line is disrupted, an unbalanced three-phase load can easily result in overvoltage conditions, potentially damaging electrical equipment such as household appliances and lamps. The neutral circuit alarm system is designed...
As shown, (a) for the three-phase step wave inverter output transformer winding connections; (b) in the figure, its output waveform.
The three-phase step wave inverter is designed to convert direct current (DC) into a three-phase alternating current (AC) output. This inverter...
Adjusting the phase potentiometer RP can change the conduction angle of each corresponding thyristor (V1-V). This adjustment alters the voltage applied across the load.
The circuit utilizes a phase control technique to manage the power delivered to a load by varying...

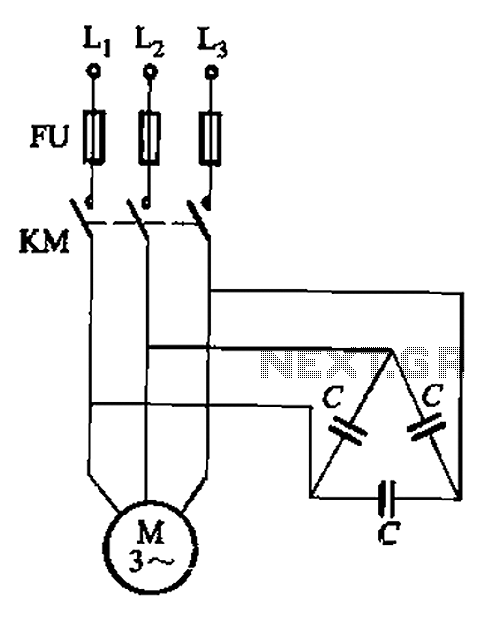

Asynchronous motor reactive power compensation involves directly connecting a capacitor to the stator windings of the asynchronous motor to enhance its power factor. This method is particularly effective for synchronous motors, as it reduces energy consumption related to reactive power....
