Music Light Show
#music
#light show
#SCR
#transformer
#sound frequency
#resistor
#capacitor
#volume control
#isolation
Description: The circuit connects to the speaker outputs of your stereo or to the back of your speaker. The music passes through the transformer and the volume level is adjusted by the 5k ohm pot. Each light bulb is turned on by a different frequency of sound based on the resistor & capacitor combination in the gate circuit of the SCR. If the resistors R1, R2, or R3 are changed, the frequency of sound that will trigger the SCR will change. The isolation transformer is for protection.
The described circuit serves as a sound-activated lighting system, where audio signals from a stereo or speaker output are utilized to control the illumination of light bulbs. The initial connection is made to the speaker outputs, allowing the circuit to capture the audio signal directly. An isolation transformer is employed to ensure that the circuit remains electrically isolated from the audio source, providing protection against voltage spikes and ensuring safe operation.
The audio signal is then routed through the transformer, which can help in impedance matching and signal conditioning. A 5k ohm potentiometer (pot) is integrated into the circuit to allow for manual adjustment of the volume level, enabling users to set the desired sensitivity of the circuit to the incoming audio signals.
The core functionality of the circuit lies in its ability to respond to different frequencies of sound. This is achieved through a gate circuit that utilizes a Silicon Controlled Rectifier (SCR). The SCR acts as a switch that is triggered by specific frequency ranges, which are determined by the resistor (R1, R2, R3) and capacitor combinations. Each light bulb in the circuit corresponds to a specific frequency range; when the audio signal reaches a frequency that matches the configured parameters of the gate circuit, the SCR is activated, allowing current to flow to the respective light bulb, illuminating it.
Adjusting the values of resistors R1, R2, or R3 will alter the frequency response of the gate circuit, thereby changing the audio frequency that will trigger the SCR. This feature allows for customization of the circuit to respond to different types of music or sound frequencies, enhancing the visual experience in conjunction with the audio.
The overall design emphasizes safety and adaptability, making it suitable for various applications where sound-activated lighting is desired, such as in home entertainment systems, parties, or artistic installations. Proper consideration should be given to the ratings of the components used, particularly the SCR and the light bulbs, to ensure reliable operation and prevent damage to the circuit.The circuit connects to the speaker outputs of your stereo or to the back of your speaker. The music passes through the transformer and the volume level is adjusted by the 5k ohm pot. Each light bulb is turn on by a different frequency of sound based on the resistor & capacitor combination in the gate circuit of the SCR. If the resistors R1, R2, or R3 are changed, the frequency of sound that will trigger the SCR will change.
The isolation transformer is for protection.
The described circuit serves as a sound-activated lighting system, where audio signals from a stereo or speaker output are utilized to control the illumination of light bulbs. The initial connection is made to the speaker outputs, allowing the circuit to capture the audio signal directly. An isolation transformer is employed to ensure that the circuit remains electrically isolated from the audio source, providing protection against voltage spikes and ensuring safe operation.
The audio signal is then routed through the transformer, which can help in impedance matching and signal conditioning. A 5k ohm potentiometer (pot) is integrated into the circuit to allow for manual adjustment of the volume level, enabling users to set the desired sensitivity of the circuit to the incoming audio signals.
The core functionality of the circuit lies in its ability to respond to different frequencies of sound. This is achieved through a gate circuit that utilizes a Silicon Controlled Rectifier (SCR). The SCR acts as a switch that is triggered by specific frequency ranges, which are determined by the resistor (R1, R2, R3) and capacitor combinations. Each light bulb in the circuit corresponds to a specific frequency range; when the audio signal reaches a frequency that matches the configured parameters of the gate circuit, the SCR is activated, allowing current to flow to the respective light bulb, illuminating it.
Adjusting the values of resistors R1, R2, or R3 will alter the frequency response of the gate circuit, thereby changing the audio frequency that will trigger the SCR. This feature allows for customization of the circuit to respond to different types of music or sound frequencies, enhancing the visual experience in conjunction with the audio.
The overall design emphasizes safety and adaptability, making it suitable for various applications where sound-activated lighting is desired, such as in home entertainment systems, parties, or artistic installations. Proper consideration should be given to the ratings of the components used, particularly the SCR and the light bulbs, to ensure reliable operation and prevent damage to the circuit.The circuit connects to the speaker outputs of your stereo or to the back of your speaker. The music passes through the transformer and the volume level is adjusted by the 5k ohm pot. Each light bulb is turn on by a different frequency of sound based on the resistor & capacitor combination in the gate circuit of the SCR. If the resistors R1, R2, or R3 are changed, the frequency of sound that will trigger the SCR will change.
The isolation transformer is for protection.
Slave Flash Trigger
The SCR is connected across the trigger circuit of the flash gun. In its default state, the SCR remains off, allowing the flash gun to charge to its trigger voltage. A phototransistor, Q1, is utilized to monitor the light level....
Squib-firing circuit
Capacitor C1 is charged to +28 V through resistor R1 and stores energy for firing the squib. A positive pulse of 1 mA applied to the gate of SCR1 will cause it to conduct, discharging C1 into the squib load...

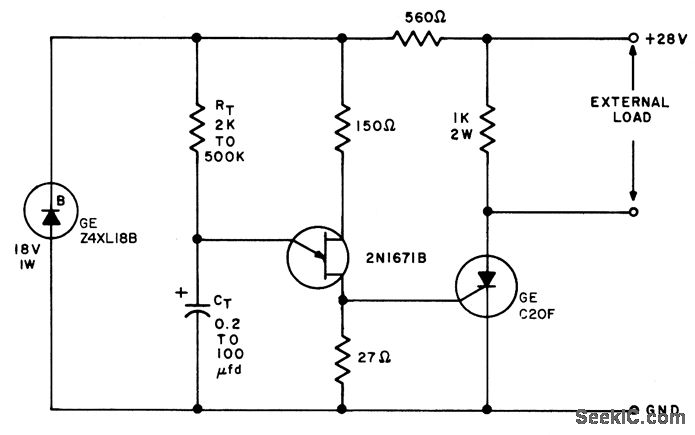

SCR UJI TIME DELAY
The timing interval is initiated by applying power and is determined by the resistor-capacitor (RT-CT) combination. At the end of the interval, a unijunction transistor triggers a silicon controlled rectifier (SCR) to apply nearly the full supply voltage to the...

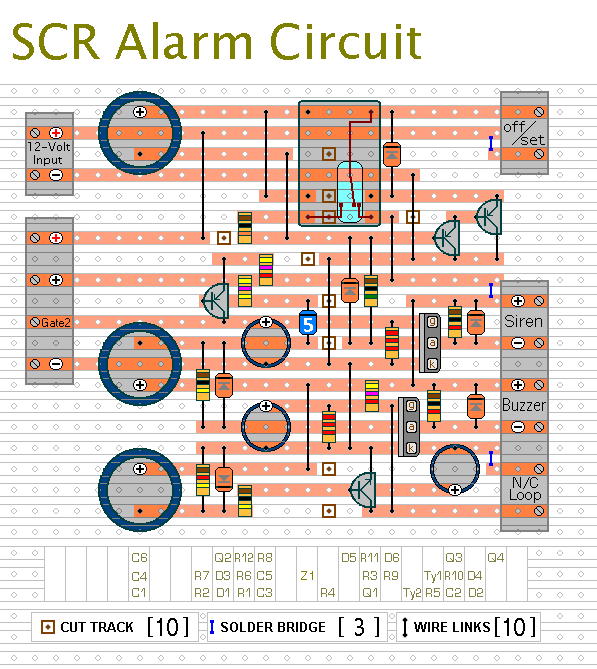

expandable scr based burglar alarm
This is a simple SCR-based burglar alarm circuit. Its features include automatic exit and entry delays, along with a timed bell cut-off and reset. The basic alarm has a single zone, which is adequate for many situations. However, the modular...
Volume Control circuit
Switch S2 is used for increasing and switch S3 is used for decreasing the volume. Similarly, switches S4 and S5 are provided for second channel (right channel) volume control. Also, pin 14 of IC2 can be connected to IC 74193...
How the capacitor works (in a debouncing circuit)
Understand why the LED does not light up, as the capacitor appears to be bypassing the switch. When the capacitor is fully charged, it does not conduct electricity. Although the individual is a beginner, after 20 hours of studying various...
dc power delay based on scr
The circuit diagram presented illustrates a straightforward DC power delay circuit that utilizes a Silicon-Controlled Rectifier (SCR). This circuit is highly versatile and applicable in various scenarios. The operation is uncomplicated: when the input power is supplied, capacitor C2 charges...
Electronic Transformer Coupled Oscillators
The transformer OCL and capacitor C1 create a tank circuit, which is coupled with sufficient turns to drive the grid in the lower left-hand winding. The output circuit is connected through a separate winding. For optimal waveform characteristics in such...
triggering circuit
Simple resistor and diode combinations are used to trigger and control silicon-controlled rectifiers (SCRs) across the full 180-degree electrical range, exhibiting reliable performance at commercial temperatures. These circuits function optimally when SCRs possess relatively high gate sensitivities. In this configuration,...
