Description: A Teledyne TSC7135 digital voltmeter (DVM) chip is utilized to control a multiplexed 5-digit display. To facilitate common cathode drive, a CD4513BE CMOS integrated circuit (IC) functions as a segment driver, with selection controlled by pins 17-20 of the DVM chip. The transistors employed in the circuit can be any compatible NPN type, such as the 2N3904.
The schematic features a Teledyne TSC7135 DVM chip at its core, which is responsible for processing the input voltage and displaying the corresponding numerical value on a 5-digit multiplexed display. This configuration allows for efficient use of display segments, as the DVM chip activates each digit in sequence, reducing the power consumption and enhancing the display's readability.
The CD4513BE CMOS IC serves as a segment driver for the common cathode display. This IC is designed to interface directly with the DVM chip, receiving control signals from pins 17-20. These pins dictate which segments of the display are activated to represent the numerical output from the DVM. The use of a common cathode configuration allows for a simplified driving scheme, where the segments are grounded through the driver IC, enabling easy control of the display.
In terms of transistor selection, any suitable NPN transistor can be utilized, with the 2N3904 being a common choice due to its availability and performance characteristics. These transistors are used to switch the segments on and off, responding to the signals provided by the CD4513BE. Their role is crucial in ensuring that the display operates reliably and accurately reflects the DVM's readings.
Overall, this circuit design effectively integrates the Teledyne TSC7135 DVM chip with a multiplexed display and segment driver, providing a clear and efficient method for displaying voltage measurements while maintaining low power consumption.Here, a Teledyne TSC7135 DVM chip is used to drive a multiplexed 5-digit display. A CD4513BE CMOS IC, for common cathode drive, is used as a segment driver selected by pins 17-20 of the DVM chip. The transistors can be any suitable npn type such as 2N3904, etc.
This circuit utilizes a single integrated circuit (IC) along with a minimal number of external components to display audio levels through ten LEDs. The input voltage range is from 12V to 20V, with a recommendation for 12V. The LM3915 is...
The large-scale LED display system utilizes a line-by-line scanning method and outlines the driving mechanisms to reduce hardware costs. It employs a 1/16 non-interlaced scanning mode, accommodating a total of 16 LED display panels. The schematic diagram of the driver...
In various situations, it is necessary to indicate the amount of battery charge using methods such as LED dot displays or LED bar displays. This circuit utilizes the LM3914 integrated circuit to serve as a battery charge indicator with an...
This project involves a scrolling LED display composed of 64 LEDs arranged in a matrix configuration. The anodes of the LEDs are driven by a driver IC, UDN2981, while the cathodes are controlled using the ULN2803. An Atmega8515 microcontroller is...
This document outlines the theory behind a high-speed control scheme for an LED display screen circuit. The circuit utilizes the MCS51 series microcontroller to manage the LED display. A 62512 random access memory (RAM) is employed for data storage, holding...
The LED car voltmeter comprises a filter circuit, a voltage distribution filter circuit, a voltage amplifier circuit, and an LED display circuit, as illustrated in Figure 7-77. The regulator filter circuit includes a 3-terminal IC (IC1) and a filter capacitor...
The LED car voltmeter comprises a filter circuit, a voltage distribution filter circuit, a voltage amplifier circuit, and an LED display circuit, as illustrated in Figure 7-77. The regulator filter circuit includes a 3-terminal IC (IC1) and a filter capacitor...

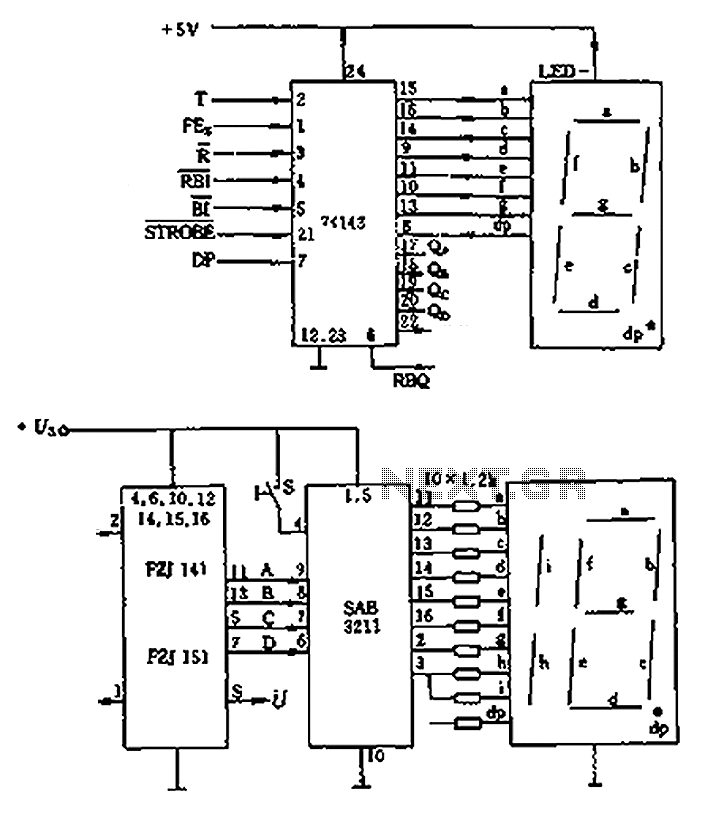

The decimal seven-segment storage decoding drive unit 74HC143 provides a constant output for all segments, each at a voltage of 5V and a current ranging from approximately 15mA to 22mA. The BCD data for the seven-segment decoder can be accessed...

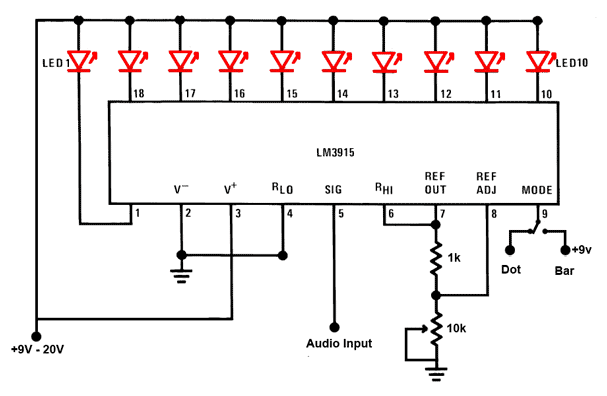

This is a simple audio sound level LED display circuit diagram. The circuit is entirely based on a single integrated circuit, the LM3915 from National Semiconductor. The LM3915 is a monolithic integrated circuit that displays the audio sound level using...
