Description: The water level controller circuit described here controls the water level inside a tank. There are two modes available with this water level controller circuit.
The water level controller circuit is designed to maintain the water level within a specified range in a tank, ensuring efficient operation and preventing overflow or dry running. The circuit typically employs a combination of sensors, control logic, and actuators to achieve this functionality.
The two modes of operation generally include the automatic filling mode and the automatic draining mode. In the automatic filling mode, the circuit activates a pump when the water level falls below a predetermined threshold, allowing the tank to refill. Conversely, in the automatic draining mode, the circuit can activate a drain valve when the water level exceeds a certain limit, enabling the tank to discharge excess water.
The circuit commonly utilizes float switches or capacitive sensors to detect the water level. These sensors provide feedback to a microcontroller or comparator circuit, which processes the input signals and controls the output devices accordingly. For instance, in a basic implementation, when the water level drops, the float switch closes, signaling the microcontroller to turn on the pump. Similarly, when the water level rises, another float switch may open, turning off the pump or activating the drain.
Additional components such as relays or MOSFETs may be incorporated to handle the higher currents required by pumps or valves. Protection features, such as fuses or circuit breakers, are also essential to prevent damage from electrical faults.
Overall, this water level controller circuit is critical in applications where maintaining a specific water level is necessary, such as in aquariums, industrial tanks, and agricultural irrigation systems. By automating the control of water levels, this circuit enhances operational efficiency and reduces the risk of water-related issues.Water level controller circuit described here control the water level inside a tank. There two modes available with this water level controller circuit. The.
This is a water sensor circuit design based on a Conductive Liquid Level Sensor. This single-chip circuit is compact and simple. It is an AC-excited fluid level sensor, which uses alternating current to provide biasing for the sensor probe, avoiding...
This schematic represents a simple water or liquid level sensor relay switch circuit, designed to control electronic appliances based on water levels. The circuit is particularly useful for automatically turning off a water pump when a water tank, pool, or...
When an individual touches the safety box or other protected metal objects, the sensor circuit generates a pulse to the alarm circuit. The positive edge of this pulse activates the semiconductor and thyristor flash GE, subsequently triggering the camera to...
The controller consists of a liquid level sensor, a trigger controller, and a step-down rectifier circuit. The water level detection poles labeled a, b, and c form a bias circuit, functioning as a water level detector with components W1, R1,...

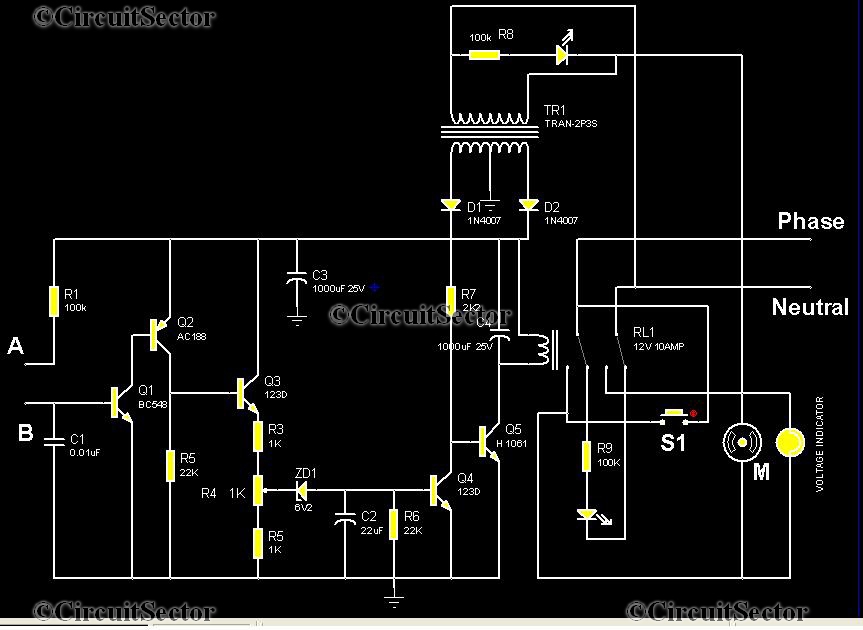

This is an automatic water tank controller designed to manage the operation of a water pump using a 12V 10A relay. When the water level in the tank creates a short circuit between points A and B in the circuit...
The circuit operates by monitoring the water level in a tank. When the water level falls below a specified point (F), the RS flip-flop (F2) is activated, producing a high Q output that energizes a relay to start the water...
A float switch is a device commonly used to measure the depth or level of liquid in a container. When the liquid rises to the level of the float switch, the float rises, transitioning from a vertical to a horizontal...
This device estimates the amount of water remaining in the water tank of a caravan or camping unit.
The water level estimation device utilizes a combination of sensors and microcontroller technology to provide accurate readings of the water level in a...
When the water level is low, the wires in the tank are open-circuited, and the 180K resistor pulls the switch low, resulting in the switch opening and the LEDs turning OFF. As the water begins to fill the tank, the...
