Loudspeaker Protector Circuit
Description: Transistors Q1, Q2, and Q3 monitor the two outputs of the stereo amplifier. If the offsets exceed 2 V, Q7 is turned off, which in turn deactivates Q8 and the normally on relay. Diodes D2 and D5, along with Q4, serve as a mains voltage monitor. When the AC input voltage drops, such as when the amplifier is powered off, Q4 deactivates and Q5 activates. This sequence turns off Q7, Q8, and the relay. Consequently, the loudspeakers are disconnected immediately after the amplifier is turned off.
The circuit employs transistors Q1, Q2, and Q3 for monitoring the output offsets of the stereo amplifier, ensuring that any deviation beyond 2 V triggers a protective response. When the output offsets exceed the specified threshold, Q7 is deactivated. This action leads to the deactivation of Q8, which is connected to a relay that is normally energized. The relay's function is to disconnect the loudspeakers from the amplifier to prevent potential damage from excessive voltage offsets.
Diodes D2 and D5, in conjunction with Q4, act as a mains voltage monitoring system. Their role is critical in detecting the presence of AC voltage. When the amplifier is powered down, the AC input voltage drops, causing Q4 to turn off. This transition activates Q5, which is designed to maintain the protective state by turning off Q7 and Q8, thereby ensuring the relay is also deactivated.
The design emphasizes safety and protection for the loudspeakers, ensuring they are disconnected promptly in the event of power loss or significant output offset. This circuit configuration is vital in maintaining the integrity of audio equipment and preventing damage during operation and shutdown scenarios. Transistors Ql, Q2, and Q3 monitor the two outputs of the stereo amplifier. If the offsets exceed 2 V, Q7 is turned off, which turns off Q8 and the normally on relay. Diodes D2 and D5, together with Q4, provide a mains voltage monitor. As soon as the ac input voltage disappears, as when the amplifier is turned off, Q4 turns off arid Q5 turns on. This turns off Q7, Q8, and the relay. Hence, the loudspeakers axe disconnected immediately after the amplifier is turned off.
The circuit employs transistors Q1, Q2, and Q3 for monitoring the output offsets of the stereo amplifier, ensuring that any deviation beyond 2 V triggers a protective response. When the output offsets exceed the specified threshold, Q7 is deactivated. This action leads to the deactivation of Q8, which is connected to a relay that is normally energized. The relay's function is to disconnect the loudspeakers from the amplifier to prevent potential damage from excessive voltage offsets.
Diodes D2 and D5, in conjunction with Q4, act as a mains voltage monitoring system. Their role is critical in detecting the presence of AC voltage. When the amplifier is powered down, the AC input voltage drops, causing Q4 to turn off. This transition activates Q5, which is designed to maintain the protective state by turning off Q7 and Q8, thereby ensuring the relay is also deactivated.
The design emphasizes safety and protection for the loudspeakers, ensuring they are disconnected promptly in the event of power loss or significant output offset. This circuit configuration is vital in maintaining the integrity of audio equipment and preventing damage during operation and shutdown scenarios. Transistors Ql, Q2, and Q3 monitor the two outputs of the stereo amplifier. If the offsets exceed 2 V, Q7 is turned off, which turns off Q8 and the normally on relay. Diodes D2 and D5, together with Q4, provide a mains voltage monitor. As soon as the ac input voltage disappears, as when the amplifier is turned off, Q4 turns off arid Q5 turns on. This turns off Q7, Q8, and the relay. Hence, the loudspeakers axe disconnected immediately after the amplifier is turned off.
rising pitch siren
A two-transistor electronic siren breadboard circuit that produces an audible rising pitch on a loudspeaker. This circuit serves as a tutorial for beginners in electronics.
The two-transistor siren circuit operates by utilizing the properties of transistors to create an oscillating signal...
transistor ignition shematic 3
A request for assistance has been made regarding the development of a transistor ignition system to replace the point breaker in a motorcycle. The individual has researched extensively online but has not found a simple and effective circuit. The available...
Transistor quality checker with buzzer
The transistor was checked by measuring the resistance between its various pins. Occasionally, issues arise when measuring the resistance between them.
The process of measuring resistance in a transistor is an essential diagnostic technique used to evaluate its functionality. A transistor...
Ac-line-voltage-announcer
The range of this AC voltage monitor is 100 to 140 Vac, with a resolution of 1 V. The speech processor interprets an 8-bit binary input code from an analog-to-digital converter. The processor's pulse-code-modulated output then passes through a filter...
relay interfacing with spartan 3 primer
The Spartan-3 board features external 5V relay interfacing, as depicted in the accompanying figure. The ULN2803 is utilized as a driver for the FPGA I/O lines, with the driver outputs connected to the relay modules. A PTB connector is provided...
20W + 20W stereo amplifier circuit diagram
A 20W + 20W stereo amplifier comprises two independent 20-watt RMS amplifiers configured in a bridge arrangement. The input source is connected to a shunt voltage amplifier through resistors R1, R2, and potentiometer P1. Resistor R1 provides load resistance between...
transistor timer
A single transistor timer circuit tutorial designed for beginners in electronics. This is an easy electronic circuit that can be constructed on a breadboard.
The single transistor timer circuit utilizes a transistor as the primary switching element to create a delay...
Transistor Circuits
It had been a little over a decade since the invention of the transistor when this article appeared in the August 1959 edition of Popular Electronics. Transistors were still a mystery to many, including engineers, technicians, and hobbyists. Author James...
Symmetric Noise Source

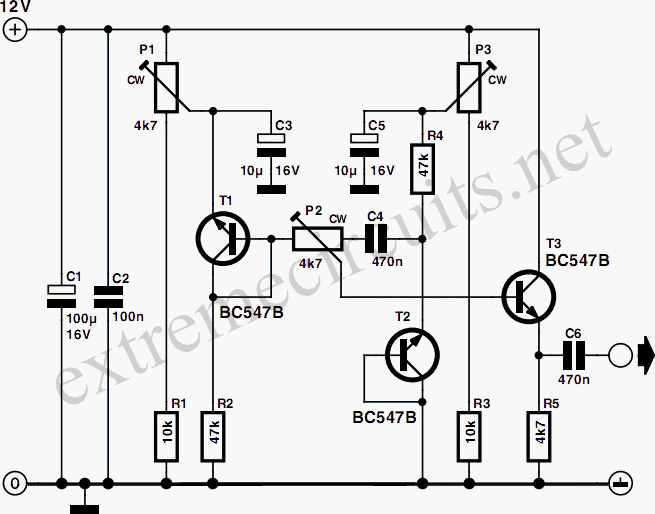

When a transistor junction operates in Zener breakdown as a noise source, the resulting noise signal exhibits asymmetry in amplitude. This issue can be addressed by employing two transistors as independent noise sources. One transistor is connected with a series...
