Homemade subwoofer playback system 01

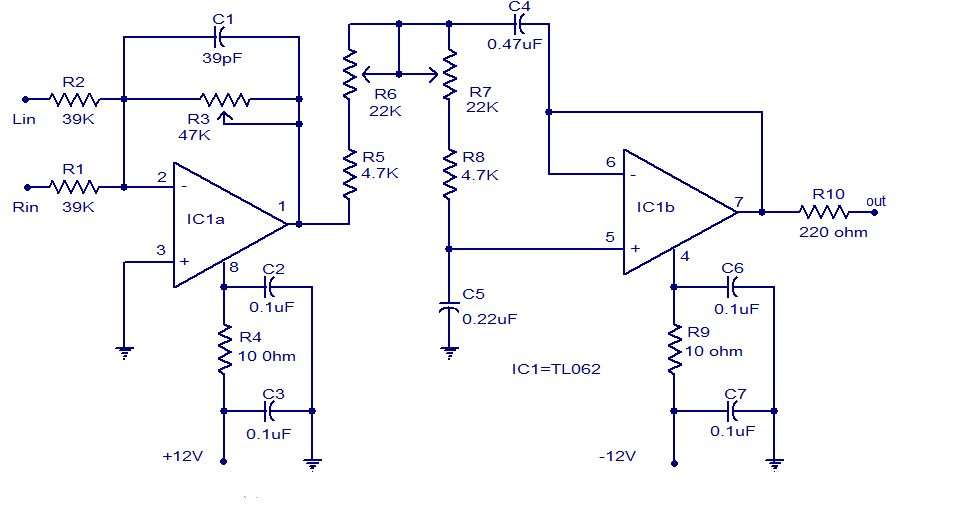

Description: Audio equipment utilizes the left and right channel signal from the former speaker output terminals. The Rl and RZ mixed units are processed through a buffer (IC1a) before passing through a high and low pass filter. The filter employs a JFET input stage low-noise high-impedance operational amplifier (TJ.D82) to form a low-pass filter with a cutoff frequency of approximately 20Hz. This configuration allows the output from buffer IC2b to achieve a band crossover filter characteristic frequency range of 20Hz to 150Hz. The integrated amplifier LM1875 is used for the power amplifier, which includes overheating and overload protection. The amplifier output power is nearly low but sufficient for a subwoofer amplifier with volume adjustment capabilities. This setup specializes in ultra-low frequency signals ranging from 20Hz to 150Hz, compatible with various subwoofer connection types. It is generally accepted that a closed box design provides a better lower limit for bass reproduction compared to an inverted box. However, the inverted box design has strict requirements for the Q value, and any miscalculations during production or commissioning can lead to suboptimal frequency reproduction. Without proper acoustical testing methods, the advantages of the phase-inverted box may remain elusive. Comparatively, the closed box design has stringent Q value requirements, and errors in calculations can significantly impact performance. Smaller boxes tend to exhibit better transient response than inverted boxes. The primary disadvantage of closed boxes is their declining frequency response starting from higher frequencies. However, this shortcoming can be mitigated by the high and low-pass filter, enabling the reproduction of signals from 20Hz to 150Hz, allowing the sealed enclosure to meet or exceed the lower limits of the inverted box. The design includes a 10-inch, 70W speaker with an impedance of 8 ohms, housed in a closed box measuring 510mm x 420mm x 260mm, filled with sound-absorbing material.

The audio equipment circuit described features a robust configuration for managing low-frequency signals, ensuring efficient reproduction of bass sounds. The left and right channel signals are initially processed through a buffer stage, which isolates the input from the output and prevents loading effects that could degrade audio quality. The JFET input stage operational amplifier (TJ.D82) is critical in providing low noise and high input impedance, which is essential for maintaining the integrity of the audio signal.

Following the buffer stage, the signal is subjected to both high-pass and low-pass filtering. The low-pass filter, with a cutoff frequency set at 20Hz, is designed to allow only the desired low-frequency signals to pass through while attenuating higher frequencies. This is particularly important in subwoofer applications where the focus is on deep bass reproduction. The band crossover filter characteristic enables the system to effectively manage the frequency range from 20Hz to 150Hz, optimizing performance for subwoofers.

The integrated amplifier (LM1875) is notable for its built-in protection features, including overheating and overload safeguards. This ensures that the amplifier operates reliably under various conditions, providing consistent performance without the risk of damage. The output power, while described as low, is sufficient for driving a subwoofer, particularly when combined with the adjustable volume control.

The design considerations for the enclosure are also critical. A closed box configuration is employed, which is known for its ability to produce tight and accurate bass response. The dimensions of the enclosure (510mm x 420mm x 260mm) are carefully chosen to complement the 10-inch, 70W speaker with an 8-ohm impedance. The inclusion of sound-absorbing material within the enclosure enhances acoustic performance by reducing internal reflections and standing waves, further improving sound quality.

In summary, the circuit design effectively manages low-frequency audio signals through a combination of buffering, filtering, and amplification, while the enclosure design maximizes the performance of the speaker, ensuring high-quality bass reproduction suitable for various applications. Audio equipment from the former speaker output terminals left and right channel signal, the Rl, RZ mixed units, after ICla buffer into the high and low pass filter. Filter uses JFET input stage low-noise high-impedance op amp TJ.D82 mouth lC lb, etc. form a low-pass filter with a cutoff frequency of 20Hz o so that the output of the buffer IC2b obtained Figure 9-23 as band crossing pass filter characteristic frequency range of 20Hz ~ 150Hz female power amplifier having overheating, overload protection integrated amplifier LM1875 two form BTI. Amplifier output power nearly loow, capable enough power subwoofer amplifier o RP for the subwoofer volume adjustment.

This special zoom 20Hz ~ 15 0Hz PA ultra-low frequency signal, with any connection type subwoofer. It is generally believed that the inverter box closed box than the lower limit of the bass reproduction, but in actual production t inverted relative to the Q value box speaker has very strict requirements; calculation, production, commissioning slightly wrong, it would lower frequency reproduction not up to the requirements. Without the necessary acoustical testing methods Amateur conditions, the advantages of the phase inverted box actually elusive 6 Relatively speaking, closed box strict requirements for Q value, which is calculated, affecting production, commissioning error on performance than down with smaller boxes, and transient response should be better than inverter box.

The disadvantage of the closed box manifested primarily in their frequency response from a higher frequency began to decline, but this shortcoming just 9-23 available in high and low-pass filter to compensate for only reproducing 20Hz ~}} 5 0Hz signal, you can replay the sealed tank reaches or exceeds the lower limit of inverter box level. Where the election by 10 inches, 70W-made speakers, the impedance of 8n, force closed box size 510mm 420mm 260mm, sound-absorbing material infill.
