Cuckoo-song Generator
#sound generator
#cuckoo song
#audio amplifier
#door-bell
#sound effects
#two-tone
#loudspeaker
#external amplifier
Description: Agreeable, very close sound imitation Suitable for sound effects, door-bells etc. This circuit generates a two-tone effect very much alike the cuckoo song. It can be used for door-bells or other purposes thanks to a built-in audio amplifier and loudspeaker. Used as a sound effect generator it can be connected to external amplifiers, tape recorders etc. In this case, the built-in audio amplifier and loudspeaker may be omitted and the output taken across C8 and ground. More: There are two options: free running, when SW1 is left open, and one-shot, when SW1 is closed. In this case, a two-tone cuckoo song will be generated at each P1 pressing. Circuit operation: IC1 is wired as a square wave generator and produces both tones.
The described circuit functions as a sound effect generator, specifically designed to replicate a two-tone sound similar to that of a cuckoo. It is suitable for various applications, including doorbells and sound effects in electronic devices. The circuit features an integrated audio amplifier and loudspeaker, allowing for direct sound output.
For enhanced versatility, the output can be configured to connect to external audio systems such as amplifiers or tape recorders. In such cases, the built-in audio amplifier and loudspeaker can be bypassed, with the audio output accessed at the junction of capacitor C8 and ground.
Operational modes of the circuit are determined by the state of switch SW1. When SW1 is open, the circuit operates in a free-running mode, continuously generating the two-tone effect. Conversely, closing SW1 activates a one-shot mode, whereby the two-tone cuckoo sound is triggered each time pushbutton P1 is pressed.
The heart of the circuit is integrated circuit IC1, which is configured as a square wave generator. This IC generates the two distinct tones that characterize the cuckoo sound. By adjusting component values associated with IC1, such as resistors and capacitors, the frequency and duration of the output tones can be fine-tuned to achieve the desired sound characteristics.
Overall, this circuit provides a compact and efficient solution for generating sound effects, offering flexibility in both standalone and integrated applications.Agreeable, very close sound imitation Suitable for sound effects, door-bells etc. This circuit generates a two-tone effect very much alike the cuckoo song. It can be used for door-bells or other purposes thanks to a built-in audio amplifier and loudspeaker Used as a sound effect generator it can be connected to external amplifiers, tape recorders etc. In this case, the built-in audio amplifier and loudspeaker may be omitted and the output taken across C8 and ground.
There are two options: free running, when SW1 is left open, and one-shot, when SW1 is closed. In this case a two-tone cuckoo song will be generated at each P1 pressing. Circuit operation: IC1 is wired as a square wave generator and produces both tones
The described circuit functions as a sound effect generator, specifically designed to replicate a two-tone sound similar to that of a cuckoo. It is suitable for various applications, including doorbells and sound effects in electronic devices. The circuit features an integrated audio amplifier and loudspeaker, allowing for direct sound output.
For enhanced versatility, the output can be configured to connect to external audio systems such as amplifiers or tape recorders. In such cases, the built-in audio amplifier and loudspeaker can be bypassed, with the audio output accessed at the junction of capacitor C8 and ground.
Operational modes of the circuit are determined by the state of switch SW1. When SW1 is open, the circuit operates in a free-running mode, continuously generating the two-tone effect. Conversely, closing SW1 activates a one-shot mode, whereby the two-tone cuckoo sound is triggered each time pushbutton P1 is pressed.
The heart of the circuit is integrated circuit IC1, which is configured as a square wave generator. This IC generates the two distinct tones that characterize the cuckoo sound. By adjusting component values associated with IC1, such as resistors and capacitors, the frequency and duration of the output tones can be fine-tuned to achieve the desired sound characteristics.
Overall, this circuit provides a compact and efficient solution for generating sound effects, offering flexibility in both standalone and integrated applications.Agreeable, very close sound imitation Suitable for sound effects, door-bells etc. This circuit generates a two-tone effect very much alike the cuckoo song. It can be used for door-bells or other purposes thanks to a built-in audio amplifier and loudspeaker Used as a sound effect generator it can be connected to external amplifiers, tape recorders etc. In this case, the built-in audio amplifier and loudspeaker may be omitted and the output taken across C8 and ground.
There are two options: free running, when SW1 is left open, and one-shot, when SW1 is closed. In this case a two-tone cuckoo song will be generated at each P1 pressing. Circuit operation: IC1 is wired as a square wave generator and produces both tones
30 watt audio amplifier
A 30 Watt audio amplifier circuit utilizing the TDA2040 is illustrated here. The TDA2040 is a class AB monolithic integrated audio amplifier available in a Pentawatt package. This integrated circuit features low harmonic distortion, minimal crossover distortion, and includes built-in...
TDA7384 class AB Audio Power Amplifier circuit design electronic project
The input capacitor is used for low-frequency cut-off, with a standard value of 0.1 µF, resulting in a cut-off frequency of approximately 16 Hz.
The input capacitor plays a critical role in electronic circuits, particularly in signal processing and audio applications....
soldano slo preamp
The AC load comprises a 2.2M resistor in parallel with a 330k resistor and the output impedance Zo of the normal channel's second stage. For audio frequencies, the output impedance is 74k plus the impedance of a 120pF capacitor in...
2 x 220W RMS Audio Amplifier
This amplifier is of such high quality that it would be an understatement to call it a HIFI amplifier. According to HIFI-confirmed-Finland, the frequency response must be direct and distortion <1% 20-20 kHz. Our power amplifier circuit meets the above requirements for bandwidth 5Hz - 500 kHz, however, the frequency band is limited to prevent interference. The amplifier meets the requirements for a reference amplifier, which is suitable for measurement and comparison operations. Small 12-24V voltage system amplifiers operating in the power and properties are somewhat modest, for instance, testing decent speakers. The amplifier is also suitable for demanding PA use.
When music occurs at shallow close 20Hz sound levels, the whole amplifier power reserve may need to be temporarily used. This happens especially when the low-frequency emphasis equalizer or amplifier is used, for example, TV. Watching a movie with lots of sound effects, if the power is not enough in that situation, the sound from the speakers is distorted, reducing the enjoyment of hearing or even damaging the speaker drivers.
The distortion of human hearing range is only about 20 Hz-20 kHz. The hi-fi speaker gamut extends at its best to 25kHz and the hearing area of bats "remains" at 150 kHz, so what are the practical benefits of the amplifier's superior frequency characteristics? The power of less than 1% distortion mentioned in the title 220W blue means the so-called total maximum amount of distortion. This includes TIM distortion (Transient intermodulation) as well as IM-distortion (intermodulation-distortion). TIM distortion occurs in connection with high-speed percussion sounds, such as the sound of dishes on drums. If the amplifier's share of this distortion is high, the amplifier will not be able to play the sound clean, but the sound will be distorted.
The higher the frequencies the amplifier is capable of playing, the less is TIM distortion. If the amplifier would be able to repeat 600 kHz, distortion would not occur at all. IM distortion means that the amplifier generates excess denominated, the so-called undesirable ghost signals. For example, fed in to 19 kHz. And 20 kHz, consists of the difference between 1kHz. Safety Because this amplifier has AC parts, its construction is permitted only in the technical work of teachers. Even in this case, the device should be checked by experts before connecting it to the network. Although the equipment has been revised, it is worth remembering that even the only speaker outputs may at best affect almost 70V the effective voltage.
Therefore, caution is necessary during building and operation. For instance, the speaker terminals should be protected against contact. Building instructions and testing of the amplifier circuit board components will be worth and an amplifier solder test in three stages: 1) The components of the power side, and all the cables signal cables except installed 2) any other circuit board components plus not only hybrid circuit STK 4231 3) STK 4231 placed and cooled, and the input signals the wires connected.
Installation of the power-side components and testing should be done carefully. The transformer wires insulation must first be removed carefully or checked that this has already been done. Then the transformer conductors order is checked on the transformer side.
The circuit board parts include STK4231II Hybrid, Led green, resistors of different values, ceramic and plastic capacitors, a rectifier, fuse holders and fuses, a coil, line voltage parts, potentiometer, RCA connectors, speaker output screws, and a cooling unit.
Mini-box 2W Amplifier
This amplifier was designed to be self-contained in a small loudspeaker box. It can be fed by Walkman, Mini-Disc, iPod, CD players, computers, and similar devices fitted with line or headphone output. Of course, in most cases, you will have...
The use of monolithic power IC 6 to W audio power amplifier
A closed-loop amplification circuit is designed to achieve a magnification of 100 times (40 dB). To ensure stable operation, particularly with high input signals, a variable resistor (VRi) is incorporated in the secondary circuit for attenuation. The feedback resistor is...

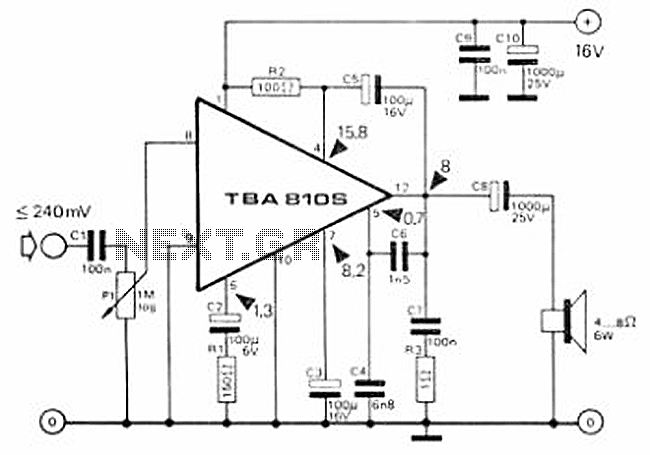

TBA810 - 7 Watt Audio Amplifier Circuit
