Description: Audio Light Modulator. Audio light modulation enhances the enjoyment of music during events held at home or outdoors. Presented here is a straightforward circuit for this purpose.
The audio light modulator circuit is designed to synchronize light effects with audio signals, creating a dynamic visual experience that complements music playback. This circuit typically utilizes a microphone or audio input to detect sound levels, which are then processed to control the brightness and color of connected lights, such as LEDs or incandescent bulbs.
The essential components of this circuit include a microphone or audio input stage, an amplifier, a rectifier, and a light control output. The microphone captures ambient sound, converting it into an electrical signal. This signal is then amplified to ensure that it is strong enough for further processing. The rectifier converts the AC signal from the audio source into a DC signal, which is necessary for controlling the light output.
A key feature of the audio light modulator is the use of a transistor or a triac, which acts as a switch to control the power delivered to the light source. By adjusting the duty cycle based on the audio signal's amplitude, the circuit can vary the light intensity in real-time, creating a pulsing effect that corresponds to the rhythm and dynamics of the music.
In summary, the audio light modulator circuit provides an engaging way to enhance musical experiences by integrating visual elements. Its simplicity makes it accessible for hobbyists and can be easily adapted for various applications, including parties, concerts, and home entertainment systems.Audio Light Modulator. Audio light modulations add to the enjoyment of music during functions organised at home or outdoors. Presented here is one such simple circuit in which.
If you plan to use this circuit with a 110V 60Hz supply instead of a 230V 50Hz supply, or if you intend to modify this circuit, please refer to the section titled "Common Questions about this Circuit" found below the...
Several individuals have requested clarification on calculating resistor values for a triac circuit. This information may be beneficial for adapting the Sous Vader for custom builds. The circuit in question involves the resistor values R1 and R2 in an optoisolator,...

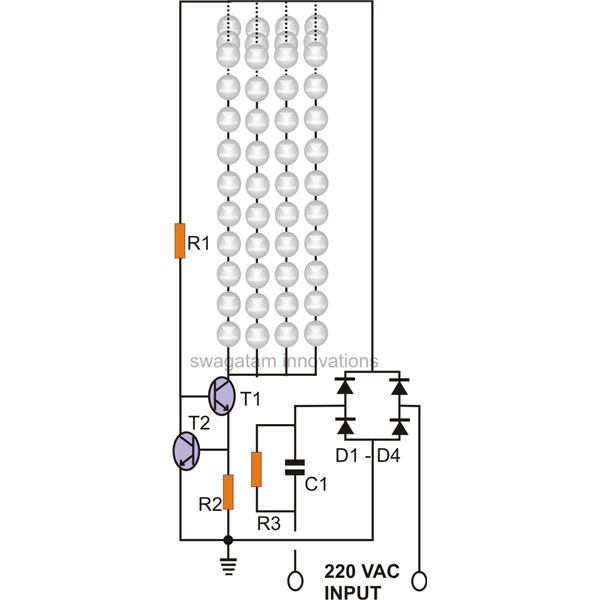

The circuit of a current-controlled LED tube light employs high-voltage transistors to implement the necessary current control operation based on a fundamental principle. A resistor (R2) is utilized to convert the increasing current into a voltage across itself. This voltage...
Most PC enclosures provide only a single LED to indicate hard disk access, with the LED being connected to the motherboard via a two-pin connector. However, this LED only works with IDE drives, and if a SCSI disk controller is...
The Spartan-3E board features four LEDs connected to FPGA I/O pins, as detailed in the accompanying table. Each LED's cathode is connected to ground through a 330-ohm resistor. To illuminate a specific LED, the corresponding FPGA control signal must be...
This simple flash is very compact to build in such a brooch. I have the circuit extracted from a CD cover. The flash uses a 1.5 V supply, this is a penlight or a button cell to use. Capacitor C1...
The circuit utilizes a 555 timer configured as a multivibrator, where the oscillation frequency is determined by resistors R1, R2, and capacitor C1. The frequency formula is given by fo = 1.443 / ((R1 + R2) * C1). The output...
This circuit will flash a bright LED 5000mcd as an intention getting device or fake car alarm. More: Component values are not critical and different transistors may be used.
This circuit functions as a visual alert system by utilizing a high-brightness...
The term "mixed-signal" typically refers to circuits and integrated circuits (ICs) that process both analog and digital signals. In this context, the designation "A mixed-signal LED clock" may be somewhat misleading, as this is a fully digital clock. However, the...
