9 LED VU meter
Description: This simple and easy to make circuit is a 5 LED VU Meter based on LB1409 IC from SANYO, which will indicates the volume level of the audio signal it senses. SUPPLY 12V DC @ 50mA. PR1 REF SET. PR2 AUDIO LEVEL SET
The circuit described is a 5 LED VU Meter utilizing the LB1409 integrated circuit from SANYO, designed to visually represent the amplitude of an audio signal. The circuit operates with a supply voltage of 12V DC and consumes approximately 50mA of current.
The LB1409 IC serves as the core component, which processes the incoming audio signal and drives the LEDs accordingly. The circuit includes two potentiometers: PR1, which is used to set the reference level, and PR2, which adjusts the sensitivity of the audio input.
When an audio signal is applied, the LB1409 analyzes the signal's amplitude and activates the corresponding number of LEDs based on the detected volume level. The first LED lights up at the lowest volume threshold, with each subsequent LED illuminating as the volume increases, providing a clear visual indication of the audio level.
To construct this circuit, the following components are necessary:
- LB1409 IC
- Five LEDs (preferably of the same color for uniformity)
- Two potentiometers (PR1 and PR2)
- Resistors to limit the current through the LEDs
- A power supply capable of providing 12V DC
- Additional passive components such as capacitors for smoothing and filtering the audio signal as needed.
The layout should ensure that the audio input is connected to the appropriate pins of the LB1409, and the output pins are connected to each of the LEDs through current-limiting resistors. Proper grounding and decoupling capacitors should be placed near the power supply pins of the IC to ensure stable operation.
This circuit can be used in various audio applications, including amplifiers and mixers, to provide a visual representation of audio levels, aiding in sound engineering and mixing tasks.This simple and easy to make circuit is a 5 LED VU Meter based on LB1409 IC from SANYO, which will indicates the volume level of the audio signal it senses. SUPPLY 12V DC @ 50mA. PR1 REF SET. PR2 AUDIO LEVEL SET
The circuit described is a 5 LED VU Meter utilizing the LB1409 integrated circuit from SANYO, designed to visually represent the amplitude of an audio signal. The circuit operates with a supply voltage of 12V DC and consumes approximately 50mA of current.
The LB1409 IC serves as the core component, which processes the incoming audio signal and drives the LEDs accordingly. The circuit includes two potentiometers: PR1, which is used to set the reference level, and PR2, which adjusts the sensitivity of the audio input.
When an audio signal is applied, the LB1409 analyzes the signal's amplitude and activates the corresponding number of LEDs based on the detected volume level. The first LED lights up at the lowest volume threshold, with each subsequent LED illuminating as the volume increases, providing a clear visual indication of the audio level.
To construct this circuit, the following components are necessary:
- LB1409 IC
- Five LEDs (preferably of the same color for uniformity)
- Two potentiometers (PR1 and PR2)
- Resistors to limit the current through the LEDs
- A power supply capable of providing 12V DC
- Additional passive components such as capacitors for smoothing and filtering the audio signal as needed.
The layout should ensure that the audio input is connected to the appropriate pins of the LB1409, and the output pins are connected to each of the LEDs through current-limiting resistors. Proper grounding and decoupling capacitors should be placed near the power supply pins of the IC to ensure stable operation.
This circuit can be used in various audio applications, including amplifiers and mixers, to provide a visual representation of audio levels, aiding in sound engineering and mixing tasks.This simple and easy to make circuit is a 5 LED VU Meter based on LB1409 IC from SANYO, which will indicates the volume level of the audio signal it senses. SUPPLY 12V DC @ 50mA. PR1 REF SET. PR2 AUDIO LEVEL SET
Fading Leds Circuit
This circuit operates two LED strips in pulsing mode, where one LED strip transitions from an off state to gradually lighting up, then dimming, while the other LED strip performs the opposite action. Each strip can consist of 2 to...
Regulated LED Lamp
The LM317L and resistor act as a current regulator set to 40ma. Current flows from the battery through one pair of LEDs, through the regulator, through the other pair of LEDs, and back to the battery. The capacitor filters out...
light up pumpkin

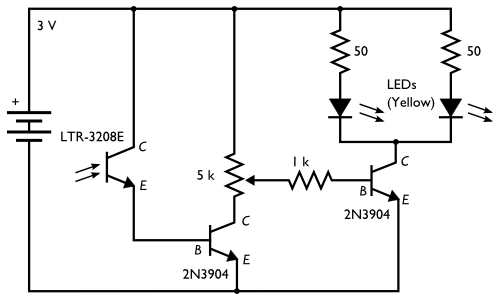

The concept involves placing a pair of yellow LEDs inside a pumpkin, combined with a photo sensor that activates the lights at night. The circuit is simple, utilizing minimal components. Two schematics are provided on the project site, with a...
How does LED Flashes One by One in my Project Some Queries
A project called LED Flasher that sequentially flashes LEDs one by one. There is a query regarding the project, and any simple explanation would be greatly appreciated. A reference image or a link can be used for additional context.
The LED...
Automobile White LED Light

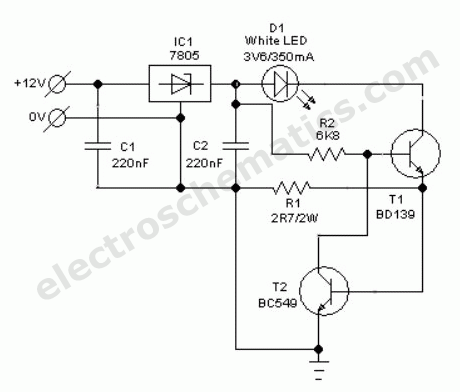

Without a dedicated buck converter or white LED driver IC, it is possible to safely drive multiple standard high-efficiency white LED modules using available battery power.
To design a circuit capable of driving high-efficiency white LED modules without a dedicated buck...
UV/IR/Visible LED Flashlight with Intensity Control

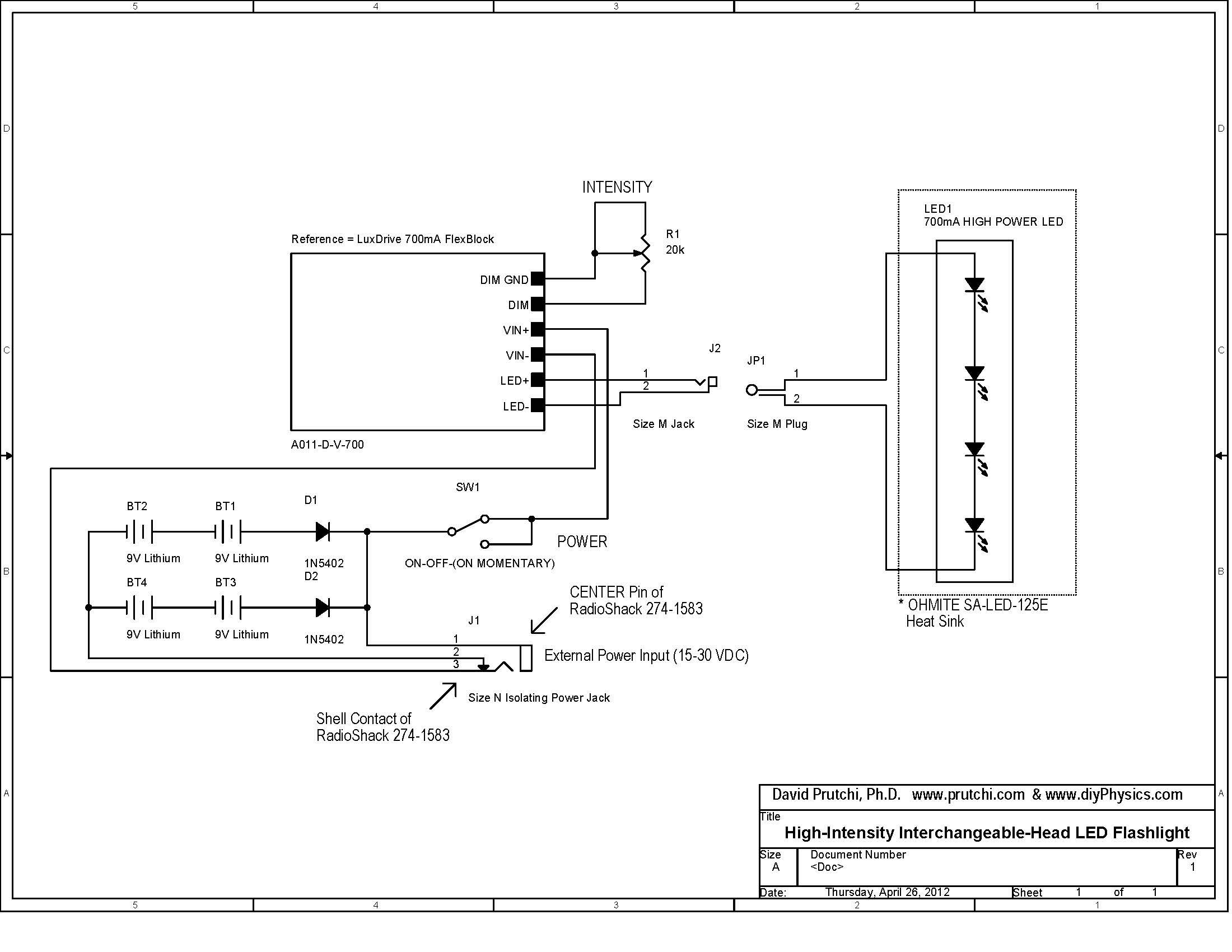

Build a 10W LED flashlight that features swappable UV, IR, and visible light heads. This flashlight is designed to complement a photographer's toolkit for applications such as light painting, infrared illumination, UV-reflected photography, or UV fluorescence photography. The flashlight utilizes...
low volt led flasher schematics

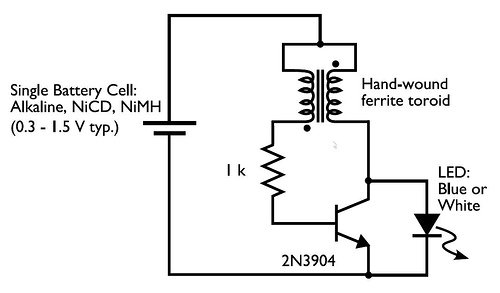

In the circuit diagram for the Joule Thief, the common point of the toroid is the connection at the top of the hand-wound ferrite toroid, located in the upper right of the diagram. This connection leads to the positive terminal...
12vdc 220vac inverter

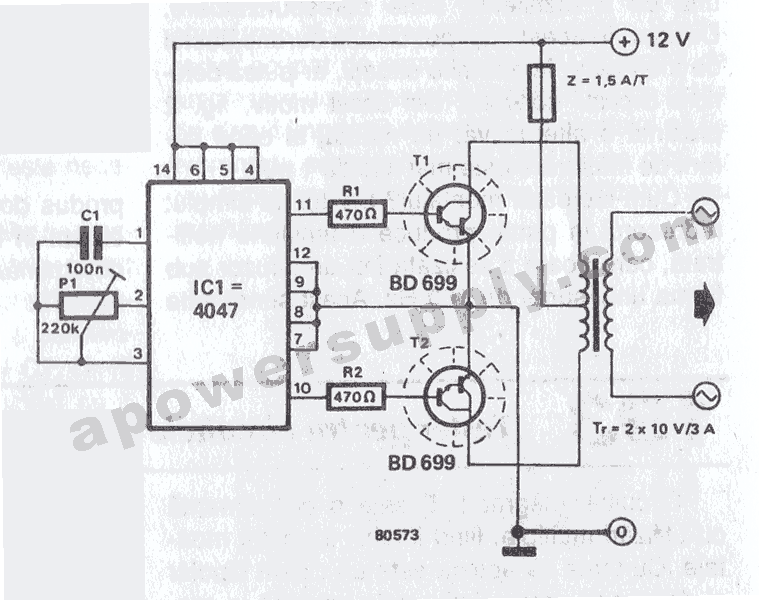

This circuit inverter converts a 12V DC battery to 220V AC, serving as a replacement for home energy. The inverter can power small electronic devices such as lamps, radios, phone chargers, and disc players. The central component of the inverter...
