CSC231 Homework

Description: A diagram is requested to illustrate all hardware components used in a project and their connections. The diagram should depict the Arduino board as a box with lines indicating connections, arrows showing signal direction (inputs or outputs), and pin numbers. Resistors, switches, and other components should be clearly labeled with their values and part numbers, if available. Several examples have been provided, highlighting strengths and weaknesses. These examples serve as guidelines for generating the project diagrams and schematics. Questions are encouraged, and a review appointment is suggested to ensure the diagram meets safety standards for the Arduino. Approval will allow for wiring and focus on programming.

The schematic diagram for the project should include a clear representation of the Arduino board, typically depicted as a rectangular box. Input and output connections will be illustrated with lines extending from the board, with arrows denoting the direction of signal flow. Each line should be labeled with the corresponding pin numbers, ensuring clarity in the connections.

All components should be represented accurately, including resistors, switches, LEDs, and any other necessary parts. Resistors should be marked with their resistance values, such as 220Ω or 10kΩ, along with their part numbers if applicable. Switches should be indicated with their type (e.g., SPST, SPDT) and ratings, ensuring that the specifications are clear for assembly.

The diagram should also include power connections, indicating where the Arduino receives voltage, typically from a USB connection or an external power supply, as well as ground connections. It is essential to represent the flow of current accurately, ensuring that all components are connected in a way that prevents short circuits or overloads.

In addition to the schematic, it is advisable to provide a bill of materials (BOM) that lists all components with their specifications, including part numbers, values, and quantities. This will facilitate procurement and assembly, ensuring that all necessary components are available for the project.

Following the completion of the schematic, it is critical to review the design for safety and functionality. This review process is essential to confirm that the diagram adheres to best practices in electronics and is suitable for use with the Arduino. Once the design is approved, the focus can shift to the wiring and programming aspects of the project, enabling a smooth transition from design to implementation.I would like you to generate a diagram showing all the hardware parts you will be using for your project, and how they are connected to each other. This diagram should clearly show the Arduino board as a box with lines going in and out of it, with arrows indicating whether the signals are inputs or outputs, and the pin numbers.

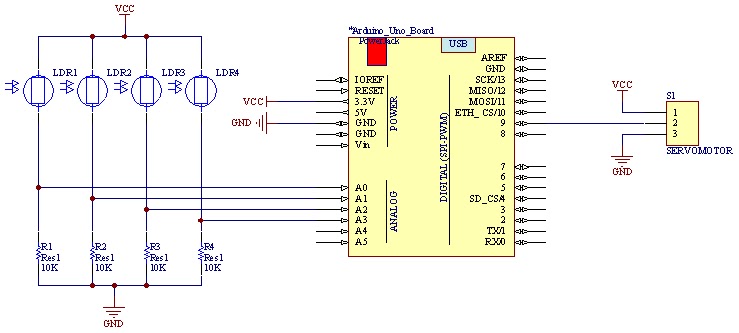

Resistors, switches and other parts should be clearly indicated, with their values and part numbers if you have them. Below are several examples, some fancier than others. I have added comments to highlight what is good and what is missing. Use them as guidelines to generate your project diagram/schematics. You will have questions and I do not expect you to know electronics, so do stop by my office or make an appointment to review your diagram. Once I am satisfied that your diagram is safe for the Arduino, you will have the go ahead (as soon as you get the parts) to wire it up and start concentrating on the programming side of the project.
