arduino LCD
Description: This tutorial demonstrates how to connect an LCD display to an Arduino and test it. It provides a step-by-step guide for beginners on using a breadboard to establish the connection.
To connect an LCD display to an Arduino, first gather the necessary components: an Arduino board (such as the Arduino Uno), a 16x2 LCD display, a breadboard, jumper wires, and a potentiometer (optional for contrast adjustment).
Begin by placing the LCD display on the breadboard. The typical 16x2 LCD has 16 pins, with the following relevant connections:
1. **Pin 1 (VSS)**: Connect to the ground (GND) of the Arduino.
2. **Pin 2 (VDD)**: Connect to the 5V power supply from the Arduino.
3. **Pin 3 (VO)**: Connect to the middle pin of a potentiometer (if used for contrast adjustment), with the other two pins connected to 5V and GND respectively. If a potentiometer is not used, this pin can be connected directly to ground for minimal contrast.
4. **Pin 4 (RS)**: This pin is for the register select. Connect it to a digital pin on the Arduino, commonly pin 12.
5. **Pin 5 (RW)**: Connect this pin to ground to set the LCD in write mode.
6. **Pin 6 (E)**: This is the enable pin. Connect it to another digital pin on the Arduino, typically pin 11.
7. **Pins 7-14 (D0-D7)**: These are the data pins. For a 4-bit mode, connect pins D4-D7 (pins 12-15) to digital pins on the Arduino (for example, pins 5, 4, 3, and 2).
8. **Pin 15 (LED+)**: Connect to 5V for the backlight.
9. **Pin 16 (LED-)**: Connect to ground.
After establishing the connections, upload a simple test sketch to the Arduino to initialize the LCD and display a message. The `LiquidCrystal` library is commonly used for this purpose. The code will set up the LCD dimensions, specify the pins used, and include commands to print text to the display.
Once the code is uploaded, power the Arduino, and the LCD should display the specified message, confirming that the connection is successful. This procedure provides a foundational understanding of interfacing an LCD with an Arduino, which can be expanded upon with more complex functionalities in future projects.How to connect a LCD display to an Arduino and test it. This tutorial shows beginners how to use a breadboard to connect an LCD display to an Arduno, step by step..
To connect an LCD display to an Arduino, first gather the necessary components: an Arduino board (such as the Arduino Uno), a 16x2 LCD display, a breadboard, jumper wires, and a potentiometer (optional for contrast adjustment).
Begin by placing the LCD display on the breadboard. The typical 16x2 LCD has 16 pins, with the following relevant connections:
1. **Pin 1 (VSS)**: Connect to the ground (GND) of the Arduino.
2. **Pin 2 (VDD)**: Connect to the 5V power supply from the Arduino.
3. **Pin 3 (VO)**: Connect to the middle pin of a potentiometer (if used for contrast adjustment), with the other two pins connected to 5V and GND respectively. If a potentiometer is not used, this pin can be connected directly to ground for minimal contrast.
4. **Pin 4 (RS)**: This pin is for the register select. Connect it to a digital pin on the Arduino, commonly pin 12.
5. **Pin 5 (RW)**: Connect this pin to ground to set the LCD in write mode.
6. **Pin 6 (E)**: This is the enable pin. Connect it to another digital pin on the Arduino, typically pin 11.
7. **Pins 7-14 (D0-D7)**: These are the data pins. For a 4-bit mode, connect pins D4-D7 (pins 12-15) to digital pins on the Arduino (for example, pins 5, 4, 3, and 2).
8. **Pin 15 (LED+)**: Connect to 5V for the backlight.
9. **Pin 16 (LED-)**: Connect to ground.
After establishing the connections, upload a simple test sketch to the Arduino to initialize the LCD and display a message. The `LiquidCrystal` library is commonly used for this purpose. The code will set up the LCD dimensions, specify the pins used, and include commands to print text to the display.
Once the code is uploaded, power the Arduino, and the LCD should display the specified message, confirming that the connection is successful. This procedure provides a foundational understanding of interfacing an LCD with an Arduino, which can be expanded upon with more complex functionalities in future projects.How to connect a LCD display to an Arduino and test it. This tutorial shows beginners how to use a breadboard to connect an LCD display to an Arduno, step by step..
Load Cell with an Arduino
A system has been developed that employs eight air-clamping cylinders (McMaster-Carr 62185K64) to apply pressure on a glass piece, sealing it to a sidewall. However, the glass has cracked multiple times, prompting the need for a cost-effective method to measure...
Water Level Sensor with Arduino Ethernet
This project implements a network-connected water level sensor that measures the water level in the sump pit of a house. It is connected to the home network and reports the water level by broadcasting UDP packets, allowing any computer to...
adding audio to arduino projects
A simple solution for enhancing sound output from a microcontroller is the LM386 series of amplifier chips, which provide high-quality audio for under one dollar. These chips can be used to create a functional MP3 docking station and serve as...
credit card sized Ethernet Arduino compatable controller board
The Arduino is a simple and accessible controller platform suitable for various projects. A few months ago, an Ethernet shield was purchased for it.
The Arduino platform is widely recognized for its user-friendly interface and versatility, making it a popular choice...
Remote-controlled fiber-optic Ceiling Light with Arduino
A wooden table features numerous holes of varying diameters designed to accommodate optical fibers. Due to the size of the ceiling lamp (90 cm x 60 cm), it was not feasible to utilize a single bundle of fibers, resulting in...
My Arduino In Circuit Programmer
This Lazy Old Geek is also an Arduino enthusiast. One of the common microcontrollers used by Arduinos is the Atmega328 chip. To utilize Arduino software, the Atmega must be equipped with bootloader software. There is a notable difference between the...
Boot Cloner
The boot-cloner is a program compiled and burned using the Arduino IDE that copies part of its flash memory onto another microcontroller. The bootloader can be written to a new microcontroller by the Arduino, eliminating the need for a separate...
Arduino Liquid Crystal Displays
A tutorial on LCD communication was planned for a later date due to high demand. A circuit was already assembled for testing a new LCD provided by element14. The tutorial explains how communication functions with modern LCD character displays, showcasing...

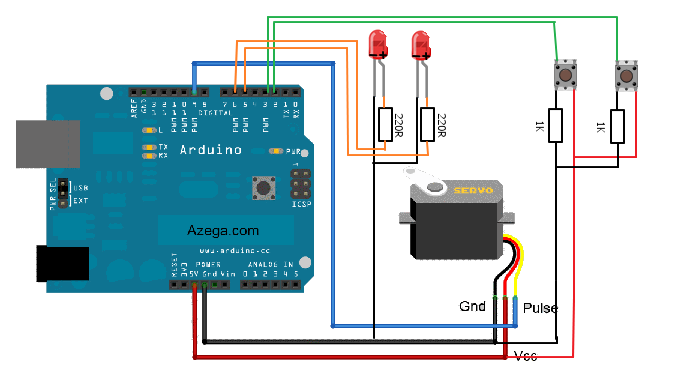

Arduino How to control a Servo
