OPA604 High Performance and Small Power Audio Amplifier
Description: The provided image depicts a high-performance and low-power audio power amplifier circuit. The initial stage utilizes the MOSFET hi-fi operational amplifier OPA604, while the subsequent stage employs the high-speed buffer BUF634. Voltage series negative feedback is implemented between the two amplifier stages. The voltage gain of this circuit is determined by two resistors (5kΩ and 250Ω) in the feedback branch, resulting in a gain of approximately 21 times. BUF634 is characterized as a high-speed buffer, with a simplified internal structure illustrated in figure (b).
The audio power amplifier circuit is designed to achieve high fidelity while maintaining low power consumption. The OPA604 operational amplifier serves as the first amplification stage, providing low noise and high output quality. Its characteristics make it suitable for audio applications where signal integrity is paramount. The use of a MOSFET configuration allows for better performance at higher frequencies and improved linearity.
The second stage of amplification is realized using the BUF634 buffer. This component is specifically designed to drive capacitive loads and provides a high current output, which is essential for driving speakers or other low-impedance loads. The BUF634's internal architecture includes a series of transistors configured to enhance speed and reduce distortion, ensuring that the amplified signal retains its fidelity.
The voltage gain of the circuit is crucial for determining the output signal level relative to the input. The feedback network, composed of the 5kΩ and 250Ω resistors, establishes a gain of approximately 21 times, calculated using the formula for non-inverting amplifiers. This gain is suitable for many audio applications, providing sufficient amplification without introducing excessive noise or distortion.
The implementation of voltage series negative feedback between the two amplifier stages is significant for stability and linearity. By feeding a portion of the output back to the input, the circuit can reduce distortion and improve overall performance. This feedback mechanism ensures that the amplifier operates within its optimal range, enhancing sound quality.

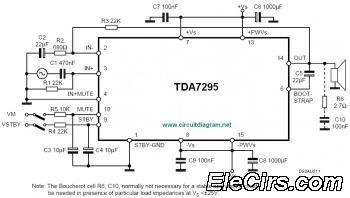

The IC TDA7295 is a monolithic integrated circuit designed for use as an audio class AB amplifier in high-fidelity applications, including home theaters and high-end televisions.
The TDA7295 is a versatile audio amplifier that delivers high-quality sound reproduction, making it suitable...

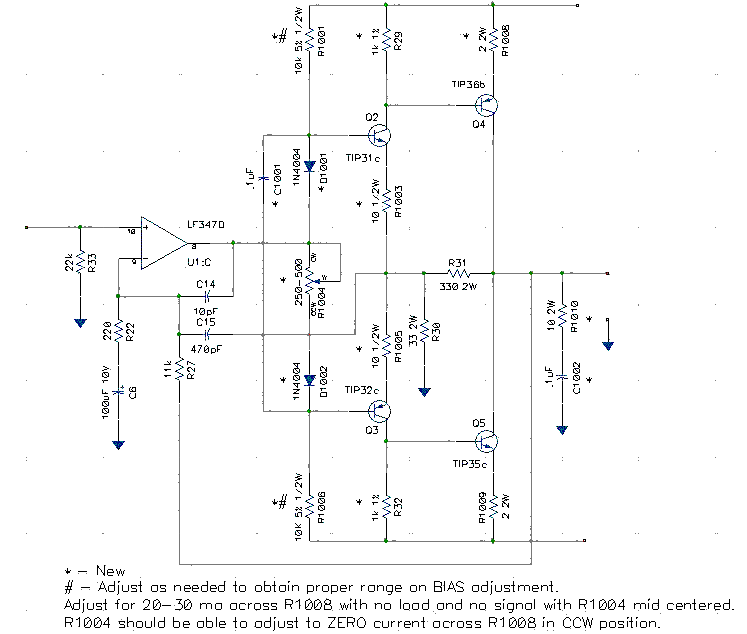

The JBL "Bass Wave" amplifier is a compact 100-watt amplifier featuring a built-in active filter that includes a single-pole high-pass filter at 10 Hz and a single-pole low-pass filter at 85 Hz. Priced at an affordable $50 USD, it offers...
The provided description refers to a very simple audio preamp, indicating that all components required for its construction are readily available at any local electronics shop.
The audio preamp in question is presumably designed to amplify weak electrical signals coming from...
During the recent audio hackers meetup at Hacker Dojo, discussions were held with Laura and Kevin regarding the challenges faced in creating a small local network referred to as "JamLan." There was mention of the consideration to develop a straightforward...
The amplifier's gain is nominally 20 dB. Its frequency response is primarily influenced by the values of a few components, mainly C1 and R1. The schematic diagram's component values yield a frequency response of ±3.0 dB from approximately 120 Hz...
This circuit indicates audio output power using three LEDs. It serves as a useful addition to an amplifier.
The audio output power indicator circuit is designed to visually represent the power level of an audio amplifier through the use of three...
The internal mute circuit and pre-set gain resistors provide a cost-effective design solution. Output power specifications at both 20V and 24V supplies, along with a low external component count, offer significant value to consumer electronic manufacturers for stereo TV and...

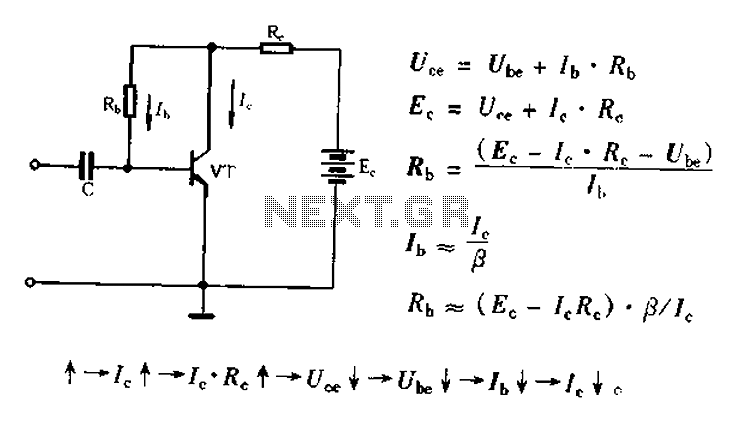

Bias voltage negative feedback circuit
The bias voltage negative feedback circuit is a crucial component in various electronic applications, particularly in amplifiers and oscillators. This circuit is designed to stabilize the operating point of a transistor or operational amplifier by providing...
To achieve optimal audio reproduction at varying listening levels, it is essential to adjust tone control settings to align with the established characteristics of human auditory perception. The sensitivity of the human ear changes non-linearly across the entire audible frequency...
