Description: A section of the operational amplifier's output signal is rectified using 1N4148 diodes, followed by filtering, and is then directed to the gate of the FET input shunting circuit. As the output voltage increases, additional input shunting occurs, which means a greater portion of the input signal is bypassed, thereby maintaining a constant output level. The output level can be adjusted from less than unity to nearly the gain of the amplifier, making the circuit suitable for various applications.
The described circuit utilizes operational amplifiers (op-amps) in conjunction with 1N4148 diodes to create a feedback mechanism that stabilizes the output voltage. The rectification process performed by the diodes converts the AC component of the op-amp's output into a DC signal, which is then smoothed by a filtering stage. This filtered signal is crucial as it controls the gate of a Field Effect Transistor (FET), which acts as a variable resistor in the input path.
The FET input shunting circuit is designed to dynamically adjust the amount of input signal that is allowed to pass through to the output. As the output voltage from the op-amp increases, the control voltage at the gate of the FET also increases, leading to a greater shunting effect. This effectively reduces the amplitude of the input signal that reaches the op-amp, thereby regulating the output voltage to a desired level.
The flexibility of the circuit is highlighted by its ability to set the output level across a range from less than unity gain up to almost the full gain of the amplifier. This feature enables the circuit to be applied in various contexts, such as in automatic gain control systems, signal conditioning applications, or other scenarios where maintaining a stable output level is critical. The integration of the op-amp with the FET shunting mechanism provides a robust solution for managing signal levels in electronic systems.A portion of the op amp`s output signal is rectified by the 1N4148 diodes, then filtered and fed to the gate of the FET input shunting circuit. As the output rises, more and more input shunting takes place. That is, more of the input signal is bypassed, effectively keeping the output level constant. The output output level itself can be set from l ess than unity all the way up to nearly the gain of the amplifier, making the circuit usable in other applications as well.
Q1 and Q2 form a simple, high-speed FET input buffer. Q1 operates as a source follower, while Q2 serves as a current source load that sets the drain-source channel current. The LT1010 buffer provides the necessary output drive capability for...
This pre-amplifier can be driven directly from the DAC.
The described pre-amplifier is designed to interface directly with a Digital-to-Analog Converter (DAC). This direct connection allows for efficient signal amplification without the need for additional intermediary components, thereby simplifying the overall...
The SIMD1 V3 is very similar to the NPN flavor of SIMD1 V2, but with the addition of a FET on the output line. This makes life easier for its attached load (since there's no need here for something that...

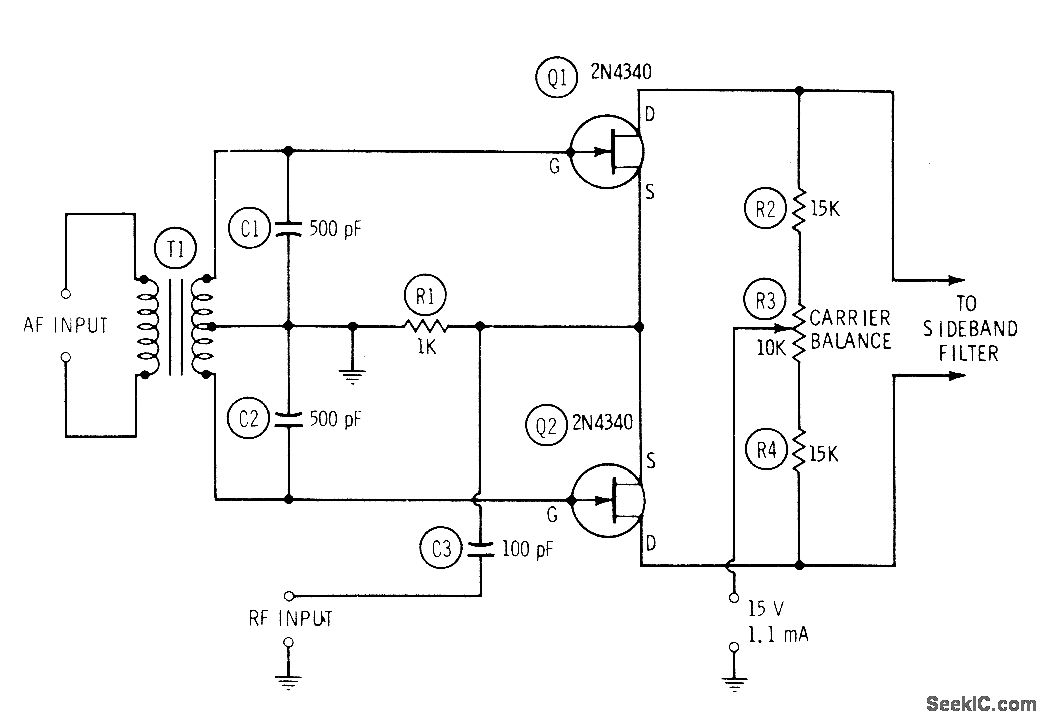

An audio frequency (AF) modulating signal is applied to the gates of matched field-effect transistors (FETs) configured in a push-pull arrangement via transformer T1, which features an accurately center-tapped secondary winding. The radio frequency (RF) carrier is simultaneously fed to...
This transmitter utilizes a 741 operational amplifier as a high-gain audio amplifier, which is activated by a microphone. The output of the 741 is connected to Q1, functioning as the driver for an LED. Potentiometer R1 serves as the gain...
The lower FET operates in common source mode, while the upper FET operates in common gate mode, achieving full high-frequency gain. The bottom FET is tunable, allowing for peak adjustment for a particular station. Coil details follow:
The described circuit employs...

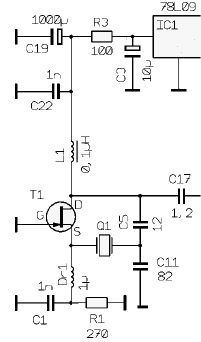

A 430 MHz transmitter for microwave applications is being constructed, but there is an issue with obtaining any output frequency from the circuit.
The construction of a 430 MHz transmitter for microwave applications involves several critical components and considerations to ensure...

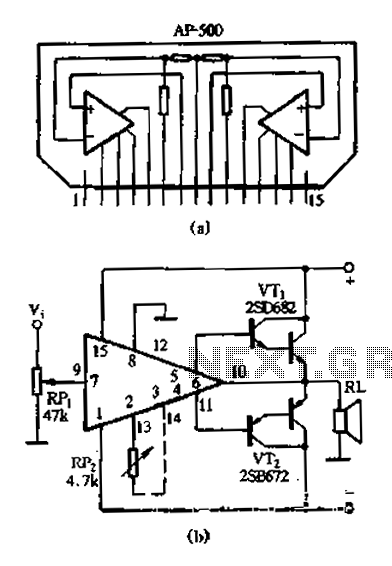

The AP500 is a high-performance dual-channel FET DC amplifier driver module designed for high operating voltage applications. It features push power, low distortion, a wide frequency response, and a simple external circuit. Utilizing superior resistance characteristics in audio circuits, the...
The 100k potentiometers adjust the voltage levels reaching the operational amplifiers (Op Amps). A dual ganged 100K-Ohm audio-taper potentiometer is preferred over a linear taper potentiometer. In some instances, this component may be referred to as a ganged stereo taper....
