40W audio amplifier using TDA2030
Description: This amp delivers a lot of power and uses 1 IC and two power transistors. The circuit consists of an amplifier IC (a TDA 2030A) and a power stage consists of two transistors. The amplifier can be powered with an asymmetric voltage of 12-44 V. More: Parts List R1-R3, R7 = 100 kOhm R6 = 8.2 kOhm R4, R5, R8, R9 = 1.40 ? 1% R10 = 1 ? C1 = 470 nF C2 = 10 V ?F/63 C3 = 4.7 V ?F/63 C4, C5, C7 = 220 nF C6 = 2200 V ?F/50 C8 = 1000 V ?F/50 D1, D2 = 1N4001 T1 = BD712 and BD912 T2 = BD711 and BD911 IC1 = TDA2030A LS = speaker - 4 / 8 ? cooling = Fisher SK08/75
The described audio amplifier circuit utilizes a TDA2030A integrated circuit as its core amplification component. This IC is known for its ability to deliver substantial output power while maintaining low distortion, making it suitable for various audio applications. The circuit is designed to operate with an asymmetric power supply voltage ranging from 12V to 44V, allowing flexibility in power source selection.
The power stage of the amplifier incorporates two pairs of transistors, specifically the BD712 and BD912 for one half of the output stage, and BD711 and BD911 for the complementary side. These transistors are configured to enhance the output current capability of the amplifier, enabling it to drive speakers with impedances of 4 to 8 ohms effectively.
The components listed in the parts list play critical roles in the circuit's operation. Resistors R1, R2, R3, and R7, all rated at 100 kOhm, are likely utilized for biasing and feedback purposes. R6, with a resistance of 8.2 kOhm, may be part of a feedback loop or used for input impedance matching. The resistors R4, R5, R8, and R9, each rated at 1.40 ohms with a tolerance of 1%, are likely used in the output stage to limit current and protect the transistors from excessive load.
Capacitors C1 through C8 serve various functions including coupling, decoupling, and filtering. C1, a 470 nF capacitor, is likely used for signal coupling, while C2 (10 µF/63V) and C3 (4.7 µF/63V) may be used for power supply decoupling, ensuring stable operation by filtering out high-frequency noise. Capacitors C4, C5, and C7 (220 nF) are typically used for bypassing or coupling, while C6 (2200 µF/50V) and C8 (1000 µF/50V) provide bulk capacitance to stabilize the power supply rail.
Diodes D1 and D2 (1N4001) are used for protection, likely to prevent back EMF from damaging the transistors. The cooling requirements of the circuit are addressed by a Fisher SK08/75 heatsink, which is essential for dissipating heat generated by the power transistors during operation, ensuring reliability and longevity of the amplifier.
Overall, this circuit design demonstrates a well-thought-out approach to audio amplification, combining a robust integrated circuit with complementary transistors to achieve a powerful and efficient audio output.This amp delivers a lot of power and uses 1 IC and two power transistors. The circuit consists of an amplifier IC (a TDA 2030A) and a power stage consists of two transistors. The amplifier can be powered with an asymmetric voltage of 12-44 V. Parts List R1-R3, R7 = 100 kOhm R6 = 8.2 kOhm R4, R5, R8, R9 = 1.40 ? 1% R10 = 1 ? C1 = 470 nF C2 = 10 V ?F/63 C3 = 4.7 V ?F/63 C4, C5, C7 = 220 nF C6 = 2200 V ?F/50 C8 = 1000 V ?F/50 D1, D2 = 1N4001 T1 = BD712 and BD912 T2 = BD711 and BD911 IC1 = TDA2030A LS = speaker - 4 / 8 ? cooling = Fisher SK08/75
The described audio amplifier circuit utilizes a TDA2030A integrated circuit as its core amplification component. This IC is known for its ability to deliver substantial output power while maintaining low distortion, making it suitable for various audio applications. The circuit is designed to operate with an asymmetric power supply voltage ranging from 12V to 44V, allowing flexibility in power source selection.
The power stage of the amplifier incorporates two pairs of transistors, specifically the BD712 and BD912 for one half of the output stage, and BD711 and BD911 for the complementary side. These transistors are configured to enhance the output current capability of the amplifier, enabling it to drive speakers with impedances of 4 to 8 ohms effectively.
The components listed in the parts list play critical roles in the circuit's operation. Resistors R1, R2, R3, and R7, all rated at 100 kOhm, are likely utilized for biasing and feedback purposes. R6, with a resistance of 8.2 kOhm, may be part of a feedback loop or used for input impedance matching. The resistors R4, R5, R8, and R9, each rated at 1.40 ohms with a tolerance of 1%, are likely used in the output stage to limit current and protect the transistors from excessive load.
Capacitors C1 through C8 serve various functions including coupling, decoupling, and filtering. C1, a 470 nF capacitor, is likely used for signal coupling, while C2 (10 µF/63V) and C3 (4.7 µF/63V) may be used for power supply decoupling, ensuring stable operation by filtering out high-frequency noise. Capacitors C4, C5, and C7 (220 nF) are typically used for bypassing or coupling, while C6 (2200 µF/50V) and C8 (1000 µF/50V) provide bulk capacitance to stabilize the power supply rail.
Diodes D1 and D2 (1N4001) are used for protection, likely to prevent back EMF from damaging the transistors. The cooling requirements of the circuit are addressed by a Fisher SK08/75 heatsink, which is essential for dissipating heat generated by the power transistors during operation, ensuring reliability and longevity of the amplifier.
Overall, this circuit design demonstrates a well-thought-out approach to audio amplification, combining a robust integrated circuit with complementary transistors to achieve a powerful and efficient audio output.This amp delivers a lot of power and uses 1 IC and two power transistors. The circuit consists of an amplifier IC (a TDA 2030A) and a power stage consists of two transistors. The amplifier can be powered with an asymmetric voltage of 12-44 V. Parts List R1-R3, R7 = 100 kOhm R6 = 8.2 kOhm R4, R5, R8, R9 = 1.40 ? 1% R10 = 1 ? C1 = 470 nF C2 = 10 V ?F/63 C3 = 4.7 V ?F/63 C4, C5, C7 = 220 nF C6 = 2200 V ?F/50 C8 = 1000 V ?F/50 D1, D2 = 1N4001 T1 = BD712 and BD912 T2 = BD711 and BD911 IC1 = TDA2030A LS = speaker - 4 / 8 ? cooling = Fisher SK08/75
Audio Amplifiers
The first choice is usually an integrated circuit designed for the purpose. A typical assortment can be seen on this National Semiconductor page. Discrete designs can also be built with readily available transistors or op-amps, and many designs are featured...
RC Audio Oscillator
This document presents the design of an audio oscillator that operates at approximately 1 kHz. The circuit is likely sourced from EMFRD, as Wes's book contains a wealth of valuable circuits. This versatile oscillator serves as a signal source for...
Bypassing tone controls from Dyna Pas preamp

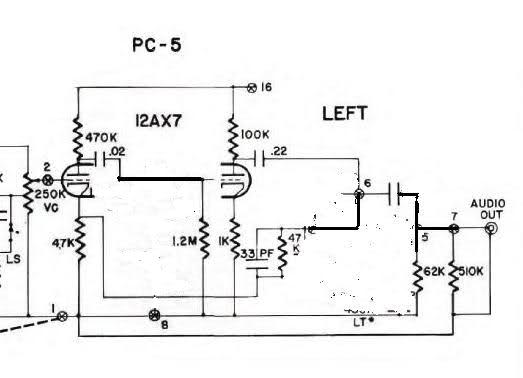

Inquiring about a simple method to bypass the tone controls in the preamplifier, with the understanding that a feedback circuit may be involved, leading to uncertainty.
To bypass the tone controls in a preamplifier, one common method is to modify the...
200 Watt audio power amplifier
Here I propose a project of an AB class power amplifier, at its simplest, assembled with common components (not very expensive), based on traditional diagrams: a symmetrical differential input stage, a cascode stage driver, and a MOSFET output stage. The...
Classroom Microphone System Circuit

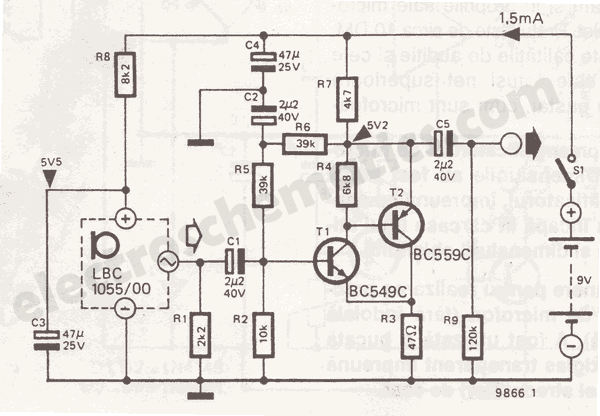

This audio amplifier circuit is designed for use in classrooms to alleviate the strain of lecturing in noisy environments. It incorporates the power amplifier IC LM380, which delivers an output of 2 watts, adequate for confined spaces. The amplifier is...
4 X 15 Watt power amplifier

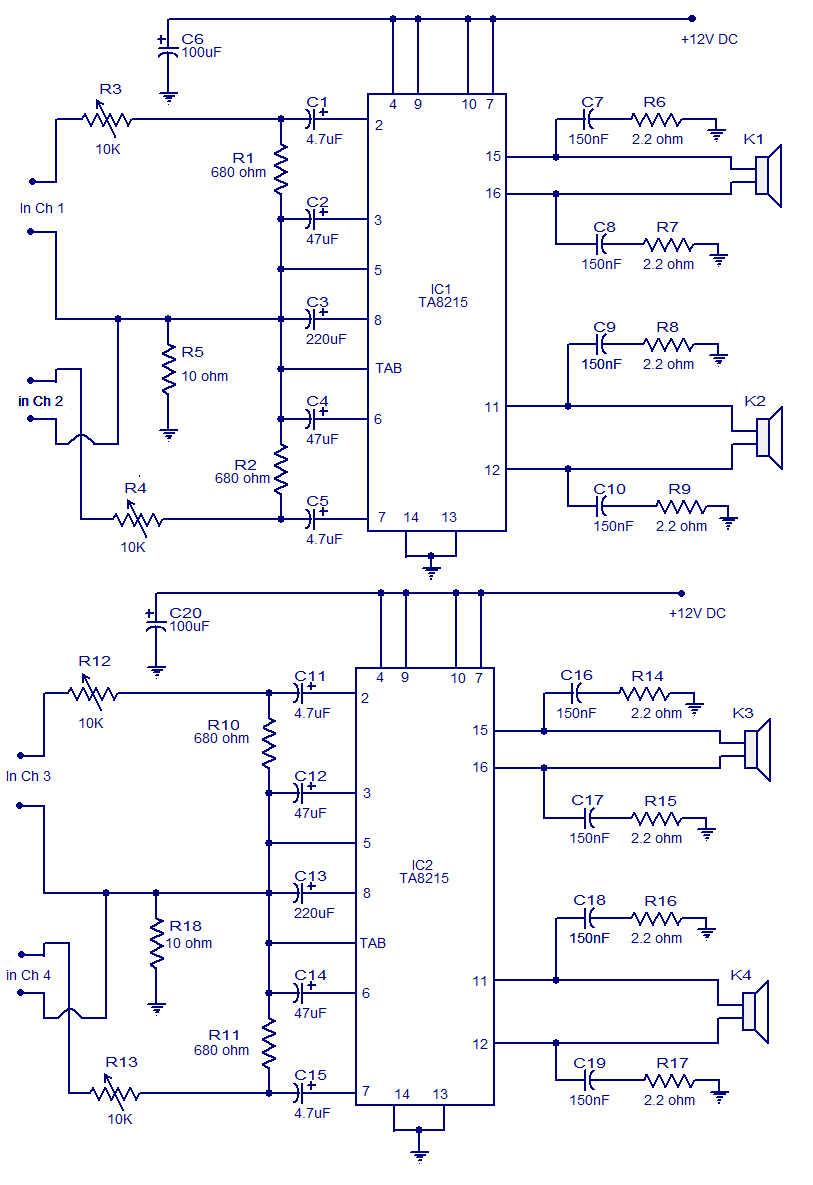

Many electronic circuits related to audio amplifiers have been published. This particular circuit is unique as it is a four-channel amplifier. Each channel can deliver an output of 15 watts into a 4-ohm speaker. The amplifier operates from a single...
40 Watt Audio power Amplifier LM3876
This Circuit is based on the LM3876. A 11-pin plastic package IC with high performance audio power amplifier, an output mute function which can be used to eliminate switch-on and switch-off "thumps" to the loudspeaker load. It is capable of...
12W Audio Power Amplifier

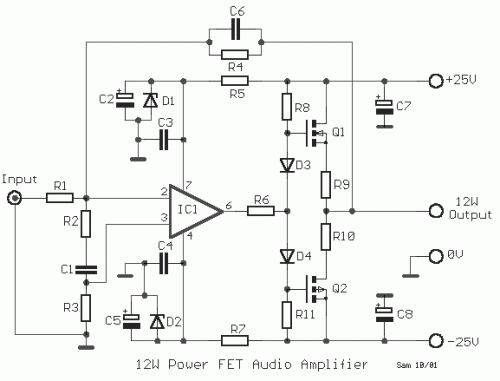

12W Audio Power Amplifier Circuit Diagram. Features: small power amplifier, excellent sound quality, incorporates a fully integrated design.
